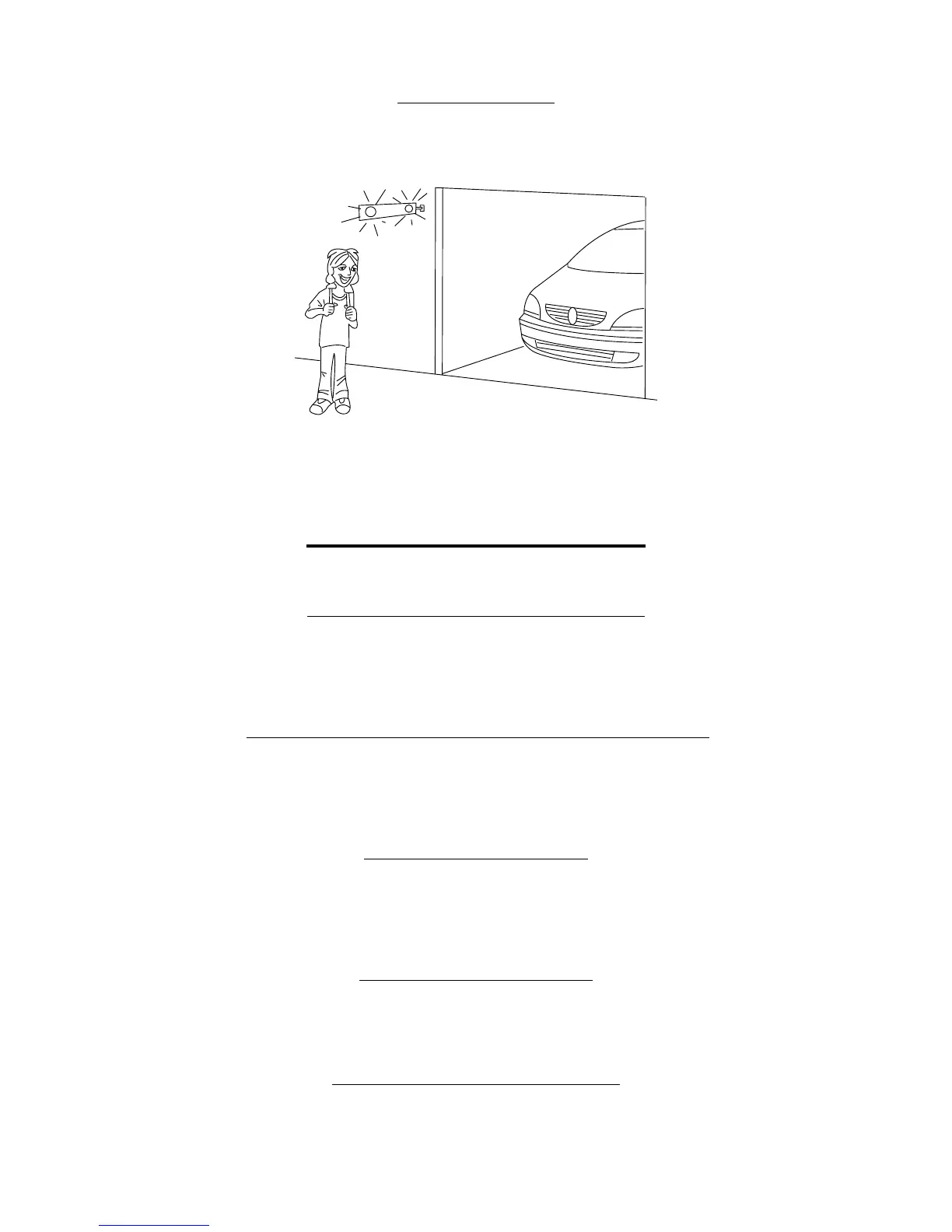

23.2 - Flashing lights
Alert the pedestrian exit or driveway in a particular location.
The ag comes into operation when the gate is activated to open and o so that it is fully closed and o (this accessory not included).
24 - EVENT / FAILURE INDICATION
24.1 - Microcontroller functioning indication
The main function of the 'OSC' LED is to indicate if the board's microcontroller is properly running (it blinks with a stable frequency
(~1Hz), since it is connected to a power supply).
24.2 – Indication of over current or short circuit on the motor
'OSC' rapidly blinks in 0.1-second intervals, to warn that the capacitors have been disarmed due to over current or short circuit on the
motor. The board can normally run 10 seconds after the over current.
24.3 – Overheating indication
'FC' LED rapidly blinks in 100-millisecond intervals to warn that the capacitors have been disarmed due to heat sink or environment
overheating. The operator can only work again if the temperature decreases to less than 100ºC.
24.4 – EEPROM fault indication
'OSC' LED blinks twice when there is no memory inserted.
24.5 – EEPROM invalid data indication
'OSC' LED blinks three times when there is an available memory, but it has a content that the microcontroller does not identify as a Valid
Transmitter Code.
