The perfect operation of this equipment depends on the instructions in this manual. To x the equipment, follow these steps:

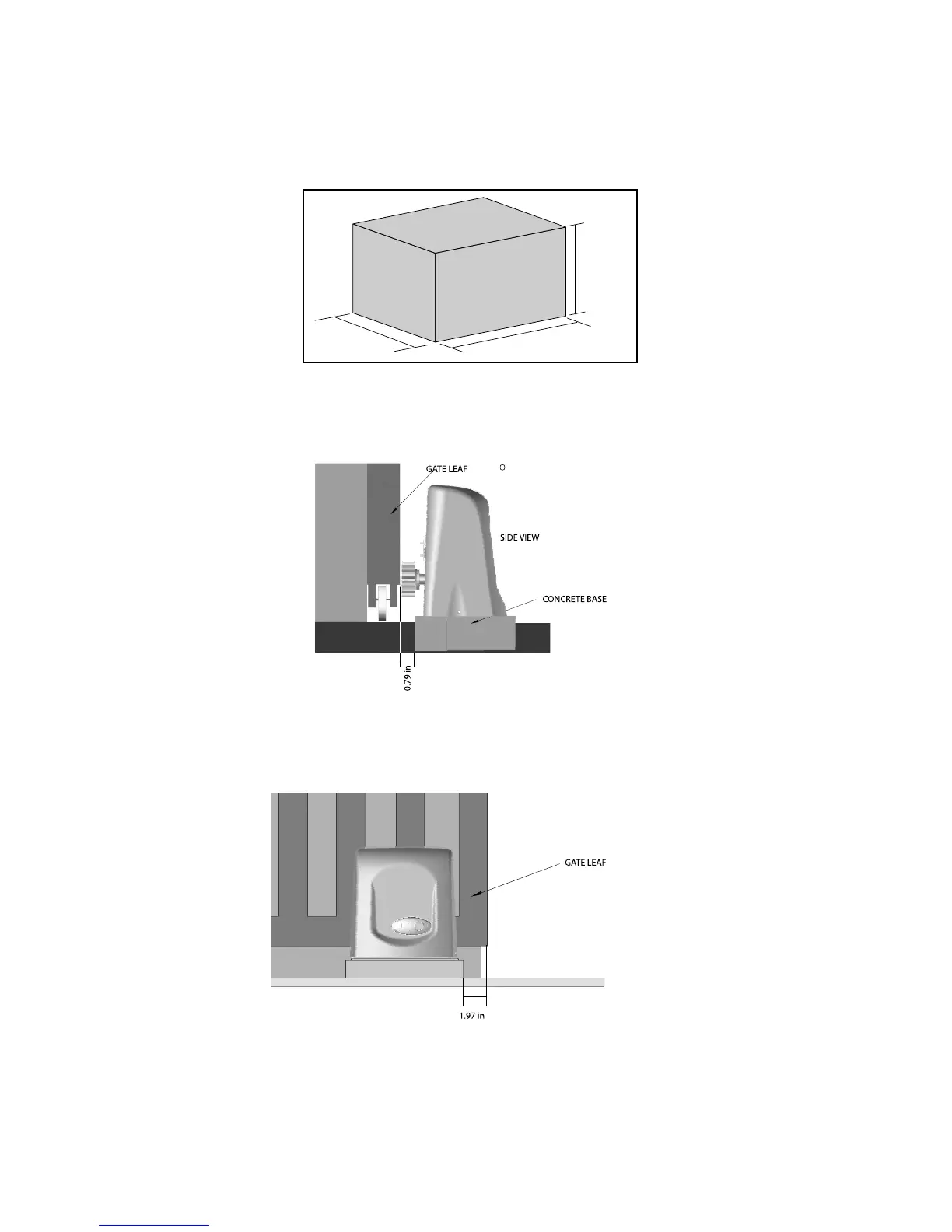

Step 1: Make sure the oor is rm enough so it can be screwed the equipment so that it is on the level. If it not meet the requirement,
provide a concrete pad, following the guidelines below:
Step 2: The dimensions of the concrete pad shall be appropriate for the operator dimensions. The concrete pad shall be at a distance
of approximately 0.79 inches from the face of gate leaf.
Step 3: After meeting the conditions, open completely the gate and position the operator near the face of the gate leaf, following the
measure of 1.97 inches between the end of the gate leaf and operator.
9.84 in
11.81 in
5.90 in
