2261V102-UK 11
3
tAR - Taring
When submenu 5.1 has been selected for {tLO or tHI}, activating the
3 key for
more than 2 s will tare the input value to the value it had
when activated. The input span is not affected but is kept relative to the new
offset value.
1.0 In - SETTING OF INPUT SPAN
1.1 InL - Setting of 0% input value
Valid selections are -40...100 mV.
1.2 InH - Setting of 100% input value
Valid selections are -40...100 mV.
1.3 InO - Setting of overrange
The analogue output follows the set input span on a linear basis {1.1 - InL
and 1.2 - InH} with a limit at 20.5 mA (normally approx. 103% input span).
When the input signal is < or > the set input span, the display will track
this and show -xx or xxx% until the input begins to limit.
The overrange is set in % of the input span and guaran tees that the input
does not begin to limit within the percentage overrange, neither below
nor above the set input span, provided that the input span ± overrange is
within the signal range -40 to 100 mV.
Setting the overrange does not affect the analogue output.
If the overrange measure ment is to be included in the analogue output
signal, the output signal for the set input span must be selected to
provide room for the overrange within the signal range of the output
(0...20 mA / 0...10 VDC).
0.0

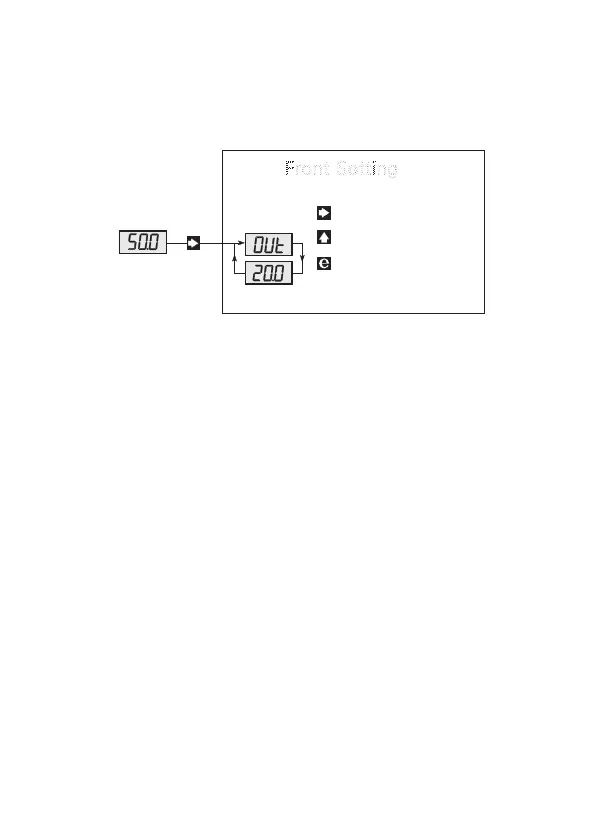

5.2 EFS/dFS - enable / disable front setting
Front Setting
Downcount ramp
Store and exit front setting
Upcount ramp
