10 2261V102-UK
5.15.0

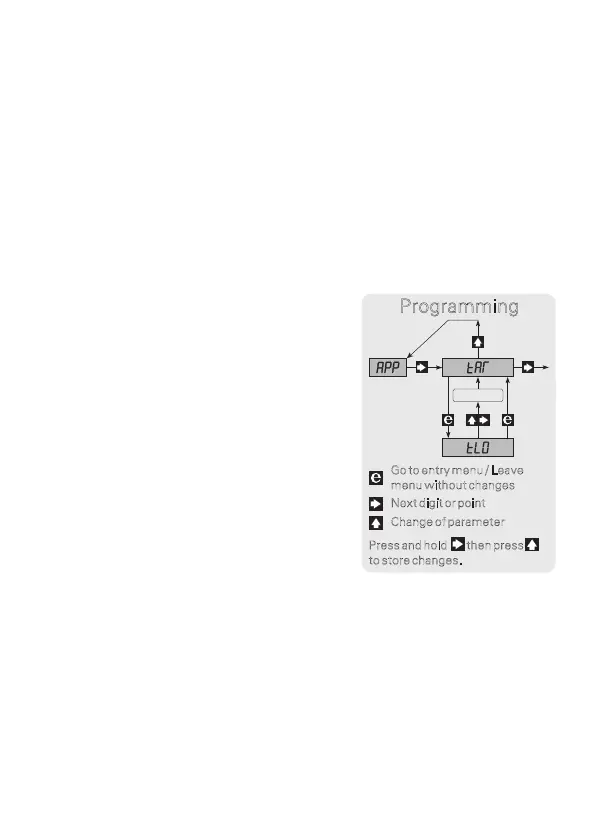

Memory
Programming
Press and hold , then press
to store changes.
Change of parameter
Next digit or point
Go to entry menu / Leave
menu without changes
PROGRAMMING / OPERATING
THE FUNCTION KEYS
DOCUMENTATION FOR ROUTING DIAGRAM
General
The programming is menu-controlled. The main menus are numbered in level 0
(X.0), and the submenus are numbered in level 1 (X.1 - X.5). Each submenu has
an accompa nying entry menu. The menus are structured in such a way that the
menus most frequently used are closer to the default menu 0.0. Please note that
programming is only possible when submenu 5.4 PAS has the value 040.
Main, sub, and entry menus are selected by the
3 function keys
2, 3, and 1 as outlined in the
routing diagram. Activating
2 in the submenus
will display the set value in the entry menu.
In entry menus, the digit that can be changed
will flash. Active digit position is shifted by the
3 key and changed by the 1 key. When the
decimal point flashes, its position can be shifted
by the
1 key.
In entry menus with fixed parameters, you
switch between the parameters by the
1 key.
Store by first activating the
3 key and then the
1 key simultaneously.
Press
2 to return to the previous menu without changing the parameter.
0.0 DEFAULT - The input value is displayed in % of the input span.
At power ON, or if no keys have been activated for a period of 2 minutes, the
display returns to default.
