PR electronics 4225 User Manual

20 4225V100-UK

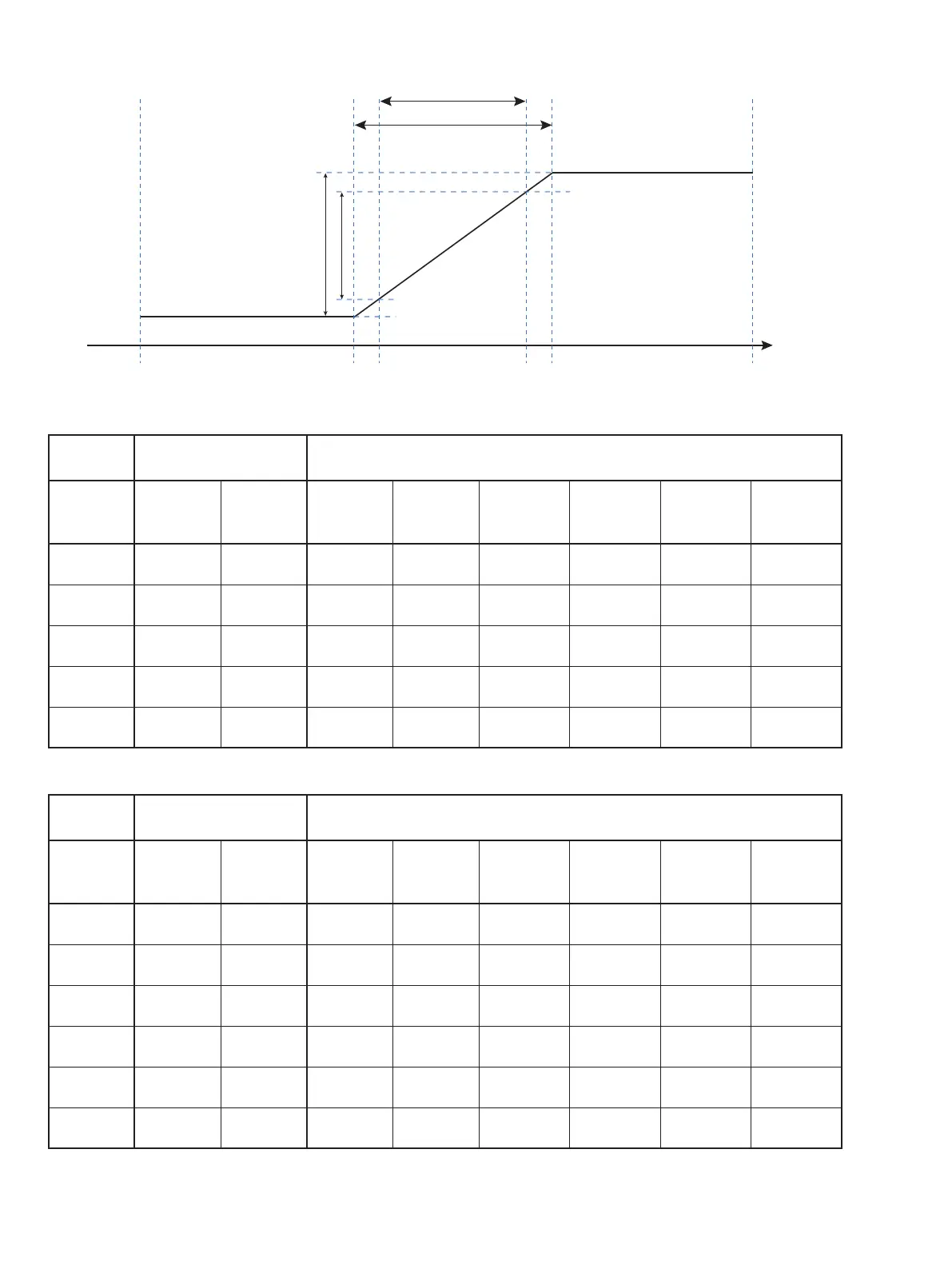

Example – Input limits disabled
‘Min. selected
input’ - 15%
‘Max. selected
input’ + 15%
Normal measuring range
Output error indication = NONE
Extended measuring range
20.0 mA
4.0 mA
3.8 mA
Normal range
Extended working range
20.5 mA
Input:
Hz
Output limits and error indications – current output
Input limit disabled NAMUR sensor error detection / input limit enabled
Output
span
Output limit
low
Output limit
high
Output limit
low
Output limit
high
Output error
indication,
UP
Output error
indication,
DOWN
Output error
indication,
ZERO
Output error
indication,
NONE
4-20 mA 0 mA 23 mA 3.8 mA 20.5 mA 23 mA 3.5 mA 0 mA
No error
indication
S4-20 mA 0 mA 23 mA 3.8 mA 20.5 mA 23 mA 3.5 mA 0 mA
No error
indication
0-20 mA 0 mA 23 mA 0 mA 20.5 mA 23 mA 0 mA 0 mA
No error
indication
±10 mA -11.5 mA 11.5 mA -10.25 mA 10.25 mA 11.5 mA -11.5 mA 0 mA
No error
indication
±20 mA -23 mA 23 mA -20.5 mA 20.5mA 23 mA -23 mA 0 mA
No error
indication
Output limits and error indications – voltage output
Input limit disabled NAMUR sensor error detection / input limit enabled
Output
span
Output limit
low
Output limit
high
Output limit
low
Output limit
high
Output error
indication,
UP
Output error
indication,
DOWN
Output error
indication,
ZERO
Output error
indication,
NONE
0-5 V 0 V 5.75 V 0 V 5.125 V 5.75 V 0 V 0 V
No error
indication
1-5 V 0 V 5.75 V 0.975 V 5.125 V 5.75 V 0.875 V 0 V
No error
indication
0-10 V 0 V 11.5 V 0 V 10.25 V 11.5 V 0 V 0 V
No error
indication
2-10 V 0 V 11.5 V 1.95 V 10.25 V 11.5 V 1.75 V 0 V
No error
indication
±5 V -5.75 V 5.75 V -5.125 V 5.125 V 5.75 V -5.75 V 0 V
No error
indication
±10 V -11.5 V 11.5 V -10.25 V 10.25 V 11.5 V -11. 5V 0 V
No error
indication
