How to demount system 4000

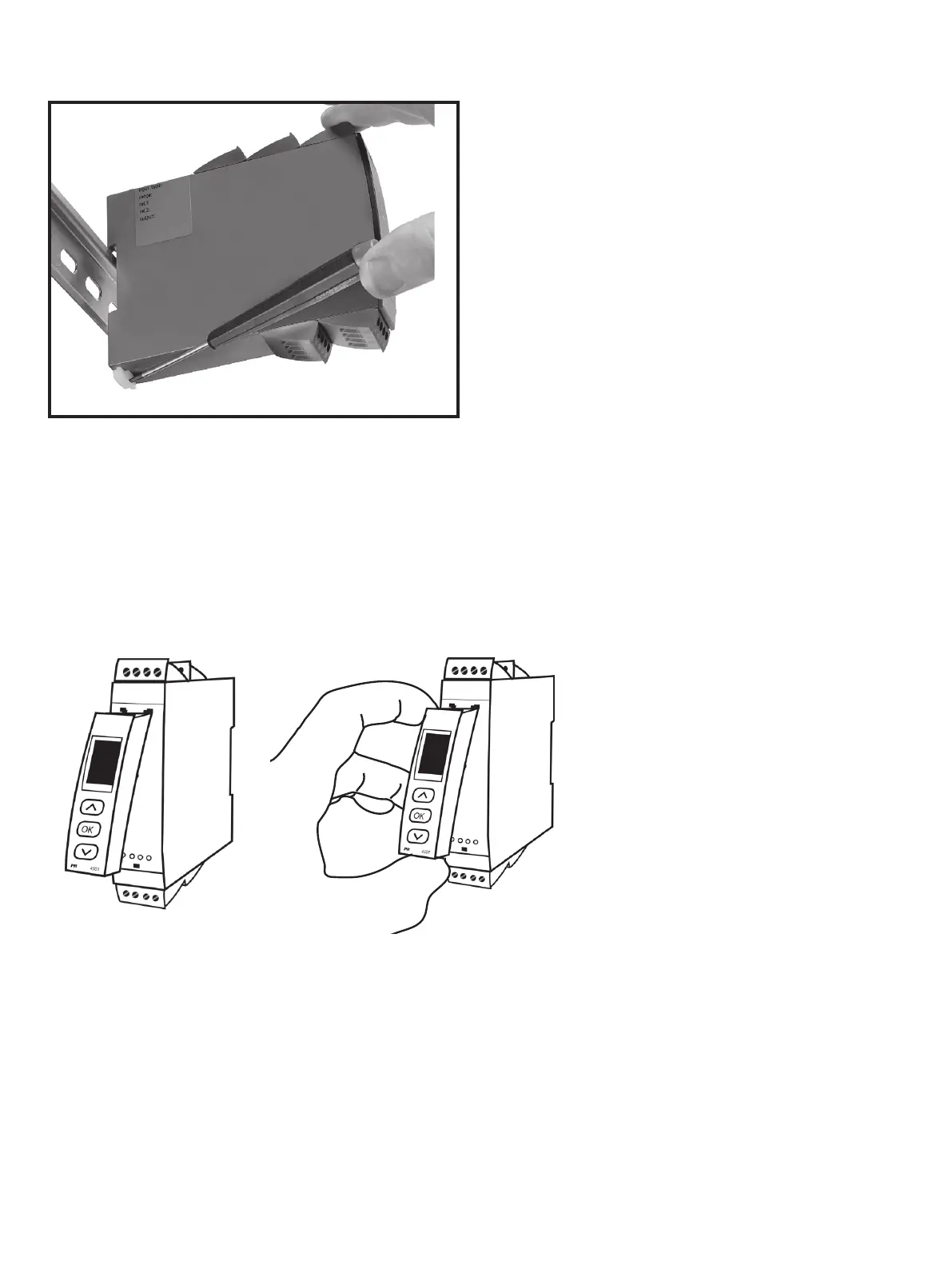

Picture 1:
The device is detached from the DIN rail by moving the
bottom lock down.
Mounting / demounting the PR 4500 communication interfaces
1: Insert the tabs of the PR 4500 into the slots at the top of the device.
2: Hinge the PR 4500 down until it snaps into place.
Demounting of the PR 4500 communication interfaces
3: Push the release button on the bottom of the PR 4500 and hinge the PR 4500 out and up.
4: With the PR 4500 hinged up, remove from the slots at the top of the device.
