ATEX / UKEX Installation Drawing
ATEX/UKEX Installation drawing
4500QA01-V2R0
Ex Certificates DEKRA 13ATEX0098 X
DEKRA 21UKEX0167X
Standards: EN IEC 60079-0
EN 60079-7
Marking: II 3G Ex ec IIC T5
Temperature range -20°C ≤ Ta ≤ +60°C
ATEX/UKEX Installation Instructions
For safe installation of the 4500 series of products the following must be
observed.

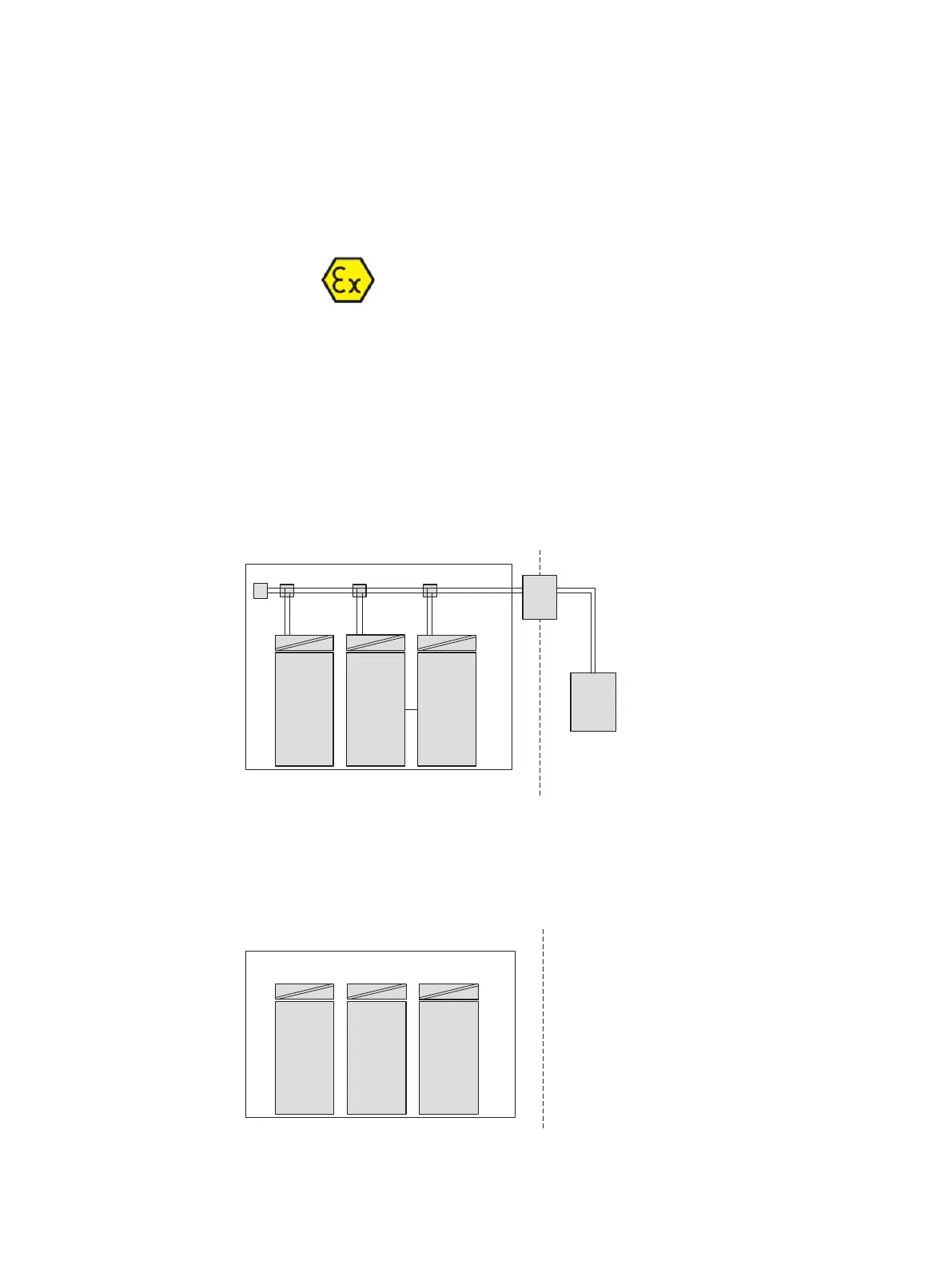

Unclassified Area
Hazardous Area
II 3G Ex IIC
PR
9000
PR
9000
PR
9000
4511
4511
4511
IP 54
T
Gateway
PLC/DCS
HMI/PC
Modbus RTU
Unclassified Area
Hazardous Area
II 3G Ex IIC
PR
9000
PR
9000
PR
9000
4510/
4512
IP 54
4510/
4512
4510/
4512
