MOUNTING / DEMOUNTING THE PR 4501/4511

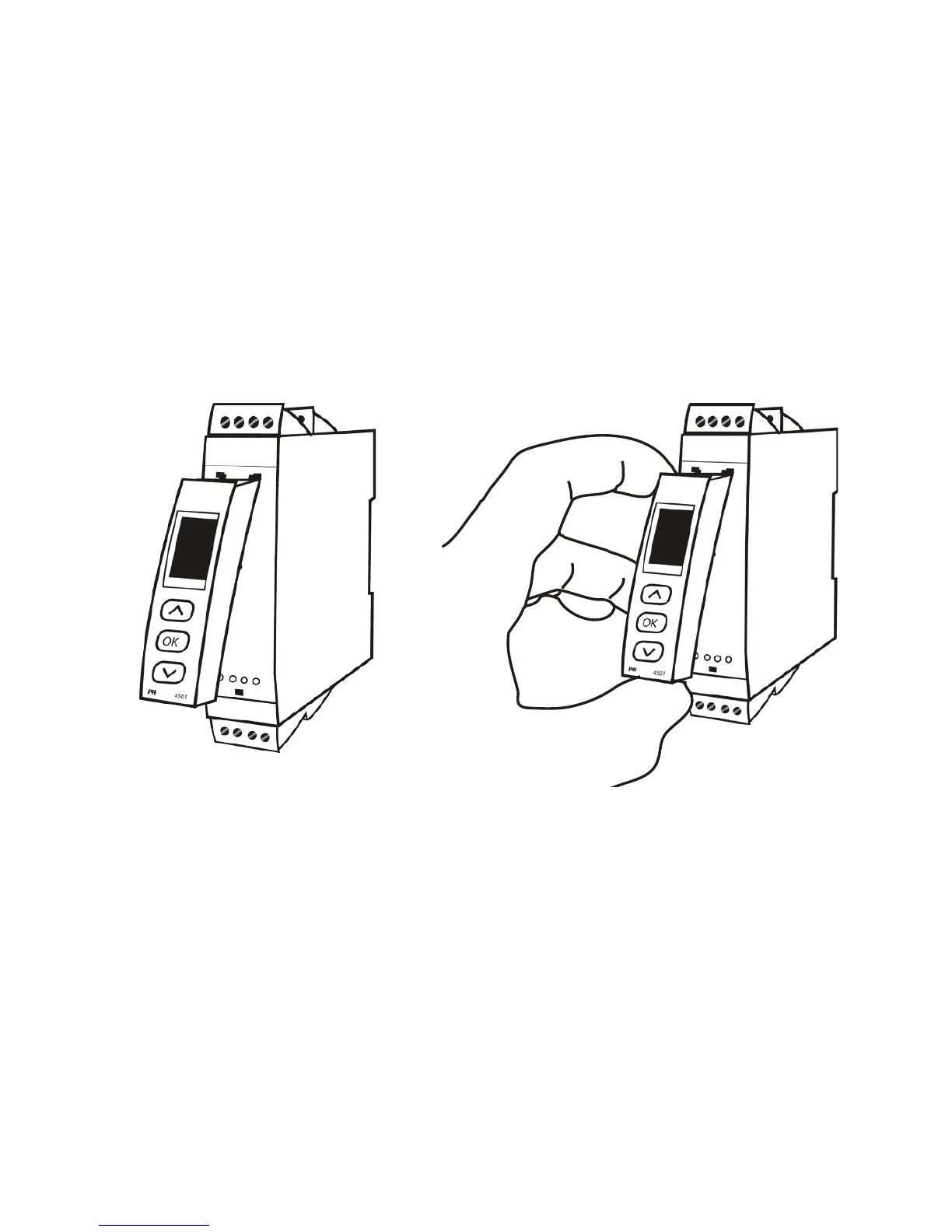

1: Insert the taps of 4501/4511 into the holes at the top of the device.
2: Swing 4501/4511 into place.
Demounting of 4501/4511
3: Push the release button on the bottom of 4501/4511 and swing 4501/4511
up.
