9202 - Product Version 9202-003 7

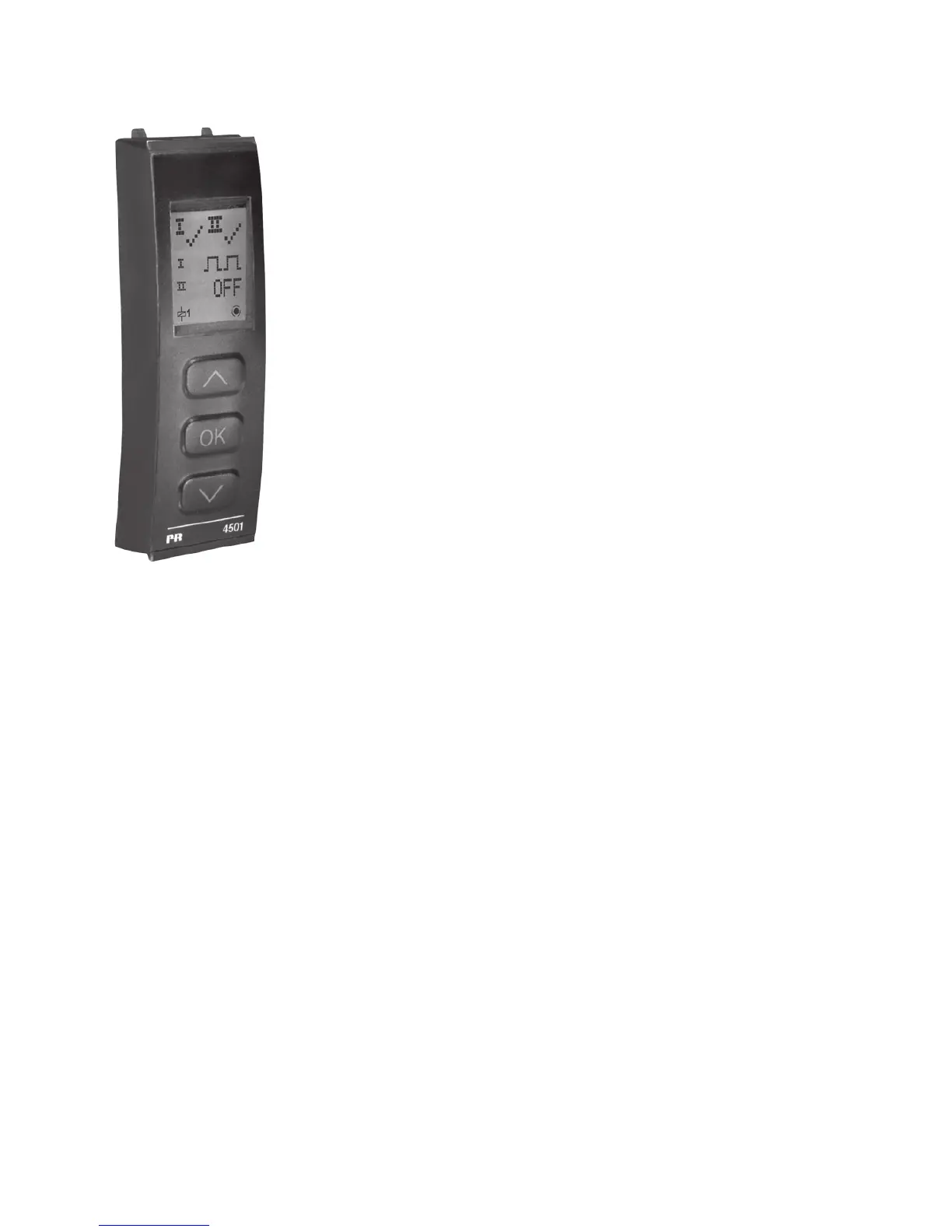

PR 4501 DISPLAY / PROGRAMMING FRONT
Functionality
The simple and easily understandable menu structure
and the explanatory help texts guide you effortless ly and
automatically through the configuration steps, thus making
the product very easy to use. Functions and configuration
options are described in the section ”Configuration /
operating the function keys”.
Application
• Communicationsinterfaceformodificationofoperationalparametersin9202.
• Whenmountedintheprocess,thedisplayshowsprocessvaluesandmodule
status.
Technical characteristics
• LCDdisplaywith4lines;Line1(H=5.57mm)showsstatusforeachchannel
(OKorerror).Line2(H=3.33mm)showsoutputforchannel1(ON/OFF),line3
(H=3.33mm)showsoutputforchannel2(ON/OFF),andline4showswhether
themoduleisSIL-locked.Staticdot=SIL-lockedandflashingdot=notSIL-
locked. Line 4 also indicates status for relay 1 and relay 2.
•Inordertoprotecttheconfigurationagainstunauthorisedchanges,accessto
the menus can be blocked by a password.
