11/21
ERROR MESSAGES
In the course of launch, PR5000 Wash Beam examines automatically whether there are errors and if there are, it will
display information as follows:
Display
Message
Sensor Err S1-M1 Colour wheel (1# drive board motor 1) error
Sensor Err S1-M2 CTO (1# drive board motor 2) error
Sensor Err S1-M3 CYM-cyan (1# drive board motor 3) error
Sensor Err S1-M4 CYM-yellow (1# drive board motor 4) error
Sensor Err S1-M5 CYM-magenta (1# drive board motor 5) error
Sensor Err S2-M1 Fixed Gobo Wheel(2# drive board motor 1) error
Sensor Err S2-M2 Zoom(2# drive board motor 2) error

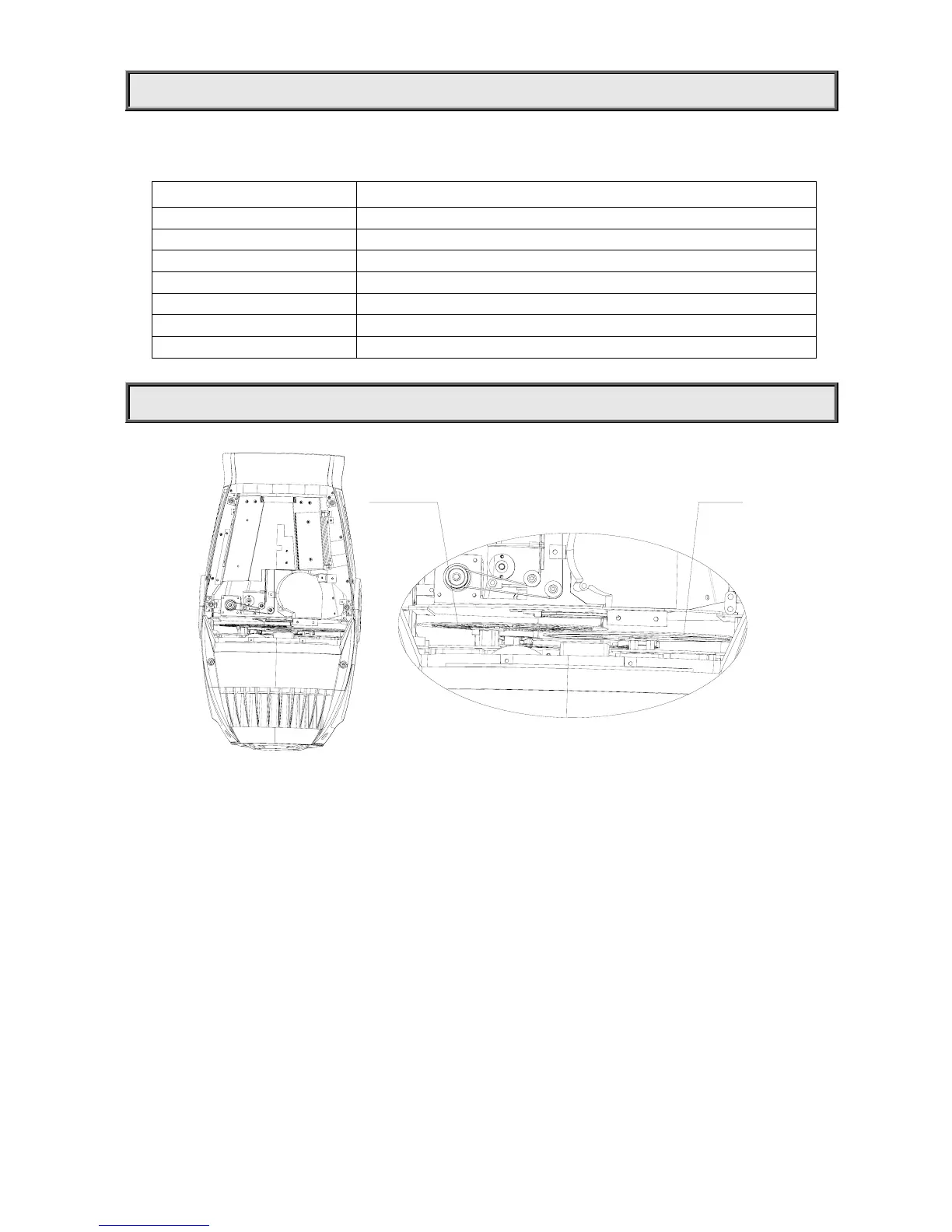

REPLACING GOBOS
Disconnect the fixture from power. Lock Tilt. Carefully lift off the cover by unfastening the 6 screws and see the structure
shown as above..
For gobos replacement on the fixed gobo: Remove the gobo and insert the new one into the position by hands.
For gobos replacement on the rotating gobo wheel: Remove the gobo holder with gobo from gobo wheel by
hands.
Pull out the spring and drop the old gobo out of the holder.
Insert the new gobo into the holder, and then insert the spring with the narrow end against the gobo.
Push the end of the spring in under lip of the holder.
Pick the spring clip up and put the gobo holder back into the position, if necessary, a small screwdriver will be
helped.
Note: If the gobo is a glass one, it should be touched with glabrous, clean and soft tissue or cloth matted between hand
and glass instead of with bare hand.
Close the rear cover and fasten 6 screws and unlock tilt.
Colour Wheel
Fixed Gobo Wheel
