3. MOUNTING
Before starting, select the location to mount the EASYBKA/R controller.
This location should be at shoulder height and on the same side as the
door handle. For fixing, drill two holes, in correspondence of the two
points marked as A.
Drill in correspondence of sign C for the passage of cables.
1. Wire the controller according to the wiring instructions on the
following page.
2. Screw the EASYBKA/R back cover to its mounting location.
3. Return the front cover of the EASYBKA/R to the mounted back
plate.
4. Secure the front cover by using the supplied security screw in
the Installation Kit. An L-Shaped tool is provided for use when
tightening the security screw.
3.1 Wiring the EASYBKA/R
The controller is supplied with a 1 m pigtail, having a 10 conductor
cable. To wire the EASYBKA, perform the following steps.
1. Prepare the controller cable to the required length.
2. Splice the controller pigtail wires to the corresponding devices
and cover each connection. Refer to the wire color guide
provided below and to the wiring diagrams provided on the
following pages.

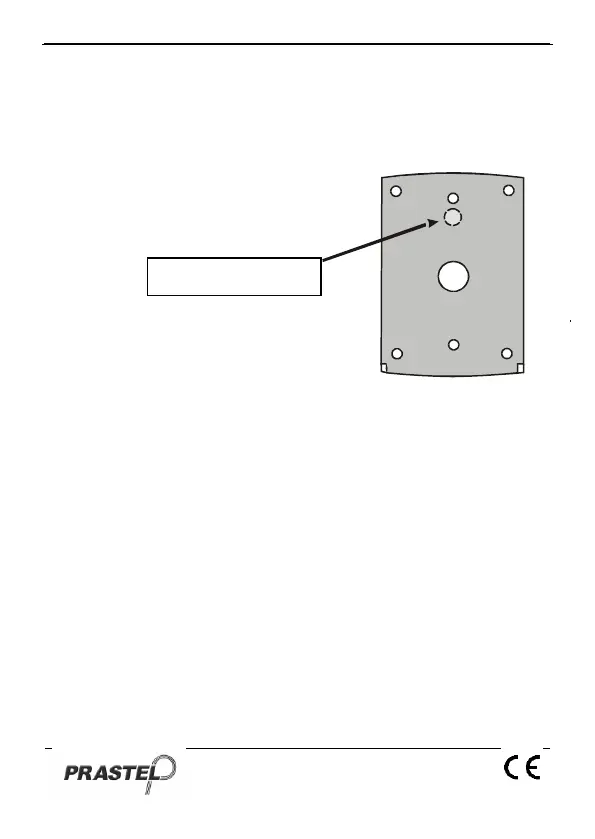

CAUTION! DO NOT DRILL
This is the Tamper Lens
