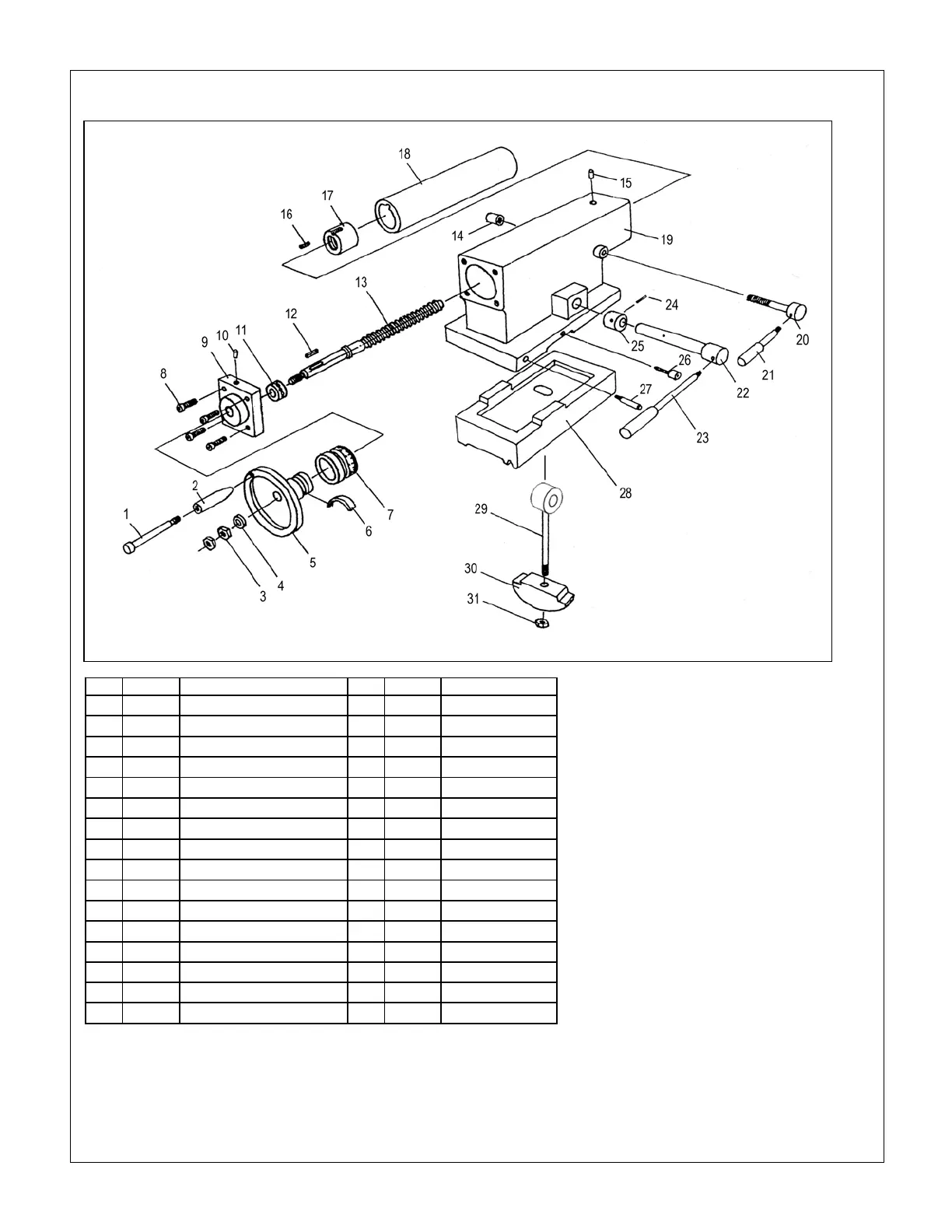

TAILSTOCK
Ref. Mfr. No. Description Ref. Mfr. No. Description
1 4033 Shoulder bolt 17 6012 Nut: M10
2 4032 18 6013 Tailstock quill
3 Nut: M10 19 6001 Tailstock body
4 Washer 20 6022 Clamp screw
5 6005 Handwheel 21 6021 Lever
6 4037 Leaf spring 22 6017 Clamp screw
7 6010
Graduated collar 23 6004 Lever
8 Screw: M6 x 16 24 Pin: 5 x 30
9 6011 Flange 25 6018 Collar (cam)
10 Oiler 26 Screw: M10 x 50
11 Thrust bearing: 12 x 26 x 8 27 6003 Screw
12 Key: 4 x 15 28 6002 Tailstock base
13 6006 Tailstock leadscrew 29 6019 Pull rod
14 6023 Nut: M10 30 6020 Shoe
15 Oiler 31 Nut: M12
16 Screw: M6 x 8
