40
PM-1236 v4 1-2017.indd

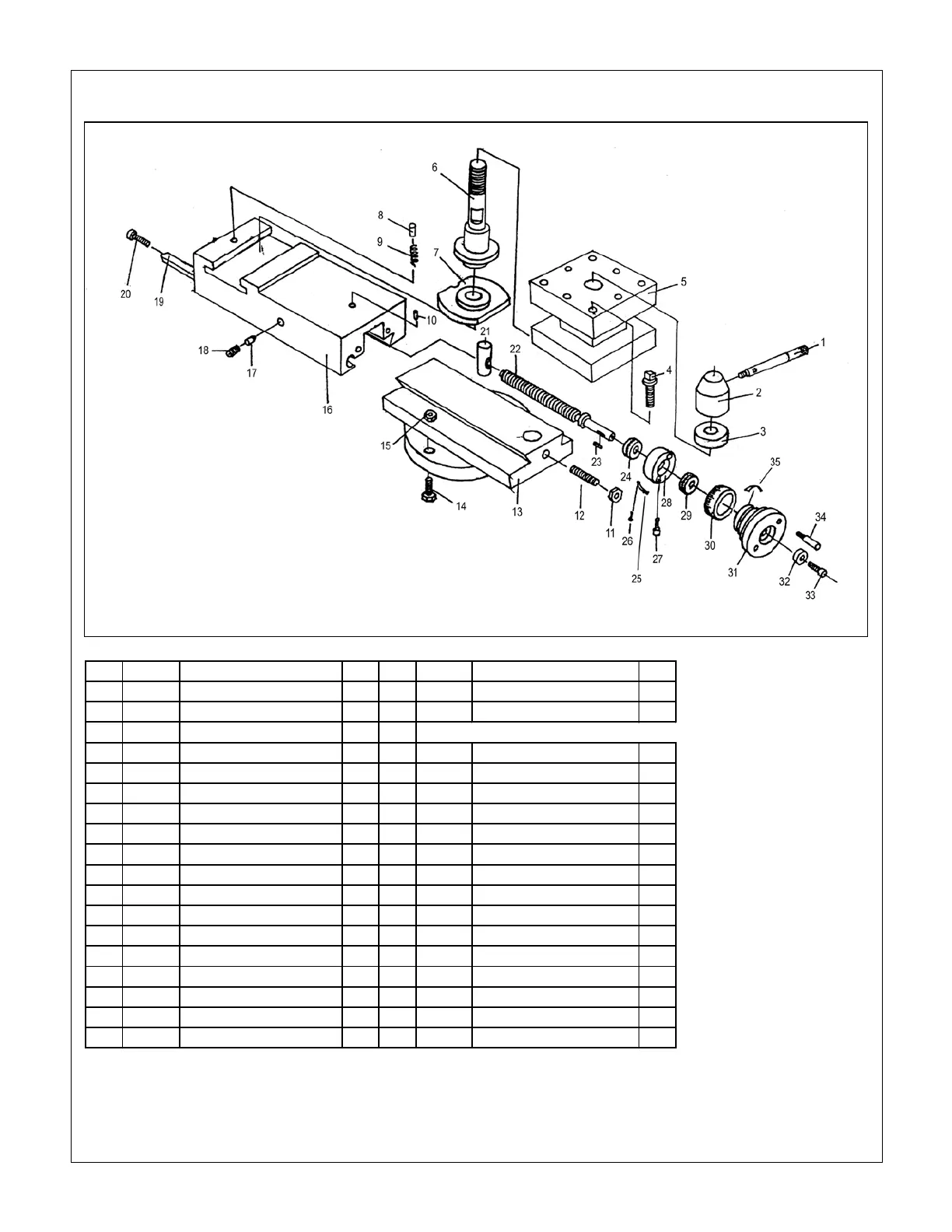

COMPOUND REST
Ref. Mfr. No. Description Qty. Ref. Mfr. No. Description Qty.
1 5010 Clamp lever 1 19 5023 Compound rest gib 1
2 5009 Clamp boss, M16 1 20 5021 Gib screw 2
3 5008 Collar 1 21 5012A1 Leadscrew barrel nut 1
4 Screw: sq hd, M10 x 45 8 22 5011A3 Compound rest leadscrew 1
5 5005 4-way toolholder 1 23 Key: 4 x 8 1
6 5006 Tool post bolt, M16 1 24 8101 Thrust bearing: 12 x 26 x 9 1
7 5003 Slide T-nut 1 25 5026A2 Datum plate 1
8 5004 Detent pin 1 26 Rivet: 2 x 4 2
9 Spring, comp. 1.2 x 4.8 x 8 1 27 Screw: skt hd, M6 x 25 2
10 Oiler 1 28 5013 Leadscrew flange 1
11 Nut: M6 1 29 8101 Thrust bearing: 12 x 26 x 9 1
12 Screw: set, M6 x 16 1 30 5014A3 Graduated collar 1
13 5001 Compound swivel base 31 5016A Handwheel 1
14 5107 T-bolt, M10 2 32 5028 Washer 1
15 Nut: M10 2 33 Screw: skt hd, M6 x 12 1
16 5002 Compound rest 34 5031 Handle (pr., diff. lengths) 2
17 5024 Pressure pin 35 4037 Leaf spring 1
18 Screw: set, M6 x 8
