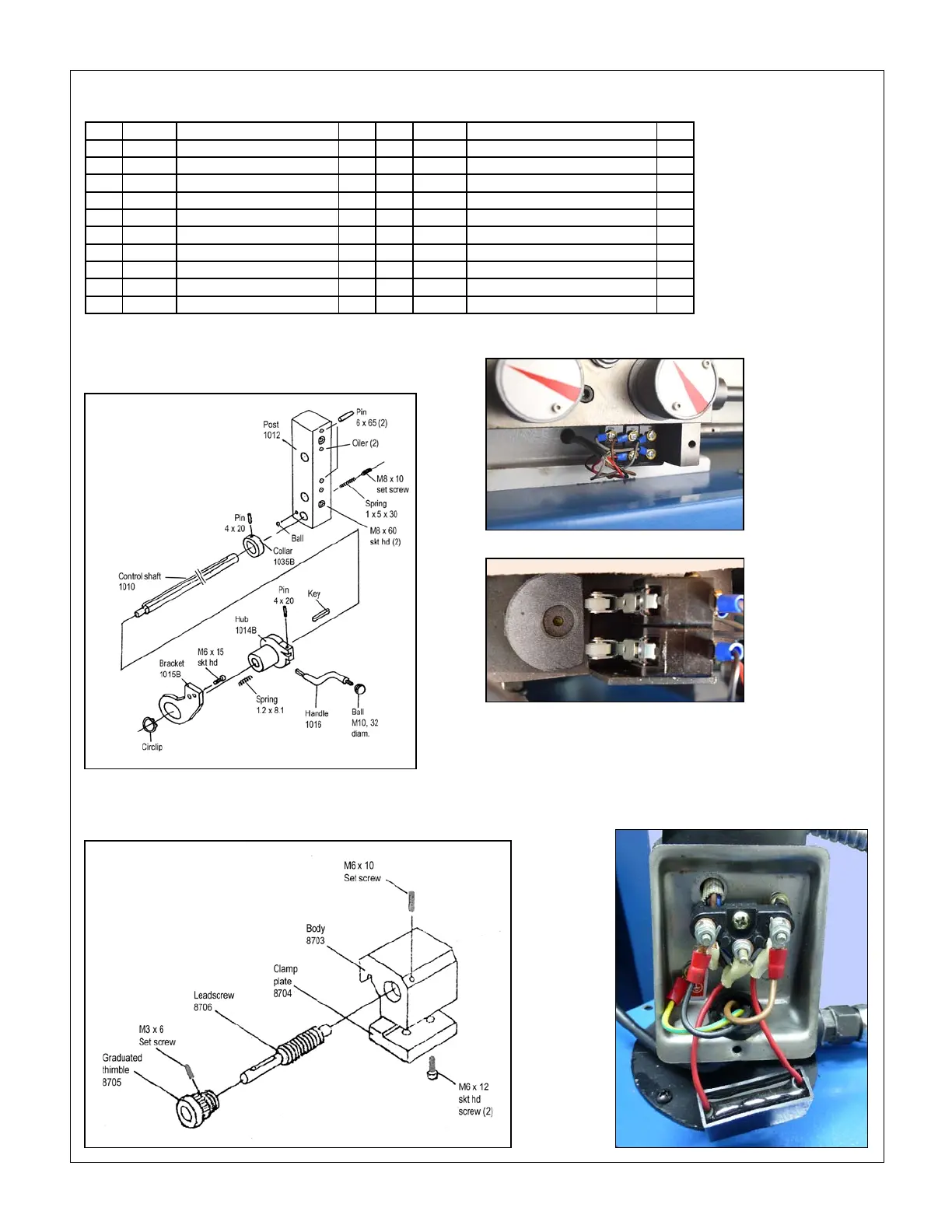

CARRIAGE STOP
MOTOR CONTROL
Motor switches at le end of control sha, front cover removed
Motor switches, end-on from le, showing D-shape cam aached to end of
control sha
APRON (continued)
Ref.
Mfr. No.
Description Qty. Ref. Mfr. Description
Qty.
57 4021 Stop flag 1
67 3022 Gib, split-nut casing 2
58
Screw: set M5 x 12 1 69
Screw: skt hd M5 2
59
4023 Split-nut shaft 1 70 Split-nut assembly
1
60
Screw: skt hd M8 x 30 1 72 Set screw 2
62 Screw: skt hd M10 x 20 2
74 4006 Threading dial
1
63 Washer 1
75
4005 Housing 1
64 Nut: M6 1
76
Screw: skt hd M6 x 65 1
65 4044 Lever, split-nut shaft 1
77
4044 Gear, leadscrew follower, 16T 1
66 Pin: 5 x 10 2
78 Screw: M6 x 15 1
COOLANT PUMP WIRING
