PM-1236 v4 1-2017.indd

STAND & COOLANT COMPONENTS (continued)

Ref. Mfr. No. Description Qty. Ref. Mfr. No. Description Qty.

54 1048 Spring, extension 1 61 Roll pin: 5 x 40 1

55 1047 Spring anchor 1 62 1049-1 Shaft 1

56 Collar: 20 ID 1 63 Screw: M6 x 12 skt hd 1

57 1045 Crank 1 64 1049-3 Connecting sleeve 1

58 1052 Stop post 1 65 1049-2 Brake shaft 1

59 Stop screw, M6 x 30 1 66 1050 Brake treadle 1

1054 Draw bar 1

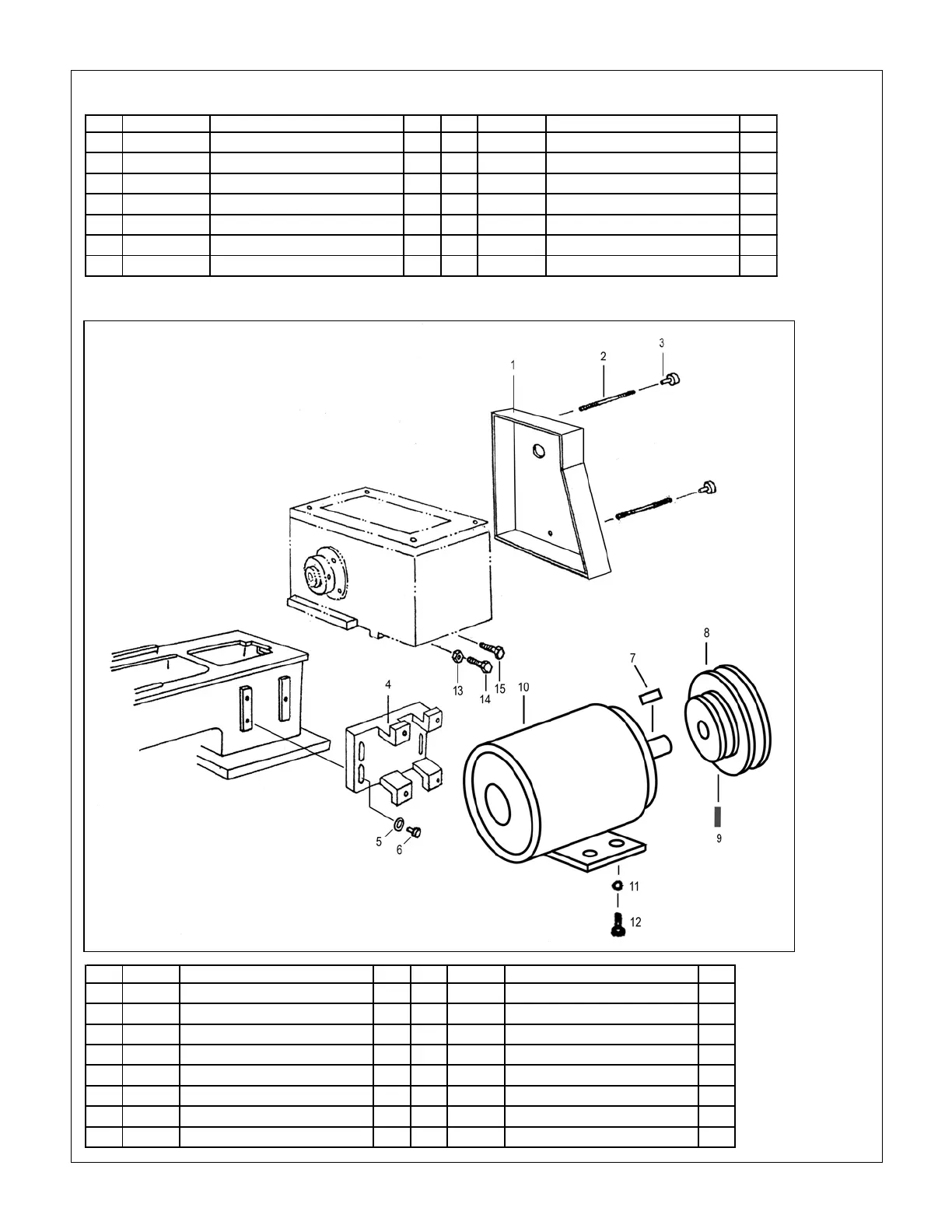

MOTOR MOUNT & COVER

Ref. Mfr. No. Description Qty. Ref. Mfr. No. Description Qty.

1 1021 Cover 1 9 Screw: M6 x 8 set 1

2 1002 Threaded stud 2 10 Motor 1

3 1001 Knurled nut 2 11 Washer 4

4 1024 Motor mount 1 12 Screw 4

5 1013 Washer 3 13 Nut: M6 2

6 Screw 3 14 Screw: M8 x 45 hex hd 2

Key: 8 x 40 1 15 Screw: M8 x 30 hex hd 2

8 1003A5 Double pulley 1
