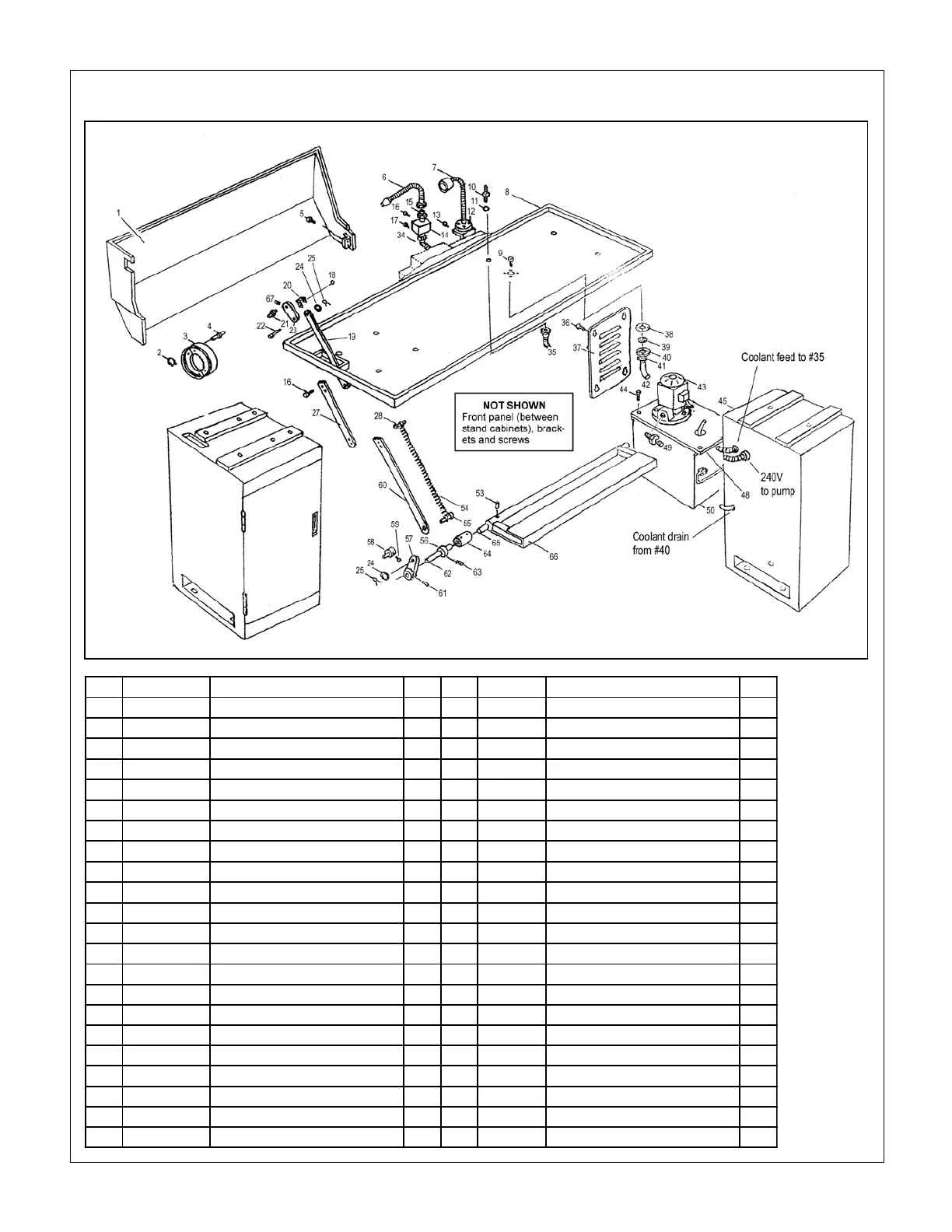

STAND & COOLANT COMPONENTS
Ref. Mfr. No. Description Qty. Ref. Mfr. No. Description Qty.
1 1023 Back plate 1 23 1041 Linkage 1
2 Circlip 1 24 Washer 2
3 Spindle brake 1 25 Clip: 2.5 x 16 2
4 1040 Shaft 1 26 8400 Stand cabinet, left hand 1
5 Screw: M6 x 16 skt hd 4 27 1044 Draw bar 1
6 Coolant flex pipe 1 28 Screw: M10 x 30 skt hd 1
7 Work lamp 1 34 Coolant feed pipe 1
8 1022 Tray 1 35 Coolant feed pipe 1
9 Screw: M5 x 12 skt hd 4 36 Screw: M6 x 12 button hd 4
10 9206 Pipe connector 1 37 9201A Louvred cover 1
11 9207 Washer, nitrile 1 38 9205 Gasket 1
12 7015 Bracket 1 39 9203 Filter 1
13 Screw: M5 x 12 skt hd 2 40 9204 Flange 1
14 9208 Pipe base 1 41 Pipe clip 1
15 X6121-06011A Pipe connector 1 42 Pipe 16 x 1000 1
16 Screw: M6 x 12 skt hd 2 43 Coolant pump 1
17 Screw: M8 x 35 skt hd 2 44 Screw: M5 x 10 skt hd 4
18 Screw: M4 x 10 skt hd 1 45 8500 Stand cabinet, right hand 1
19 1043 Draw bar 1 48 9210 Coolant box cover 1
20 1053 Bracket 1 49 9206 Pipe connector 1
21 1042 Pivot 1 50 9209 Coolant box 1
22 Screw: M8 x 20 shoulder 1 53 Roll pin: 5 x 25 1
