Upper change gear
Change gears larger than 46 teeth
cannot be installed like this, hub
facing out. Install with hub facing in.

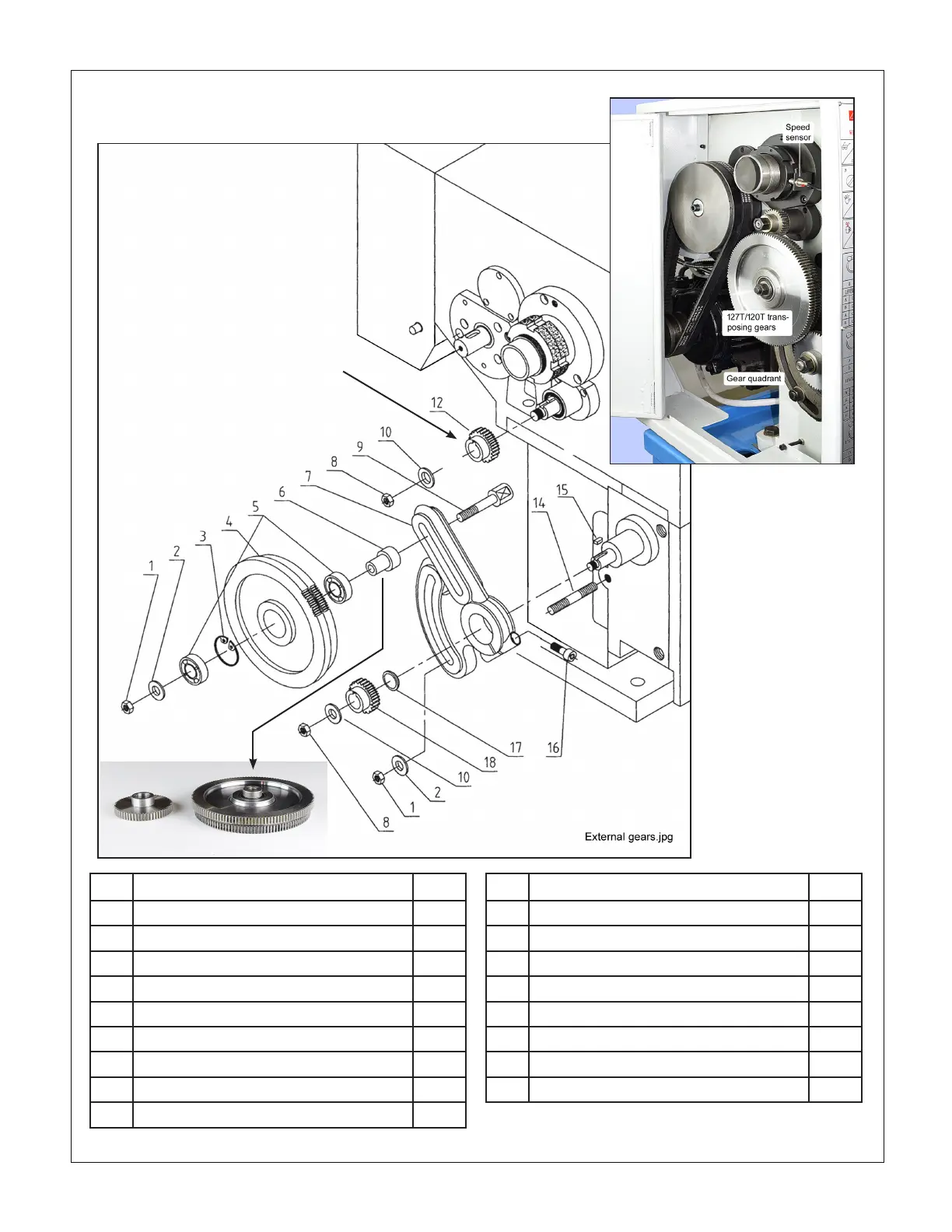

EXTERNAL GEARS Fig 3
Dimensions in millimeters
Ref Description Part
1 Nut M10 Z3146
2 Washer 10 Z3147
3 Retaining ring 35 Z3148
4 127T/120T gear pair Z3149
5 Thrust bearing 6003-Z Z3150
6 Shouldered bushing Z3151
7 Gear quadrant Z3152
8 Nut M12 Z3153
9 T-bolt Z3154
Ref Description Part
10 Washer 12 Z3155
12 Change gear (upper) Z3156
13 Spacer Z3157
14 Threaded rod M10×70 Z3158
15 Key 5×14 Z3159
16 Socket head screw Z3160
17 Washer Z3161
18 Change gear (lower) Z3162
There may be detail dierences
between this representative drawing
and the machine as supplied
To Next Page
