Precision matthews PM-1440BV - Headstock Controls Fig 4

35PM-1440BV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

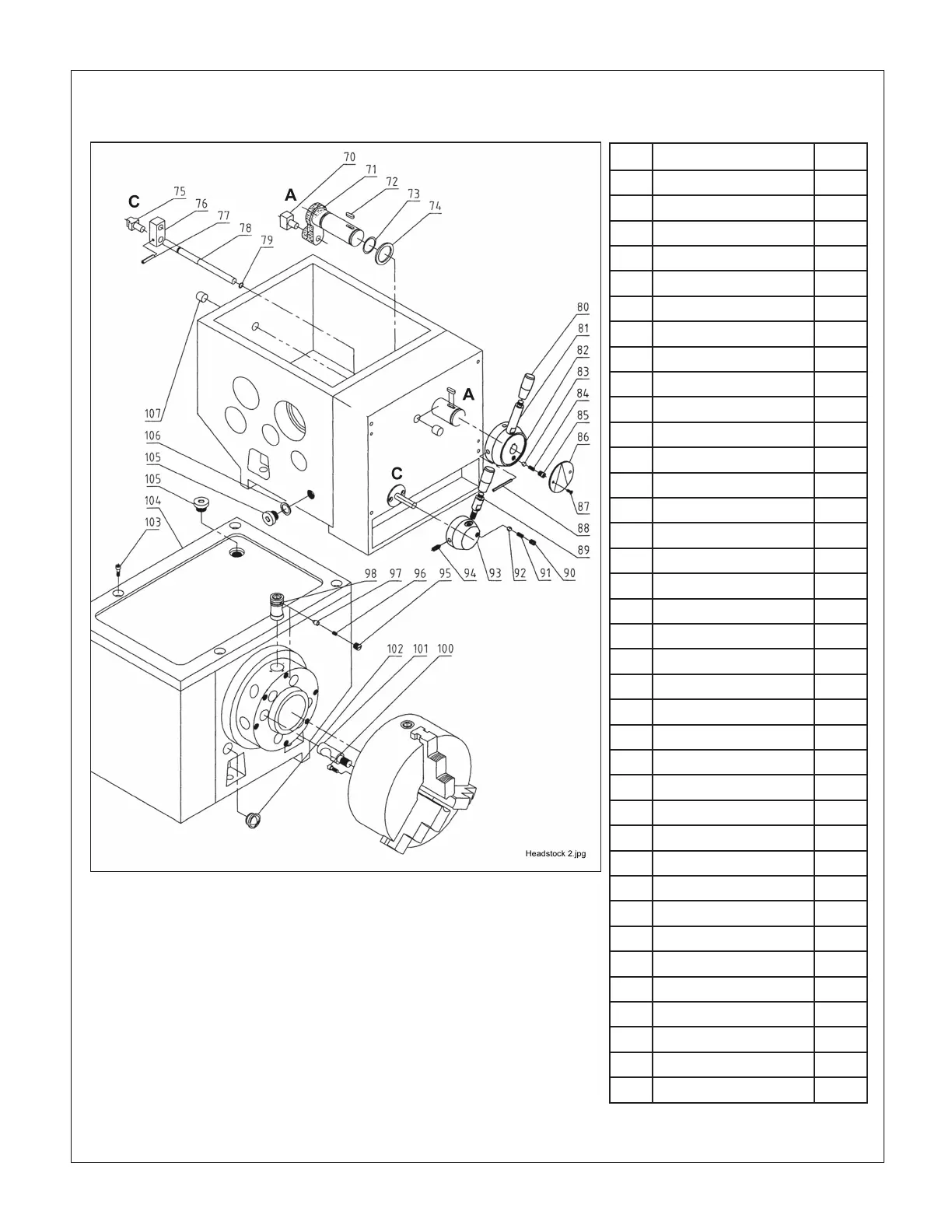

HEADSTOCK CONTROLS Fig 4
Dimensions in millimeters
Ref Description Part
70 Shift fork (H-L) Z3163
71 Shift arm Z3164
72 Key 5×14 Z3165
73 O-ring 30×3.1 Z3166
74 Washer Z3167
75 Shift fork (direction) Z3168
76 Shift arm Z3169
77 Roll pin 4×18 Z3170
78 Shaft Z3171
79 O-ring 10×1.9 Z3172
80 Knob BM8×40 Z3173
81 Handle Z3174
82 Hub Z3175
83 Steel ball 6 Z3176
84 Spring 6×1×10 Z3177
85 Screw M8×8 Z3178
86 Indicator Z3179
87 Screw M4×8 Z3180
88 Roll pin 4×50 Z3181
89 Handle Z3182
90 Screw M6×8 Z3183
91 Spring 5×1×25 Z3184
92 Steel ball 5 Z3185
93 Hub Z3186
94 Screw M6×16 Z3187
95 Screw Z3188
96 Spring Z3189
97 Pin Z3190
98 Cam Z3191
100 Skt head screw M6×20 Z3192
101 Stud Z3193
102 Sight glass A12 Z3194
103 Skt head screw M6×25 Z3195
104 Top plate Z3196
105 Fill/drain plugs M16×1.5 Z3197
106 Copper washer 16 Z3198
107 Plug Z3199
There may be detail dierences
between this representative drawing
and the machine as supplied
