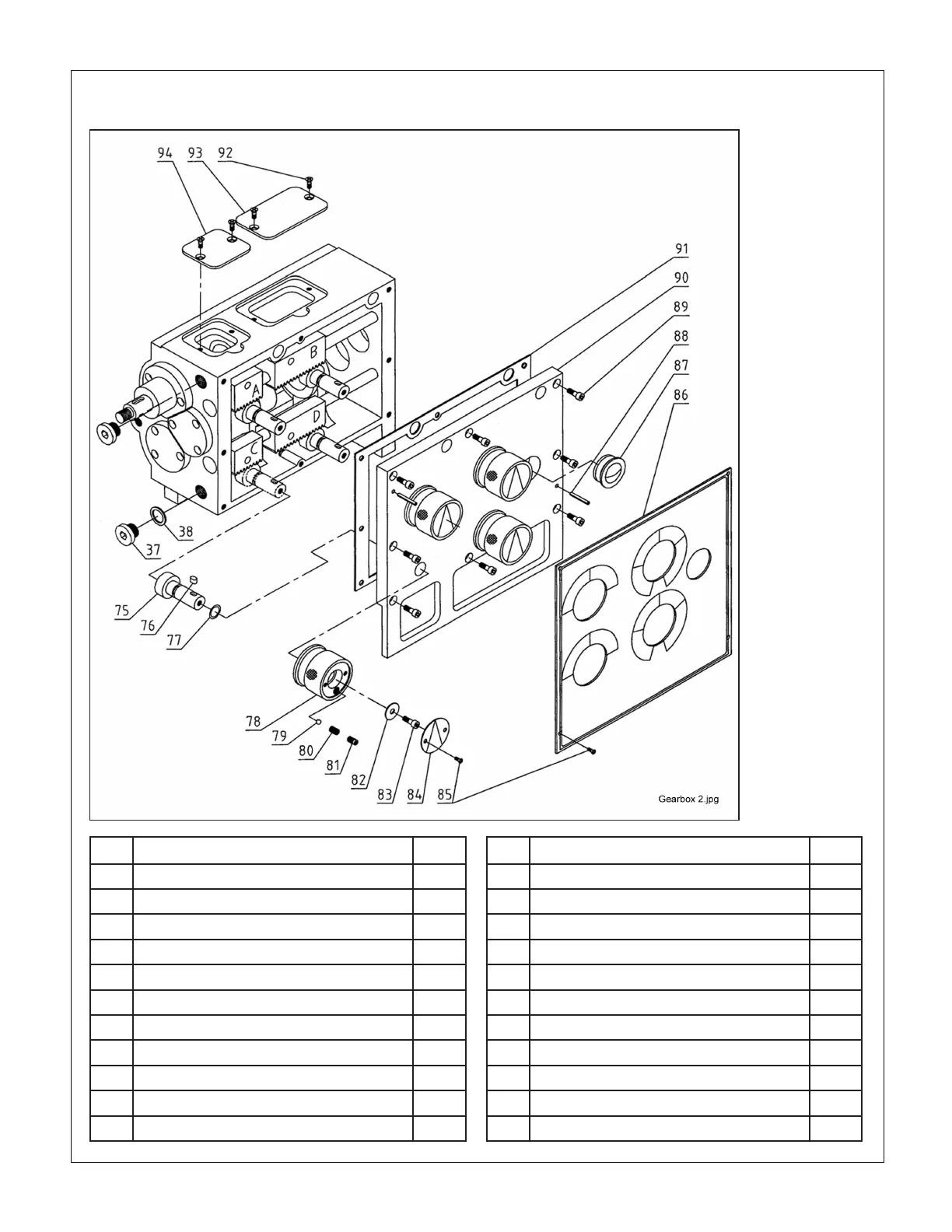

FEED GEARBOX CONTROLS Fig 6
Dimensions in millimeters
Ref Description Part
37 Oil ll/drain plugs M16×1.5 Z3267
38 Copper washer 16 Z3268
75 Gear Z3269
76 Key 5×8 Z3270
77 O-ring 16×2.4 Z3271
78 Knob Z3272
79 Steel ball 6 Z3273
80 Spring 6×1×25 Z3274
81 Screw M8×8 Z3275
82 Washer 6 Z3276
83 Socket head screw M6×12 Z3277
Ref Description Part
84 Indicator plate Z3278
85 Screw M4×6 Z3279
86 Front panel Z3280
87 Sight glass A16 Z3281
88 Pin 4×25 Z3282
89 Socket head screw M6×20 Z3283
90 Front plate Z3284
91 Gasket Z3285
92 Screw M4×6 Z3286
93 RH cover Z3287
94 LH cover Z3288
There may be detail dierences
between this representative drawing
and the machine as supplied
