Precision matthews PM-1440BV

47PM-1440BV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

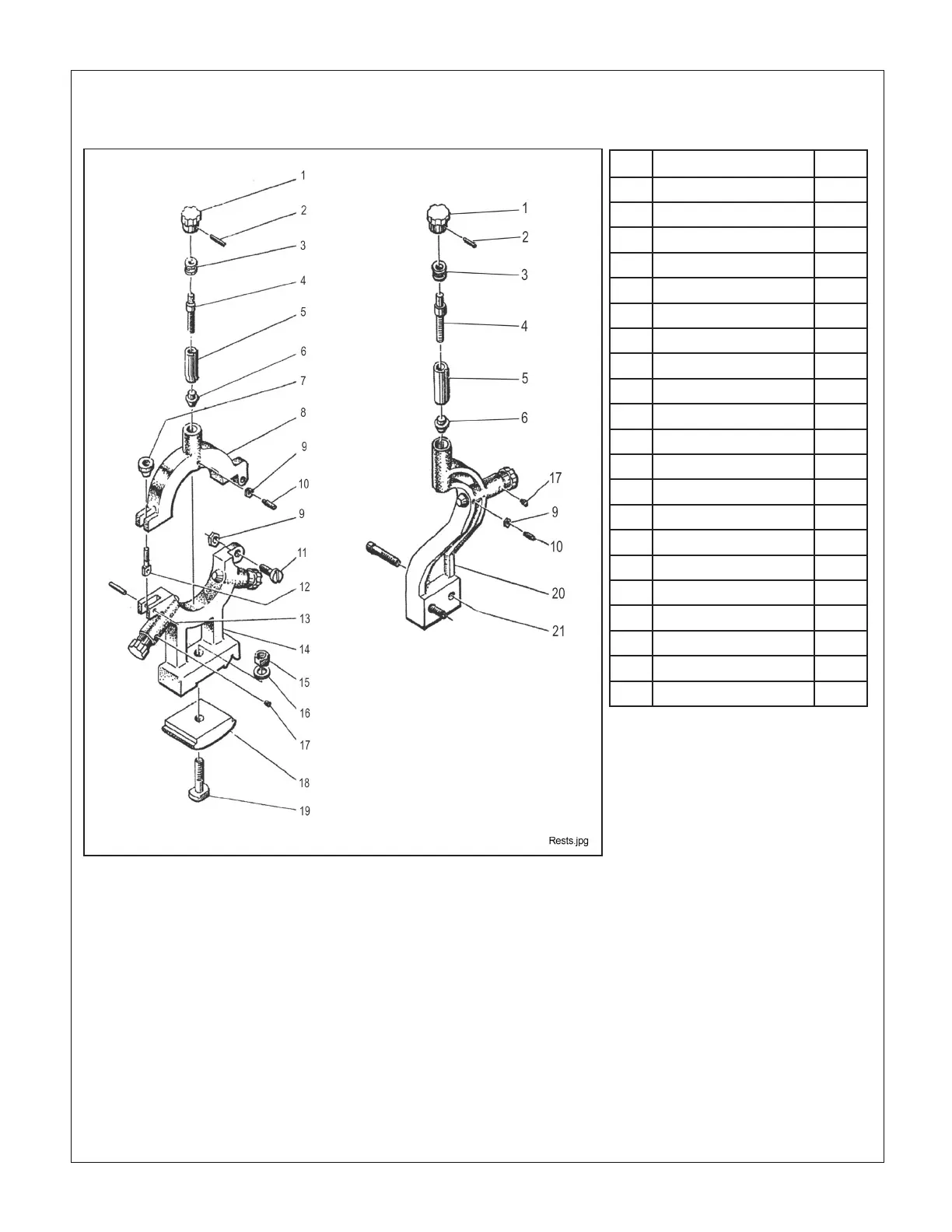

RESTS Fig 12
Dimensions in millimeters
Ref Description Part
1 Thumb nut Z3558
2 Pin 3X18 Z3559
3 Collar Z3560
4 Adjusting screw Z3561
5 Plunger Z3562
6 Cone point Z3563
7 Thumb nut Z3564
8 Hinge casting Z3565
9 Nut M6 Z3566
10 Screw M6X18 Z3567
11 Screw M6X30 Z3568
12 Hinge clamp screw Z3569
13 Pin 5X24 Z3570
14 Steady rest casting Z3571
15 Nut M12 Z3572
16 Washer 12 Z3573
17 Screw M6X6 Z3574
18 Clamp base Z3575
19 Screw M12X65 Z3576
20 Follower rest casting Z3577
21 Screw M8X46 Z3578
