Precision matthews PM-1440BV

46PM-1440BV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

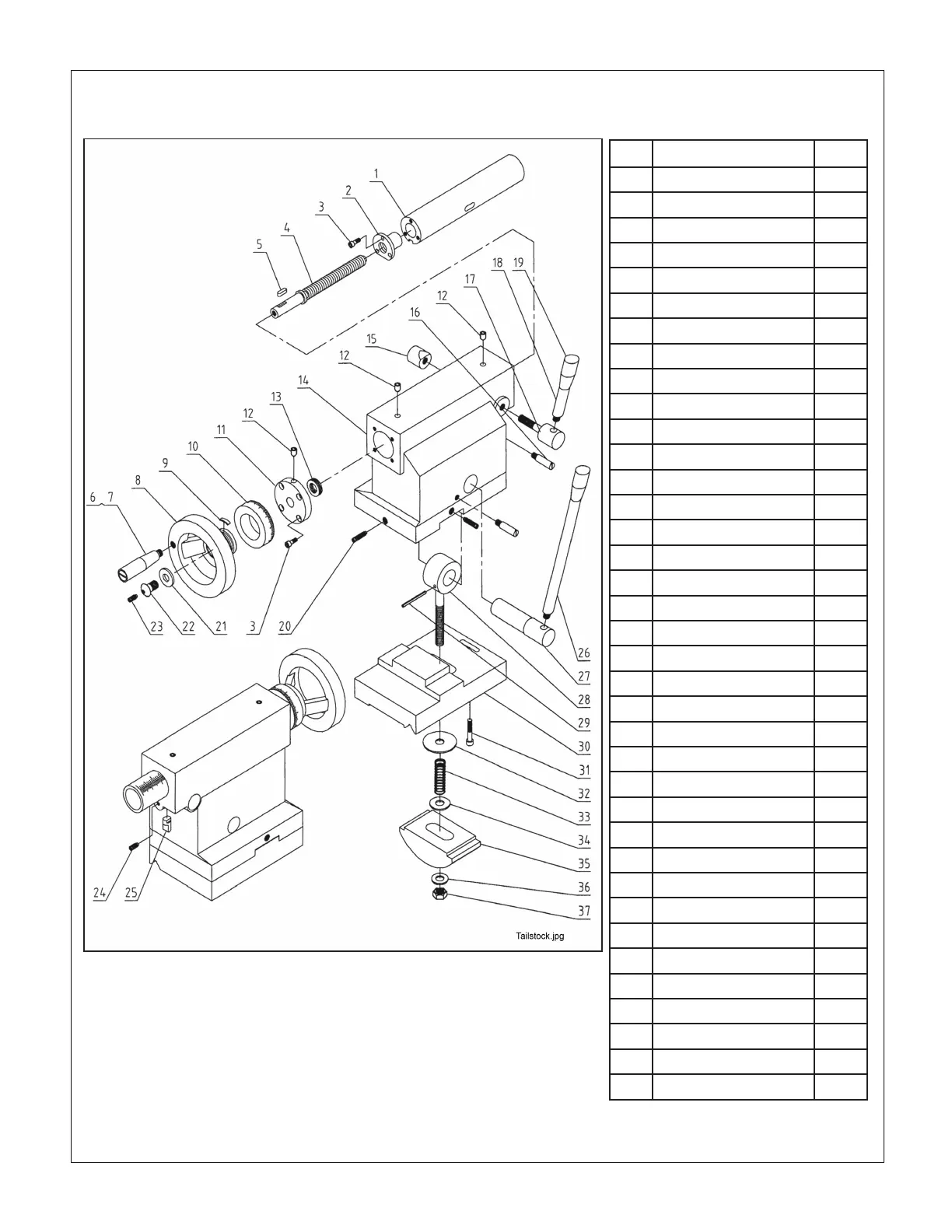

TAILSTOCK Fig 11
Dimensions in millimeters
Ref Description Part
1 Quill Z3521
2 Flange nut 10TPI Z3522
3 Skt head screw M5×12 Z3523
4 Leadscrew 10TPI Z3524
5 Key 4×15 Z3525
6 Handle Z3526
7 Shoulder bolt M8 Z3527
8 Handwheel Z3528
9 Reed spring Z3529
10 Graduated collar Z3530
11 End plate Z3531
12 Oiler 8 Z3532
13 Ball bearing 51102 Z3533
14 Tailstock casting Z3534
15 Quill clamp block, brass Z3535
16 Stop pin Z3536
17 Quill clamp shaft Z3537
18 Quill clamp handle Z3538
19 Knob M8x40 Z3539
20 Screw M12×45 Z3540
21 Washer 12 Z3541
22 Adjusting screw Z3542
23 Lock screw M6×25 Z3543
24 Screw M6×8 Z3544
25 Anti-rotation pin Z3545
26 Tailstock clamp handle Z3546
27 Eccentric clamp shaft Z3547
28 Draw-down bolt Z3548
29 Roll pin 4×50 Z3549
30 Base Z3550
31 Skt head screw M6x40 Z3551
32 Special washer Z3552
33 Spring Z3553
34 Special washer Z3554
35 Clamp base Z3555
36 Washer 16 Z3556
37 Nut M16 Z3557
There may be detail dierences
between this representative drawing
and the machine as supplied
