Precision matthews PM-1440BV - Compound Fig 10

45PM-1440BV v3 2020-10 Copyright © 2020 Quality Machine Tools, LLC

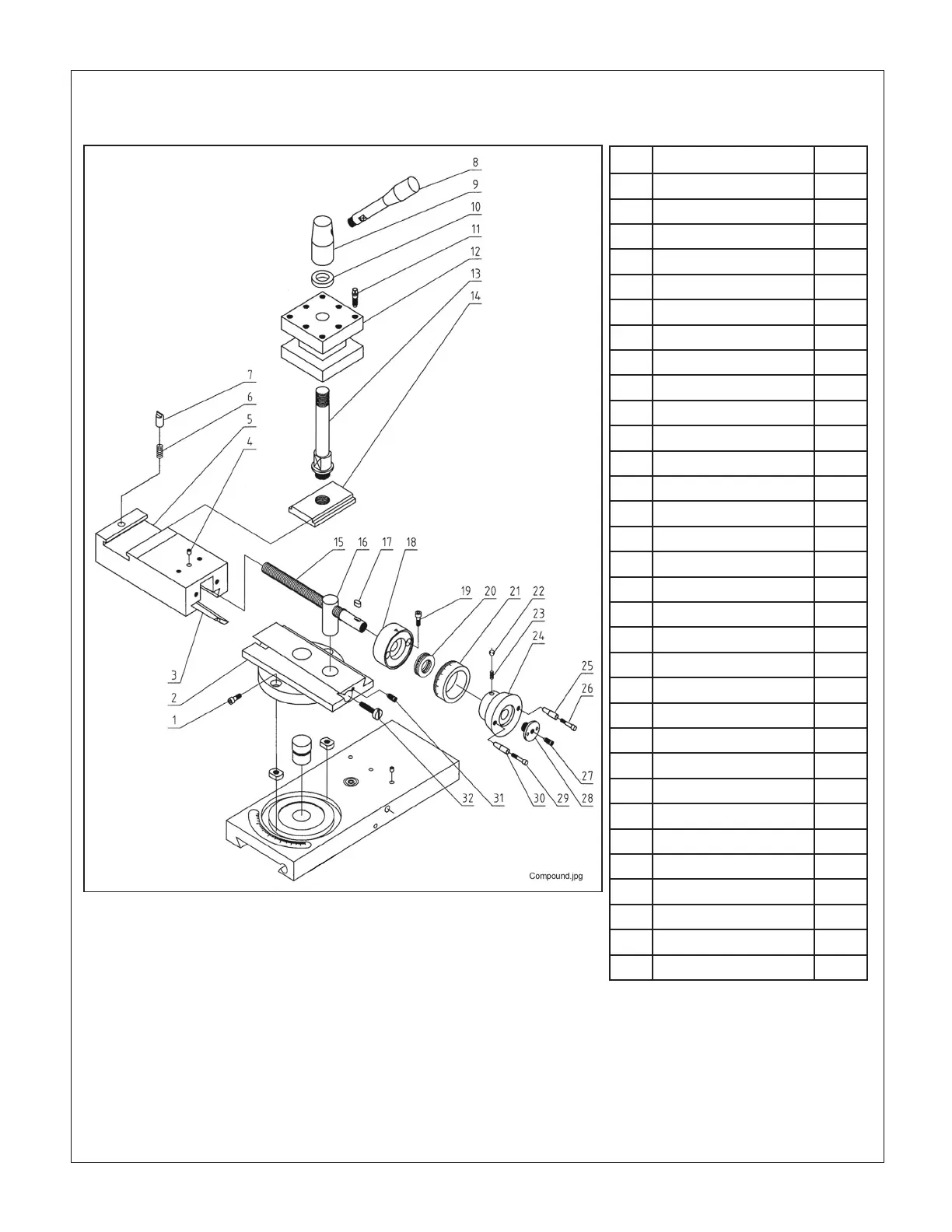

COMPOUND Fig 10
Dimensions in millimeters
Ref Description Part
1 Skt head screw M8×16 Z3489
2 Swivel base Z3490
3 Gib Z3491
4 Oiler 6 Z3492
5 Compound body Z3493
6 Spring 8×1×11 Z3494
7 Detent Z3495
8 Handle Z3496
9 Handle hub Z3497
10 Washer Z3498
11 Special bolt M10×50 Z3499
12 4-way tool post Z3500
13 Pillar Z3501
14 Tee plate Z3502
15 Leadscrew Z3503
16 Leadscrew nut Z3504
17 Key 4×14 Z3505
18 Support ange Z3506
19 Skt head screw M6×16 Z3507
20 Ball bearing 51103 Z3508
21 Graduated collar Z3509
22 Steel ball 5 Z3510
23 Spring 5×1×12 Z3511
24 Handwheel Z3512
25 Handle, short Z3513
26 Shoulder bolt Z3514
27 Lock screw M6×25 Z3515
28 Flange screw Z3516
29 Shoulder bolt Z3517
30 Handle, long Z3518
31 Screw M6×16 Z3519
32 Gib screw Z3520
There may be detail dierences
between this representative drawing
and the machine as supplied
