Precision matthews PM-1440GT User Manual

30
Copyright © 2020 Quality Machine Tools, LLCPM-1440GT v9 2020-10

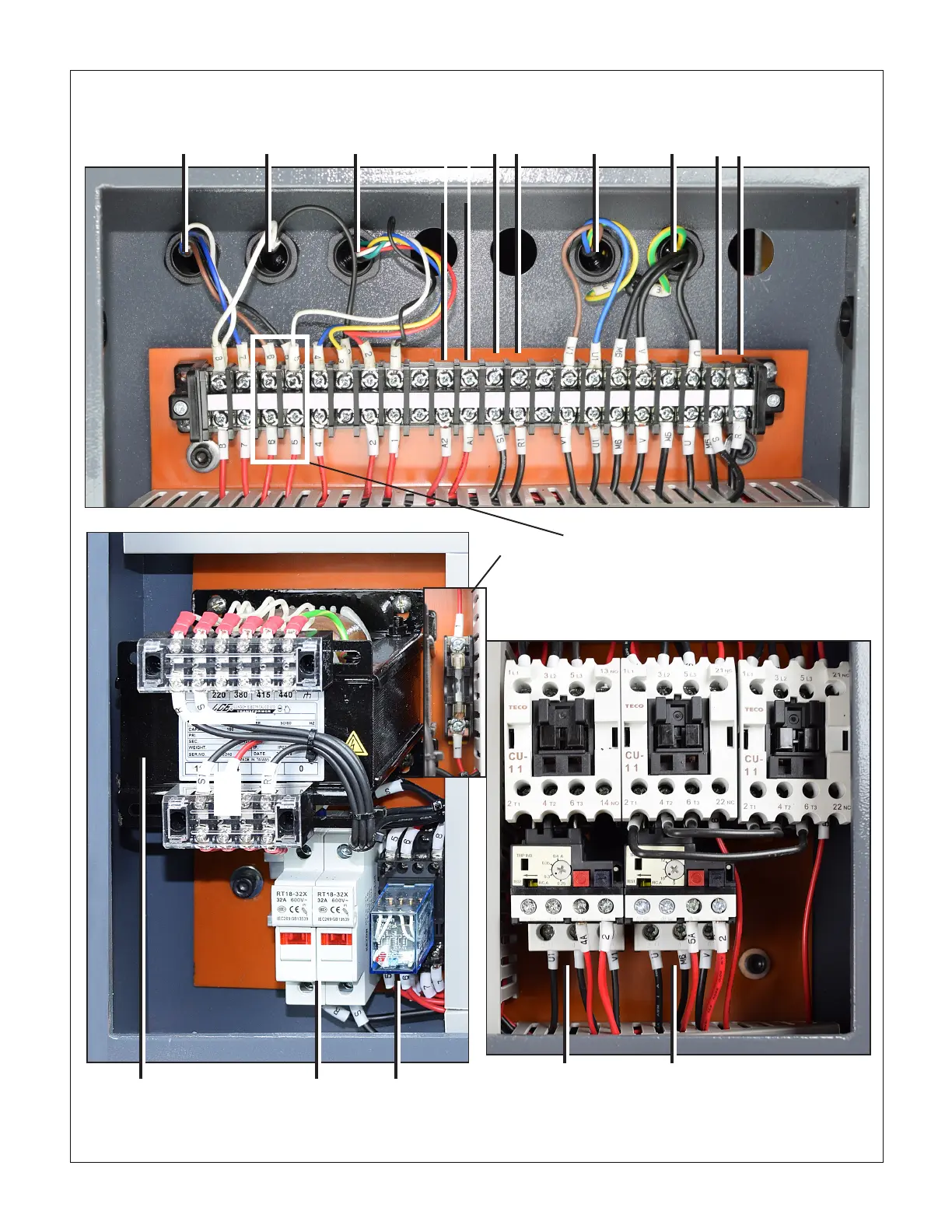

To motor
control switches
(tailstock end of
lathe)
To footbrake
interlock
switch
To front panel
controls (E-stop,
Jog, Coolant)
110 Vac out
for accesso-
ries such as
DRO (2 amp
max)
To
coolant
motor
To
spindle
motor
Overload
breaker
(coolant
motor)
Overload
breaker
(spindle
motor)
5A fuse
2 x 25A fuses
(not installed in
some models)
24Vac
relay
Transformer
24
Vac
out
Transformer
220 Vac in
(Connect Main
Power Here)
24Vac
Work Light
Labeled either
A1 and A2, or C1
and C2 on later
models
FORWARD REVERSECOOLANT
Power switching contactors
Motor direction (following page)
