21PM-727MV v6 2020-10 Copyright © 2020 Quality Machine Tools, LLC

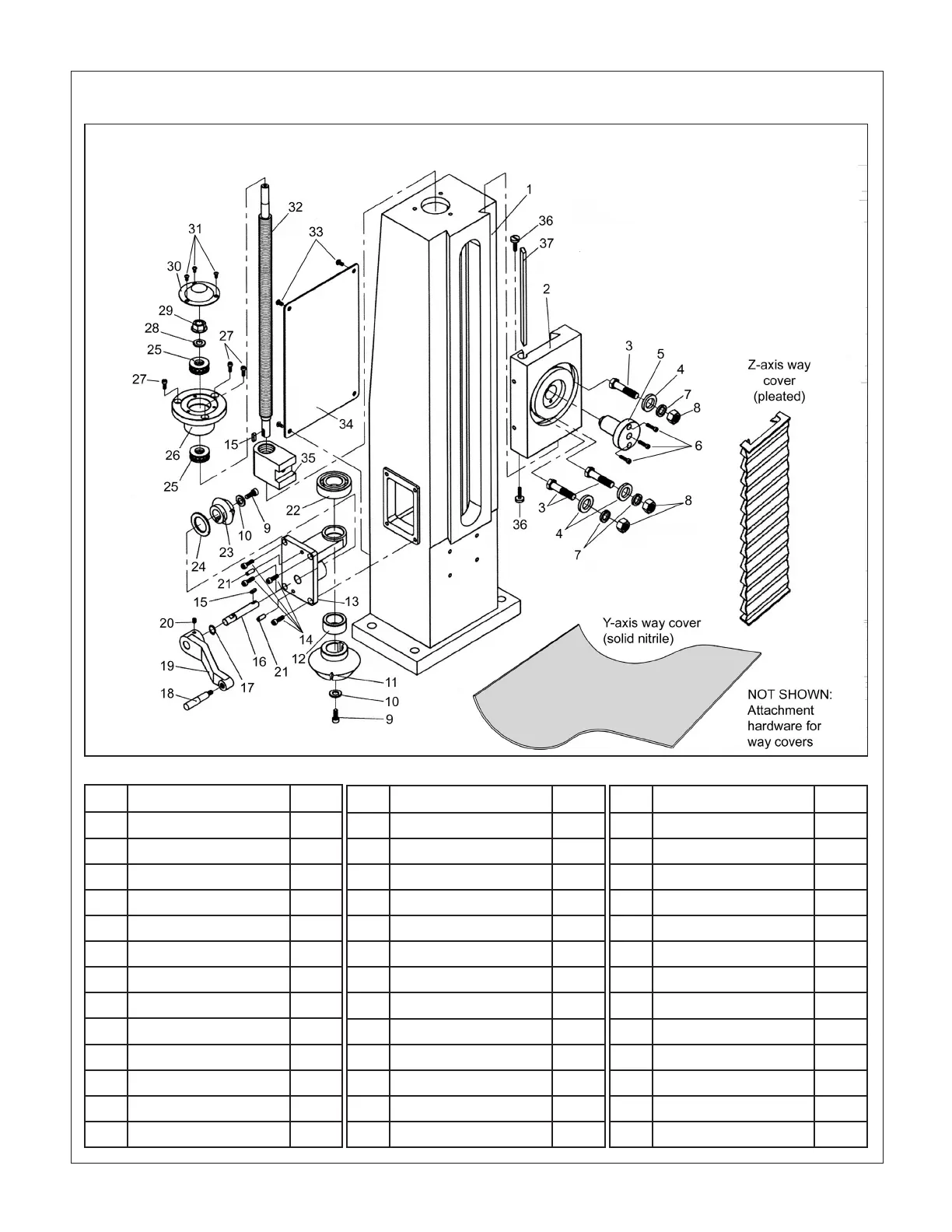

COLUMN COMPONENTS Fig 2
Ref Description Part
1 Column Z5759
2 Headstock base Z5760
3 Screw:M12x55 hex (3) Z5761
4 Washer: 12 (3) Z5762
5 Connector Z5763
6 Screw:M6x25 skt hd (3) Z5764
7 Washer, lock: 12 (3) Z5765
8 Nut: M12 hex (3) Z5766
9 Screw:M6x14 skt hd (2) Z5767
10 Washer: 6 (6) Z5768
11 Bevel gear Z5769
12 Bush Z5770
13 Z-axis crank base Z5771
Ref Description Part
14 Screw:M6x20 skt hd (4) Z5772
15 Key (2) Z5773
16 Shaft Z5774
17 Retaining ring: 15, ext Z5775
18 Handle Z5776
19 Z-axis crank Z5777
20 Screw: M8 x 12 set Z5778
21 Taper pin 6 x 18 (2) Z5779
22 Ball bearing: 6002 Z5780
23 Bevel Gear Z5781
24 Washer, special Z5782
25 Ball bearing: 51202 (2) Z5783
26 Bearing housing Z5784
Ref Description Part
27 Screw:M6x16 skt hd (3) Z5785
28 Washer: 14 Z5786
29 Nut, M14 ange Z5787
30 Cap Z5788
31 Screw:M4x8 button hd Z5789
32 Z-axis leadscrew Z5790
33 Screw:M5x8 button hd Z5791
34 Rear cover Z5792
35 Leadscrew nut Z5793
36 Gib screw (2) Z5794
37 Gib Z5795
16 Spring washer 5/16 Z5582
17 Nut 5/16 Z5583
There may be detail dierences
between this representative drawing
and the machine as supplied
