22
PM-727MV v6 2020-10
Copyright © 2020 Quality Machine Tools, LLC

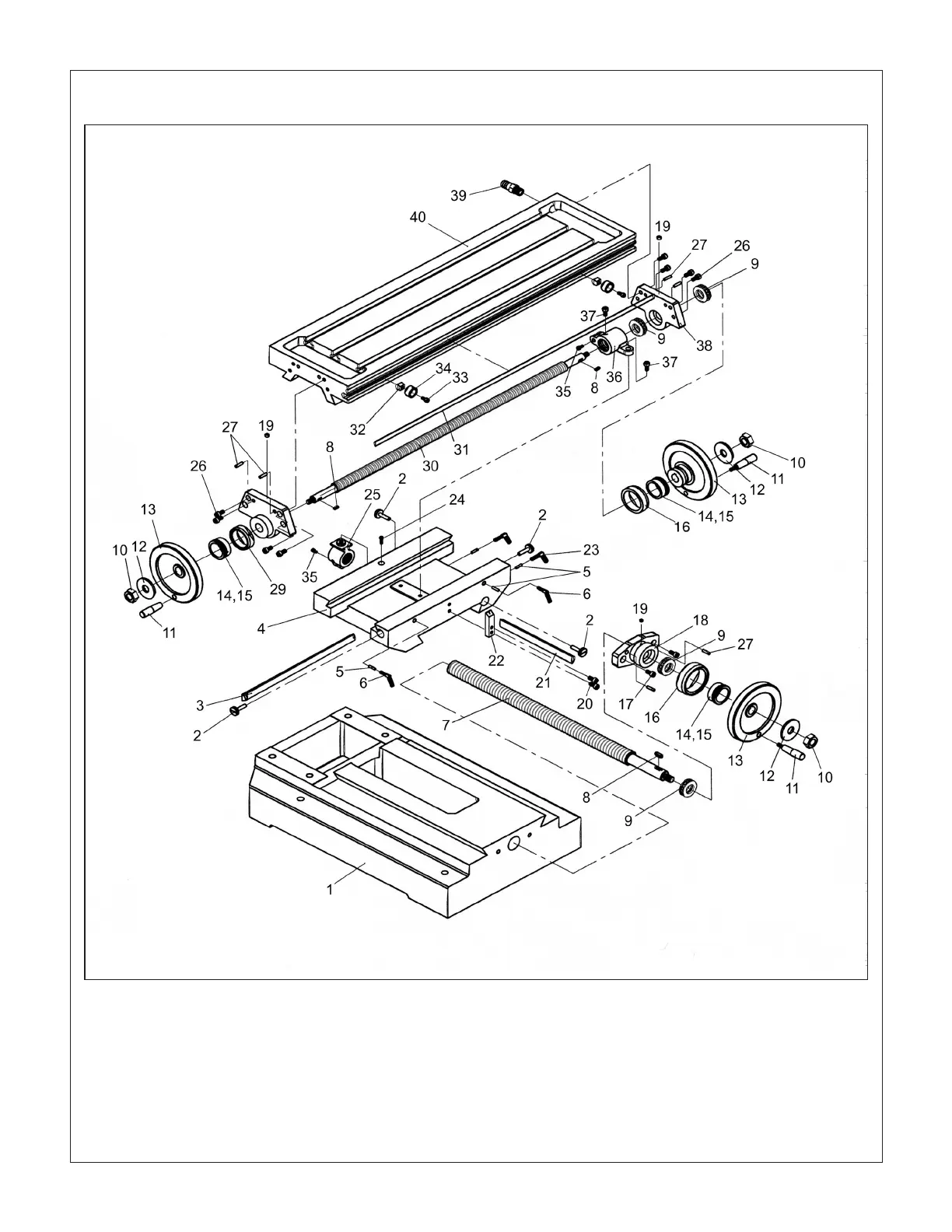

BASE & MILL TABLE COMPONENTS Fig 3
There may be detail dierences
between this representative drawing
and the machine as supplied
