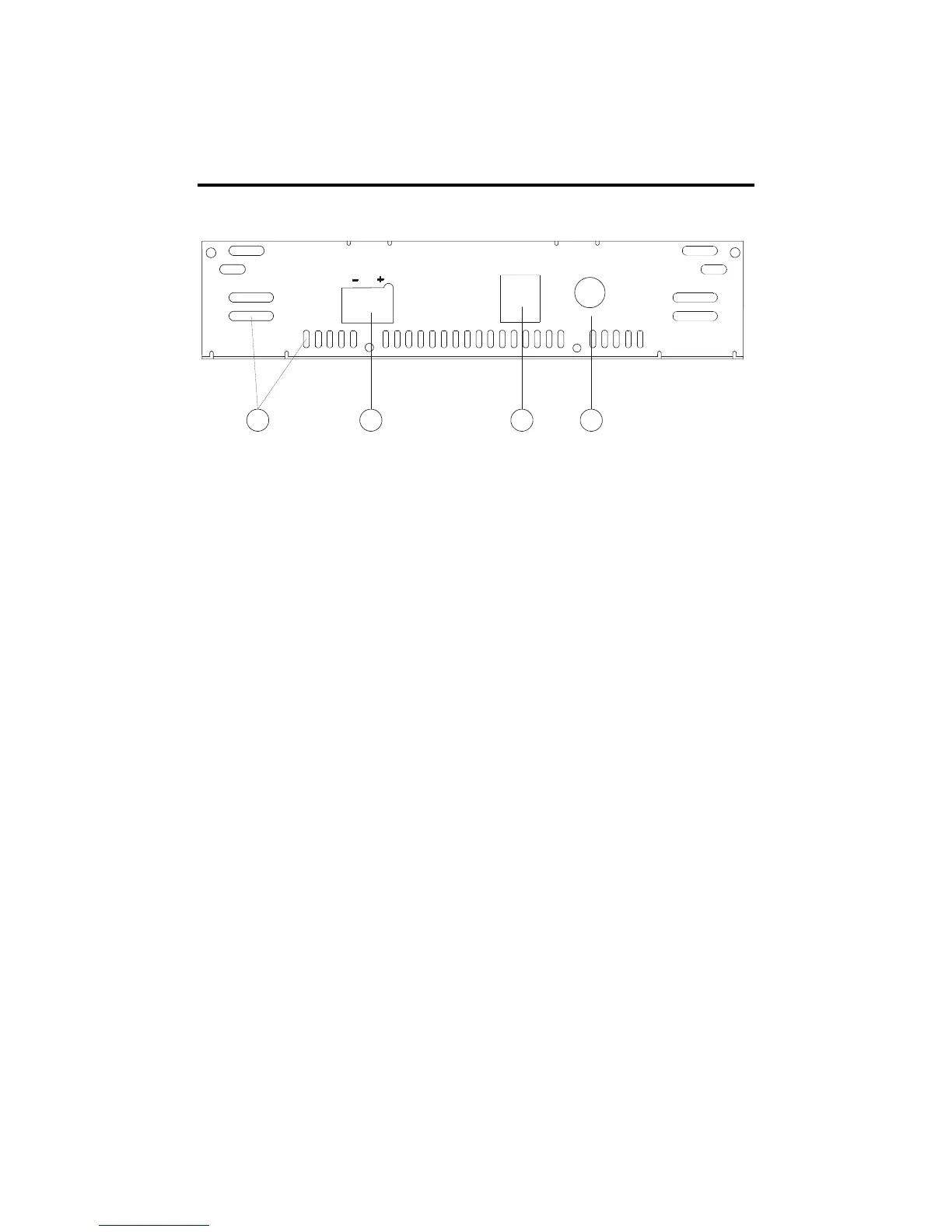

DCX 300.2, DCX 500.2 END PLATE DIAGRAM
1. Cooling Plenums: Maintain a minimum 2” clearance around
cooling plenums for proper amplifier cooling.
2. Power/Ground
PowerLock
TM
: After you have securely
connected your power and ground wires, plug in the Power/Ground
PowerLock
TM
connector here.
3. QBASS REMOTE
TM
: Plug in the data cable from the optional
QBASS REMOTE
TM
dash mounted level control here. (The remote
level control will bypass the amplifier’s on board
QBASS
TM
control.
4. QBASS
TM
Level Control: Controls bass boost, centered at 40Hz
with up to 18dB of boost.
DCX 300.2 DCX 500.2
End Pa nel
1 2 3 4
QBASS
REMOTE
QBASS
+16 0
14
