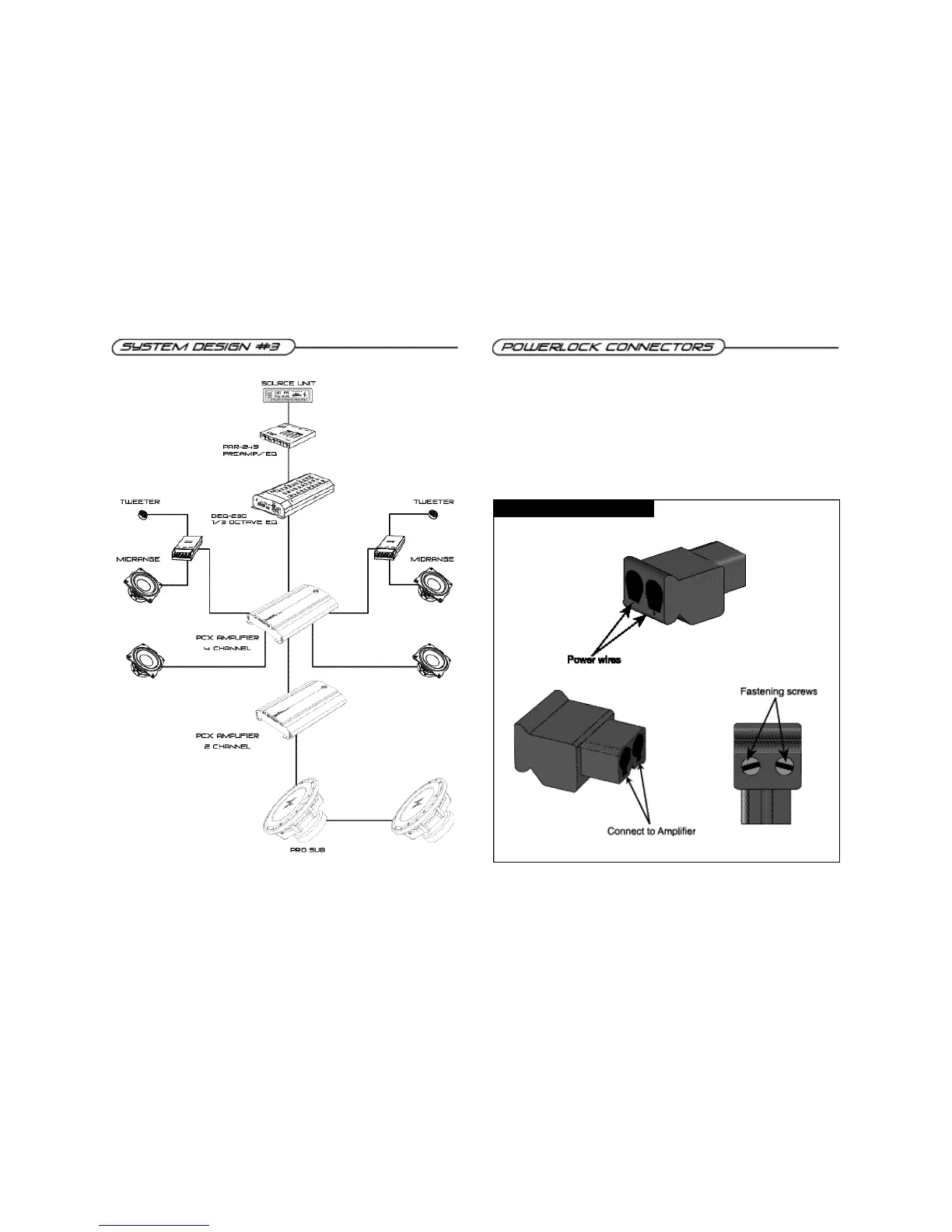

Once you have run both the power and ground wires, it's time to connect the
cables to the amplifier. Cut off excess wire and, using wire strippers, strip the ends
of the power and ground cables approximately 1/4 inch. Locate the PowerLock
power and ground connector (supplied). With a small flat bladed screw driver,
loosen the screws before attempting to insert the cables. Insert the wires into the
appropriate hole, and tighten the screws. Once the wires are secure, the
P o w e rL o c k ™ may be plugged into the amplifier. The Power/Ground
P o w e rL o c k ™ will accommodate 6 gauge wire for the PCX 440 and PCX 480,
and 4 gauge wire for the PCX 4125 and PCX 5800.
Power/Ground PowerLock™
22 7
