12.
Replace the crankarm(s) per Procedure 7.6.

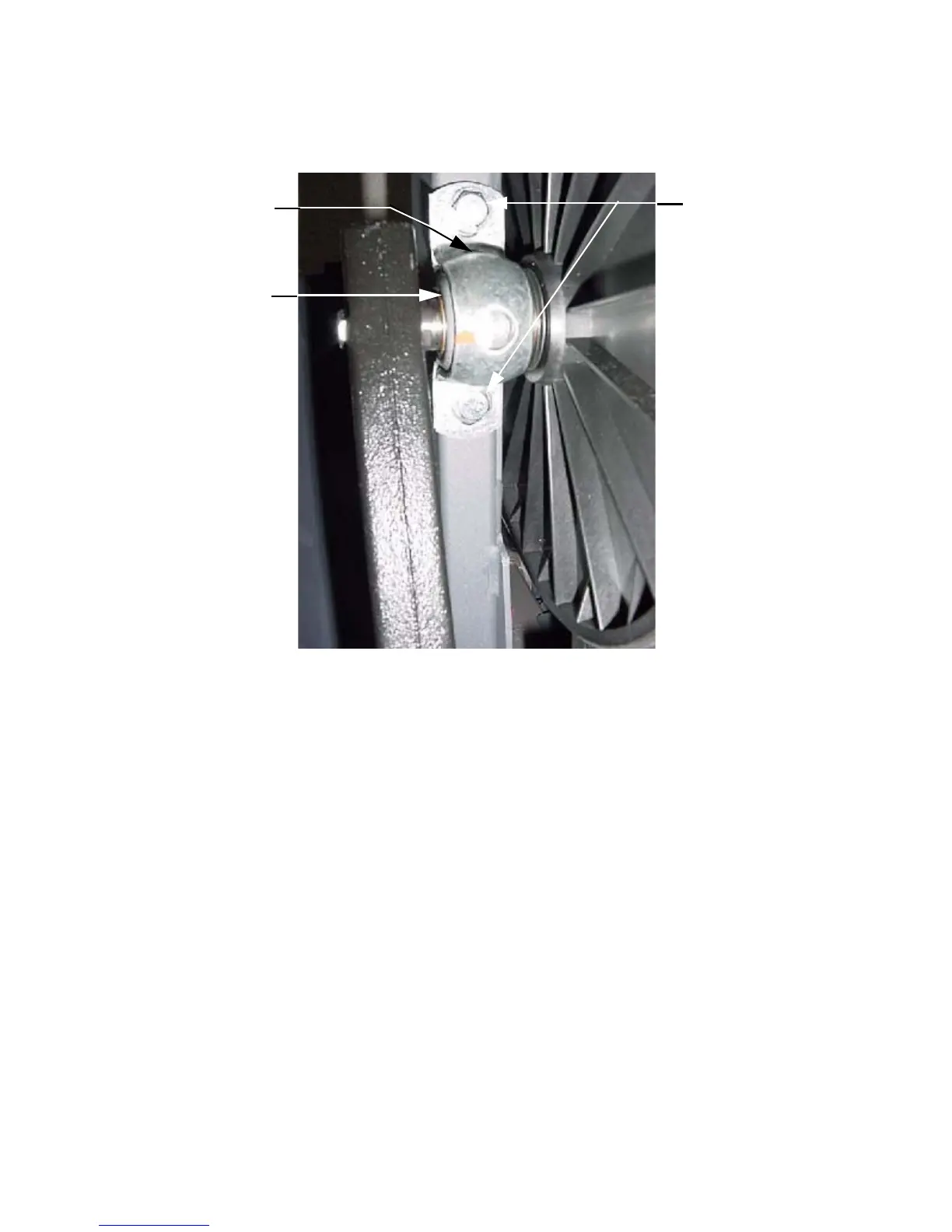

Diagram 7.5 - Pill
ow Block Bearings
13.
Replace the stairarms per Procedure 7.17.
14.
Check drive input adju
stment per Procedure 5.4.
15.
Replace the top, left and right cover section
s per Procedure 7.1.
Mounting Bolt
Pillow Block Bearing
St
amping
47
49
Table of Contents
Section One - Things You Should Know
2
Right, Left, Front, and Back Conventions
2
General Information
3
Required Tools and Equipment
4
Section Three - Preventive Maintenance
12
Procedure 5.1 - Measuring the Resistance of an Eddy Current Magnet
14
Procedure 5.2 - Inspecting and Adjusting Belt Alignment and Tension
15
Procedure 5.3 - Calibrating the Lift Motor
19
Procedure 5.4 - Drive Input Assembly Adjustments
21
Procedure 6.1 - Troubleshooting the Lower and Upper Data Cable
24
Procedure 6.2 - Troubleshooting the Keypad and Upper PCA
25
Procedure 6.3 - Troubleshooting the Speed Sensor
27
Procedure 6.4 - Troubleshooting the Eddy Current System
29
Procedure 6.5 - Upper Display Does Not Illuminate
31
Procedure 6.6 - Troubleshooting the Lift System
33
Procedure 7.1 - Replacing or Removing a Rear Cover Section
35
Procedure 7.3 - Replacing a Lower PCA
39
Procedure 7.5 - Replacing a Power Entry Module
43
Procedure 7.6 - Replacing a Crankarm Assembly
45
Procedure 7.7 - Replacing a Pillow Block Bearing
47
Procedure 7.8 - Replacing an Input Drive Assembly
49
Procedure 7.9 - Replacing an Input Pulley Belt
51
Procedure 7.10 - Replacing a Step-Up Pulley Belt
53
Procedure 7.11 - Replacing a Step-Up Pulley Assembly
55
Procedure 7.12 - Replacing a Speed Sensor Assembly
56
Procedure 7.14 - Replacing a Stairarm Pivot Block
58
Procedure 7.15 - Replacing a Wheel Assembly
60
Procedure 7.16 - Replacing a Stairarm Pedal
62
Procedure 7.17 - Replacing a Stairarm
63
Procedure 7.18 - Replacing a Ramp Assembly
65
Procedure 7.19 - Replacing a Moveable Handlebar
67
Procedure 7.20 - Replacing a Idler Pulley
69
Procedure 7.21 - Replacing a Front Cover Section
70
Procedure 7.22 - Replacing an Outrigger Tube
71
Procedure 7.23 - Replacing a Ramp Mounting Bracket
73
Procedure 7.24 - Replacing a Power Entry Module Fuse
74
