Procedure 7.19 - Replacing a Moveable Handlebar
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm, when the
rear covers are removed.
Procedure
1. Set the on/off switch in the “off” position, then unplug the power cord from the wall outlet.
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
2. Remove the bolt and nut that fastens the forward end of the connecting link to the moveable
handlebar. See Diagram 7.15

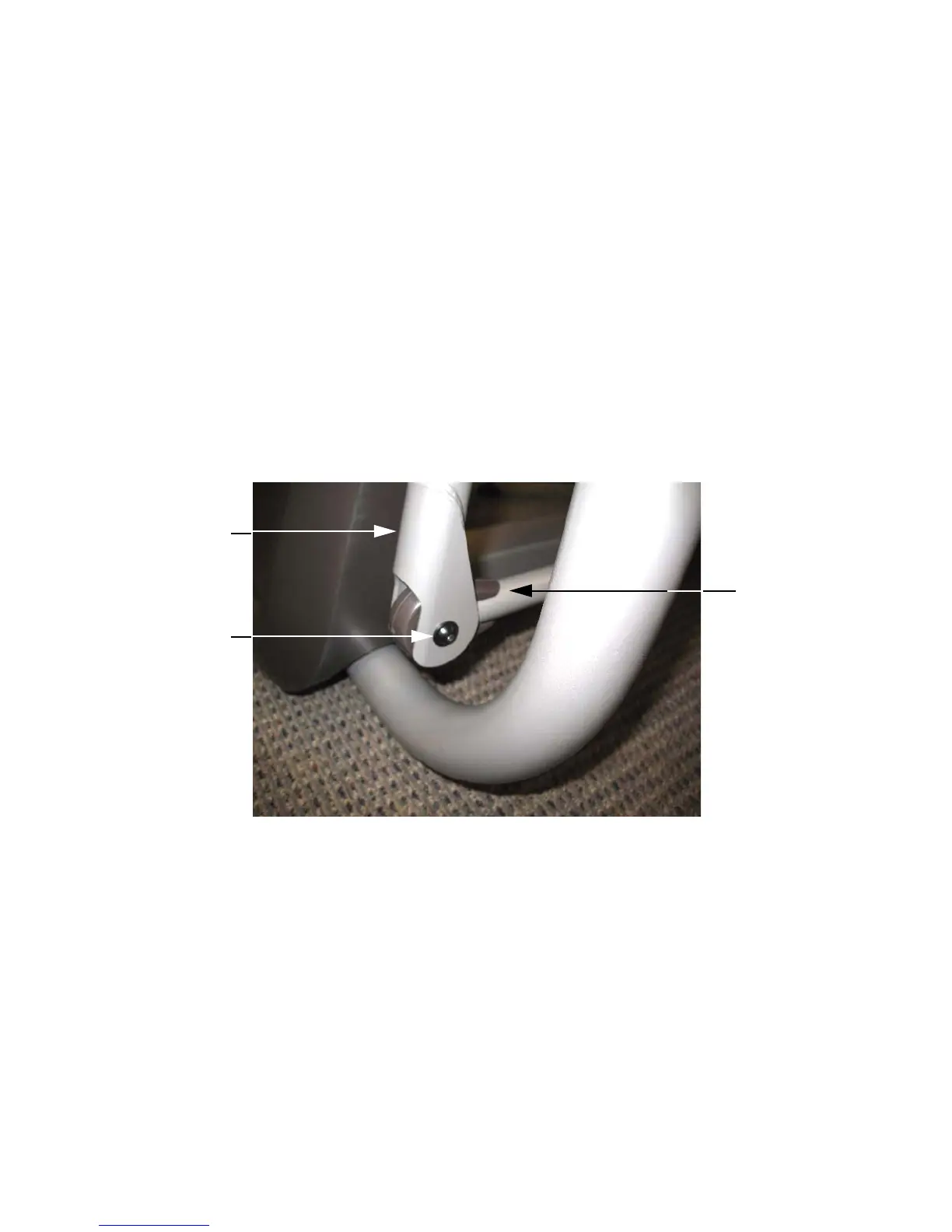

Diagram 7.15 - Moveable Handlebar, Lower End
3. Unsnap and remove the cover from the center of the moveable handlebar.
4. Remove the bolt that fastens the moveable handlebar to the outrigger. See Diagram 7.16.
Remove the handlebar.
Connecting
Link
Moveable
Handlebar
Mounting
Bolt
