10. Carefully slide the outrigger away from the frame to expose the data cables and connector
module at the bottom front portion of the right outrigger.
11. Remove the data cable from the outrigger.
12. Feed a wire into the replacement outrigger until it comes out of the opening at the other end.
Tape the data cable, removed in step 11 to the wire and carefully draw the data cable into
the outrigger until the data cable appears at the other end.
13. Connect the data cable to the connector module. Slide the right outrigger into its mounting
position and feed the upper end of the data cable into the opening in the upright support.
14. Remove the foot from the outrigger and install it on the replacement outrigger. See Diagram
7.20.

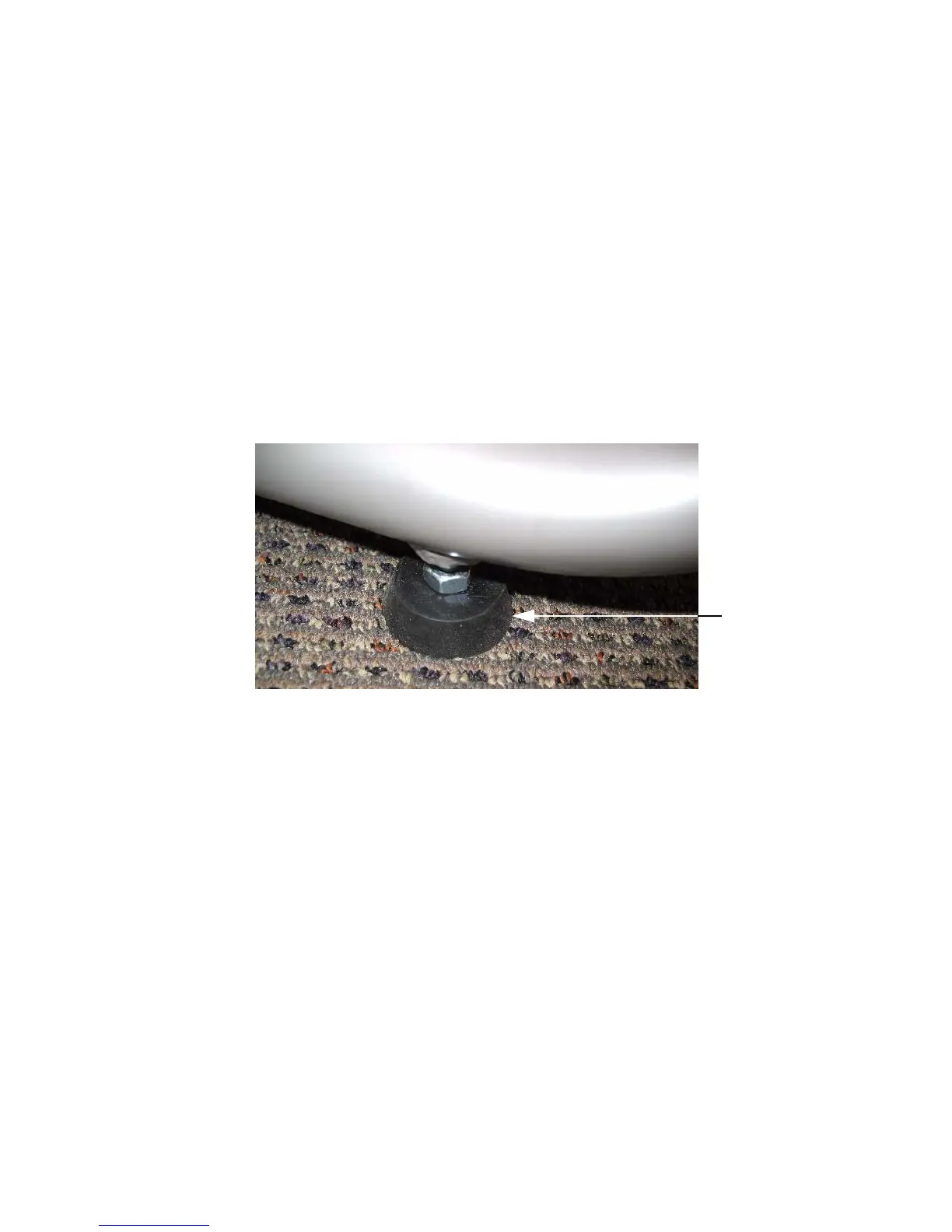

Diagram 7.20 - Outrigger Foot
15. Hand start but do not tighten the four lower and three upper outrigger mounting bolts
removed in steps 5 and 6. Tighten these seven bolts after all have been hand started.
16. If you are replacing a left outrigger, skip to step 18
17. Place the ferrite, removed in step 4 around the data cable and heart rate cable and snap it
into place.
18. Reconnect the data cable and heart rate cable to the rear of the display assembly and set it
in its mounting position on the upright support.
19. Fasten the display assembly to the upright support with the bolts removed in step 5.
20. Adjust the outrigger foot, installed in step 14, to level the EFX.
21. Check operation as described in Section Four.
Foot
