9.23, 9.27 Treadmill
Page 38
Procedure 6.5 - Replacing Drive Motor
1. Set the treadmill’s on/off switch in the “off” position and remove the treadmill’s power cord
from the AC outlet.
2. Remove the treadmill’s hood.
3. The drive motor and flywheel are balanced as a matched pair. Since the flywheel is
balanced to a specific motor, flywheels should not be removed from one motor and installed
on a different motor. If the drive motor is replaced, the drive motor and flywheel should be
replaced as a unit.
4. Disconnect the red and black drive motor wires from the lower PCA and green-yellow wire
from its frame ground.

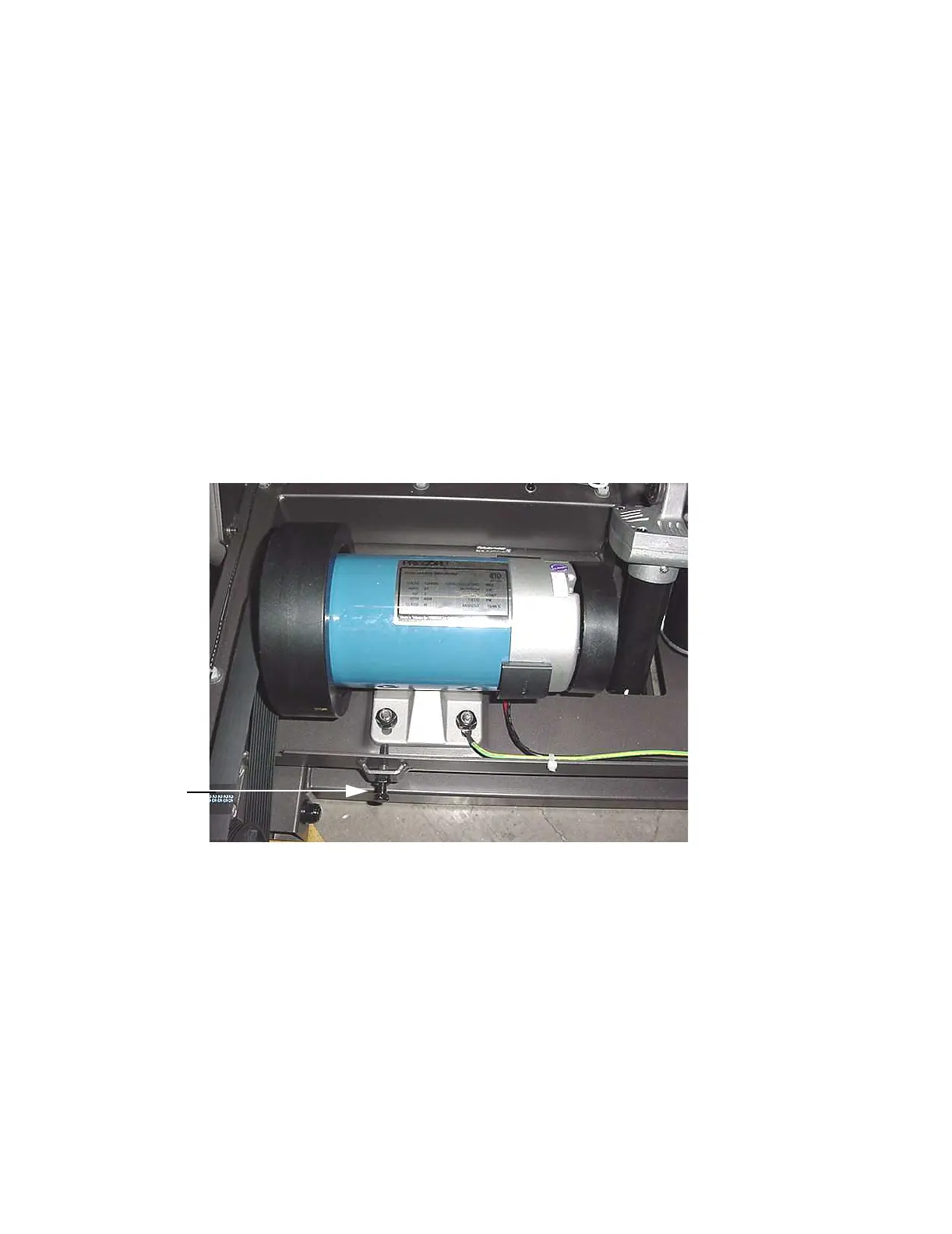

Diagram 6.4 - Drive Motor Mounting
5. Loosen the four drive motor mounting nuts. See Diagram 6.4. Loosen the drive belt tension
adjustment bolt to remove tension from the drive belt. Remove the drive belt from the drive
motor pulley.
6. Remove the four nuts that fasten the drive motor to its mounting base. Remove the drive
motor from the treadmill.
7. Set the replacement drive motor in it’s mounting position. Replace and hand tighten the
drive motor mounting nuts removed in step 6. Set the drive belt in place on the drive motor
pulley.
8. Tension the drive belt and mount the drive motor per Procedure 4.2.
Drive Belt
Tension Adj.
Bolt
To Next Page
