Precor 9.23 Service Manual

9.23, 9.27 Treadmill
20081-118 Page 41
Procedure 6.7 - Replacing the On/Off Switch
1. Set the treadmill’s on/off switch in the “off” position and remove the treadmill’s power cord
from the AC outlet.
2. Remove the treadmill’s hood.
3. Make note of the location of the switch’s wring and remove the white and black wires from
the on/off switch.
4. Depress the four clips on the on/off switch (two on each side) and push the on/off switch out
the bottom of the treadmill. Refer to Diagram 6.6.

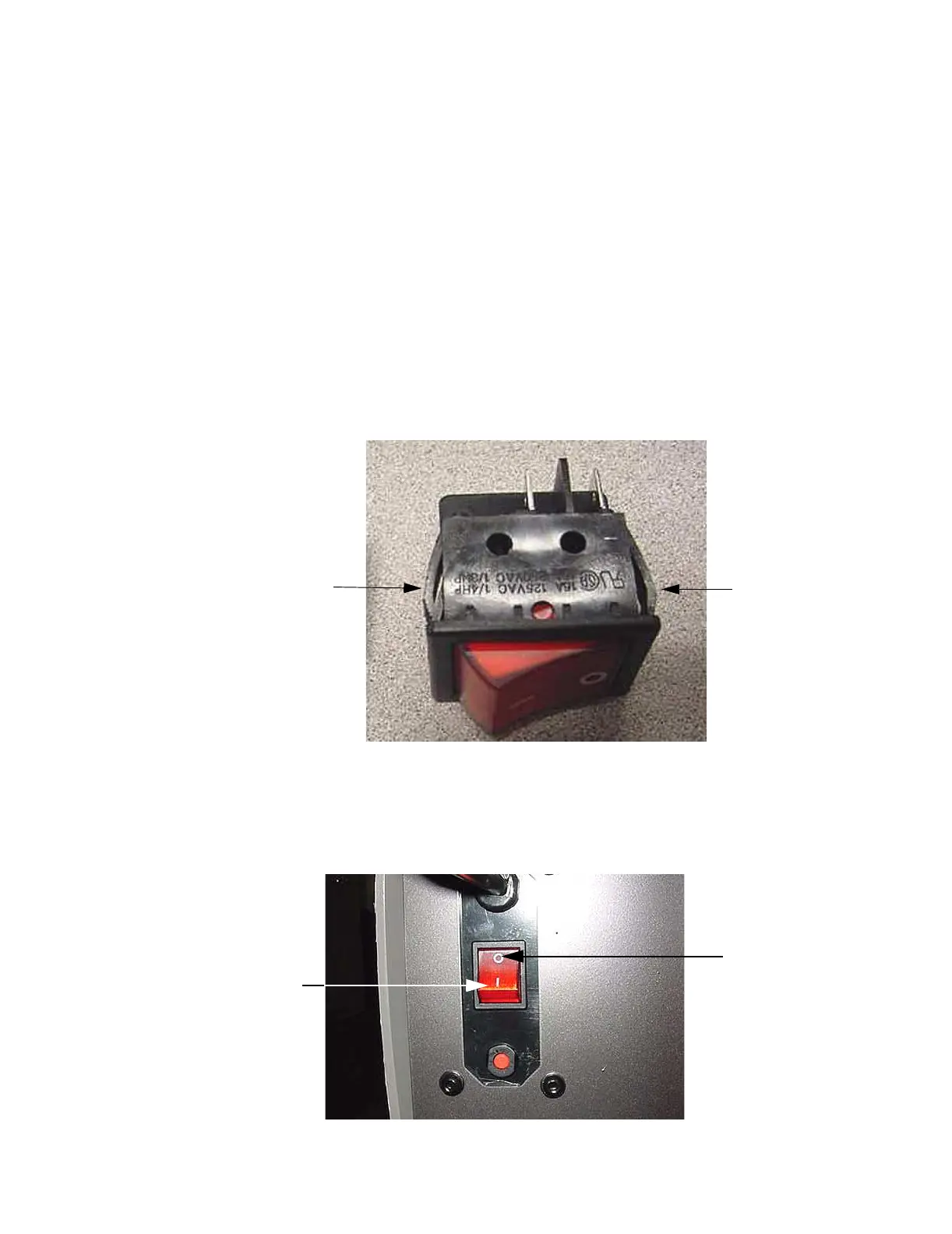

Diagram 6.6 - On/Off Switch
5. Orient the on/off switch so that the “off” position is nearest the power cord, refer to Diagram
6.7. Insert the replacement on/off switch into its mounting hole from the bottom of the
treadmill and press it into the mounting plate until it snaps into place.
Diagram 6.7 - On/Off Switch Orientation
Clip
Clip
Off
On
