9.23, 9.27 Treadmill
20081-118 Page 45
Procedure 6.10 - Replacing the Display Face with Keypad
Note: The keypad is furnished as part of the display face, the display face must be replaced
when a replacement keypad is required.
1. Set the treadmill’s on/off switch in the “off” position and remove the treadmill’s power cord
from the AC outlet.
2. A grounded anti-static wrist strap must be worn whenever the upper PCA is being handled.
3. Remove the four screws that fasten the backplate to the rear of the console and remove the
console from the backplate. Refer to Diagram 6.9.

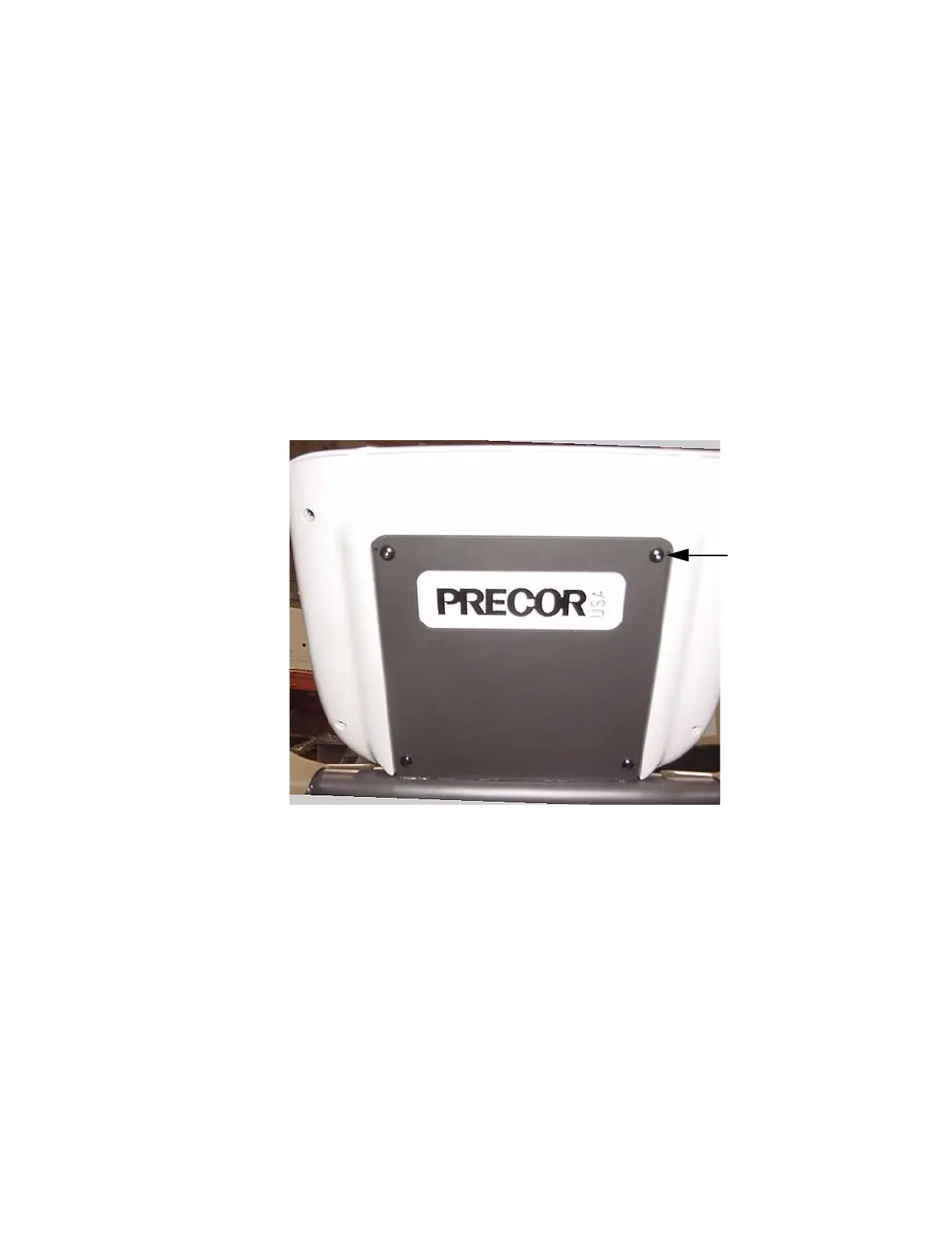

Diagram 6.9 - Console, Rear View
4. Disconnect the data cable and heart rate cable (9.27 only) from the console
5. Remove the six screws that fasten the display face to the console rear cover. See Diagram
5.1.
6. Disconnect the JK6 keypad connector, the JK7 safety switch connector and the JK10 user
1/2 keypad connector from the upper PCA.
7. Remove the two screws that fasten the safety switch to the display face and remove the
safety switch.
8. Remove the four screws that fasten the upper PCA to the display face and remove the
upper PCA from the display face.
To Next Page
