Precor 9.23 - Long-Term Treadmill Storage

9.23, 9.27 Treadmill
20081-118 Page 57

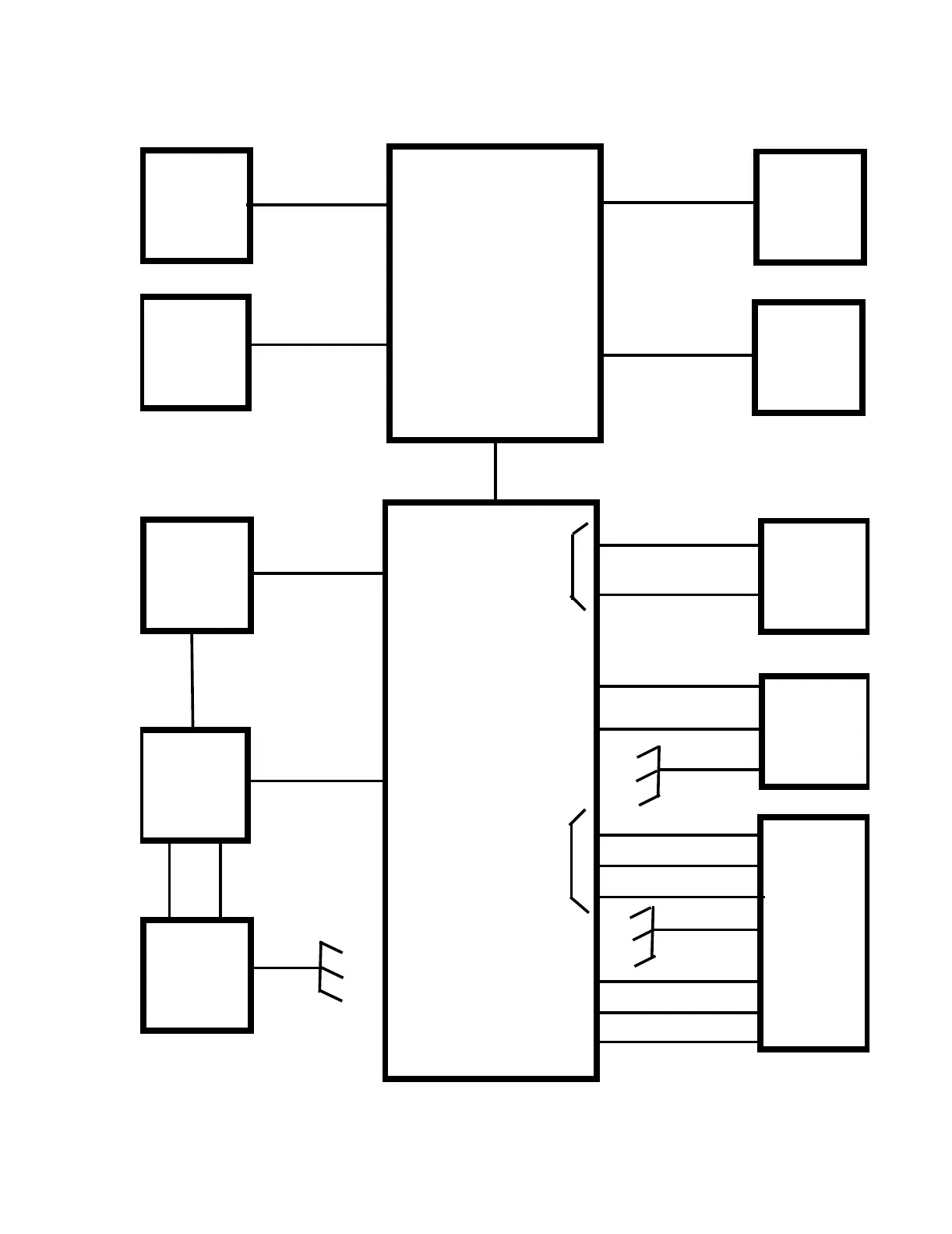

Diagram 7.1 - Wiring Diagram
Upper
PCA
JK7
JK5
JK6
JK10
JK8
Safety
Switch
HHHR
Grips
Keypad
User 1/2
Keypad
Lower
PCA
JK1
JK2
JK4
T1 (AC1)
T2 (AC2)
T3 (M+)
T4 (M-)
Up
Down
Com
W
W
BK
W
BK
BK
BK-W
R
BK
R
W
BK
R
W
BK
G-Y
G-Y
G-Y
Circuit
Breaker
On/Off
Switch
A.C.
Power
Cord
Speed
Sensor
Drive
Motor
Incline
Motor
