2. Fasten the cover plate to the second lower corner cover using:
Two #8 self-tapping screws

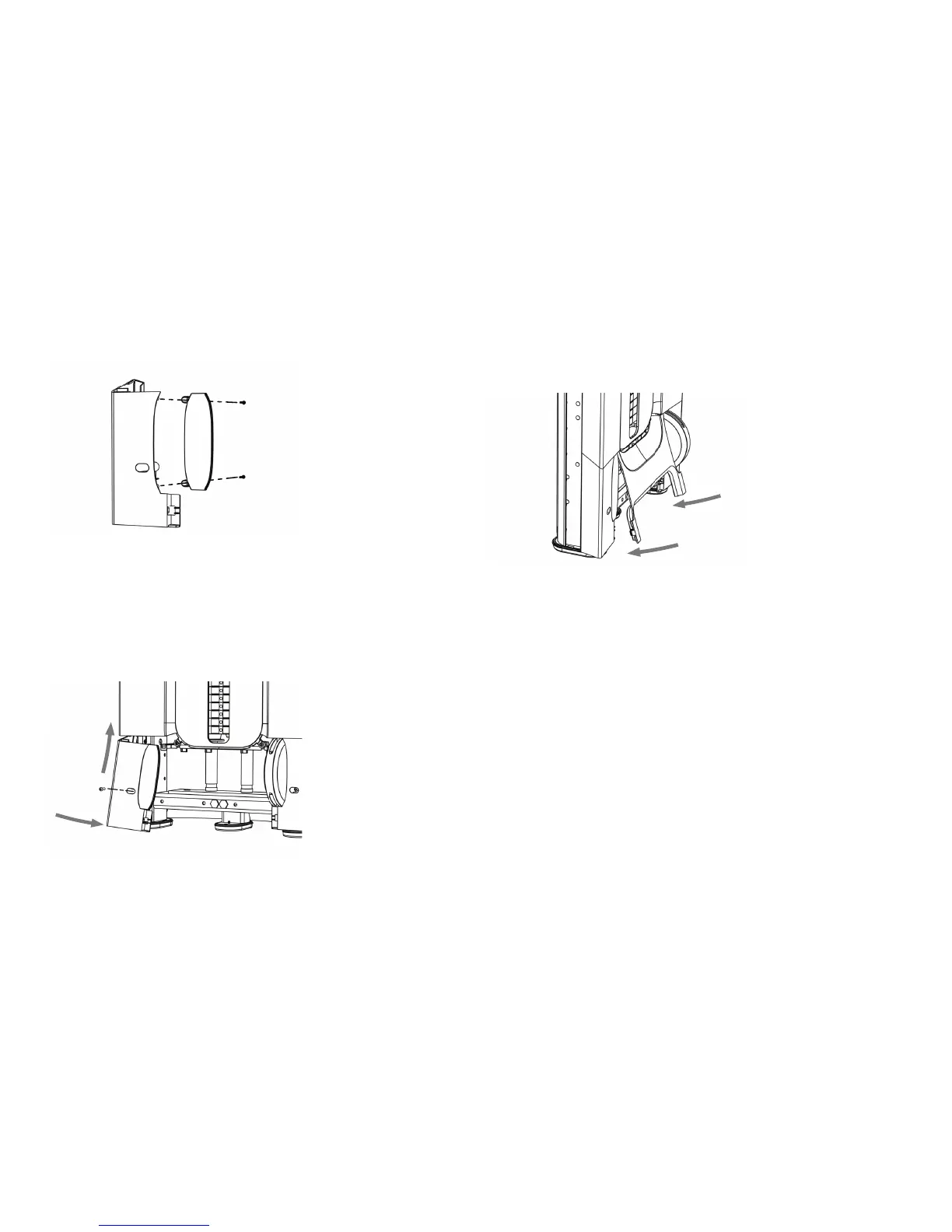

Figure 12: Attachment of cover plate to the lower corner cover
3. Slide the retaining feature on the second lower corner cover under
the front shroud on the remaining corner and attach the second
lower corner cover using:
One ¹⁄₄”- 20 buttonhead screw
Tighten screw using a ⁵₃₂” hex key until snug.
Figure 13: Tab slides under the front shroud
4. Attach the lower middle cover by squeezing and snapping its tabs
into the slots in the frame.
5. Firmly press the tabs located at the top of the lower middle cover
under the bottom edge of the front shroud.
Figure 14: Lower middle cover attachment
6. Tighten all bottom shroud fasteners until snug.
Chest Press Assembly and Delivery Guide: Assemble the Shroud
9
