Experience Strength™ C-Line Owner’s Manual: Before You Begin
5
Shroud Removal
The Experience Strength product line includes a shroud that must be
removed to perform the maintenance described in this manual.
Important: Do not remove the shroud while the equipment is in use.
Use the following instructions to remove the shroud:
1. Grasp the back of the Top Cover with both hands near the middle.
2. Apply upward pressure to remove the Top Cover.
Note: It may help to use your palms to push forward on the top of the
Upper Back Shroud while pushing up on the Top Cover.
3. Pull the Upper Back Shroud up and away from the unit to remove it.

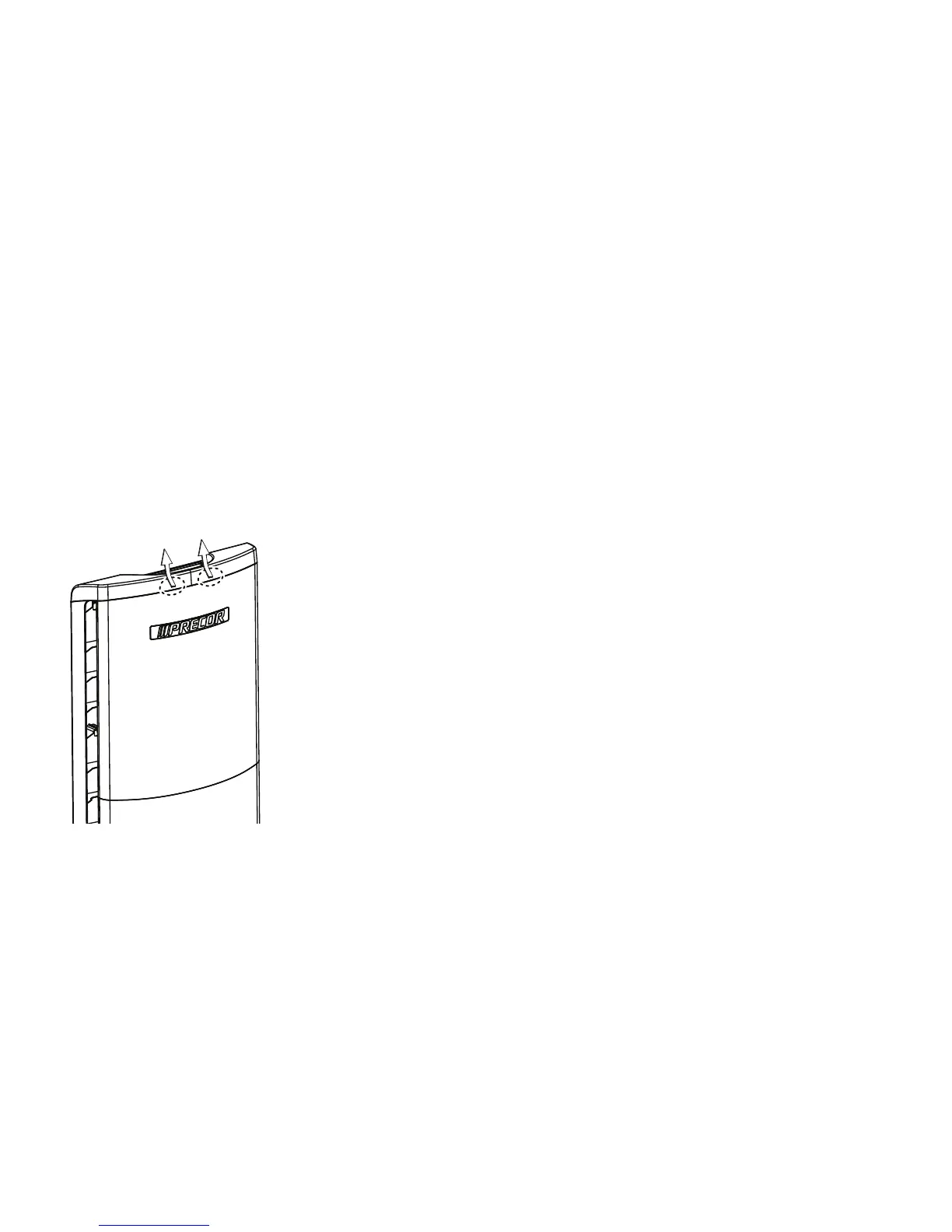

Figure 1: Removing the Top Cover
Perform the necessary maintenance. When you are finished, replace the
shroud.
1. Attach the Upper Back Shroud first, aligning the tabs at the bottom with
the Lower Back Shroud.
Note: Make sure the clips at the top of the Upper Back Shroud snap
securely to the Weight Stack Frame.
2. Attach the Top Cover, making sure that it snaps securely into place.
