Chest Press Assembly and Delivery Guide: Assemble the Shroud
11
7. Insert the tabs in the top corners of the upper back into the square
holes at the top of the weight stack frame and push the corners in
until the tabs lock into place.
To Install the Top Cover:
1. Insert the tabs on the top cover into the matching slots in the
shroud assembly.
2. Push down on the top cover until its tabs lock into place.

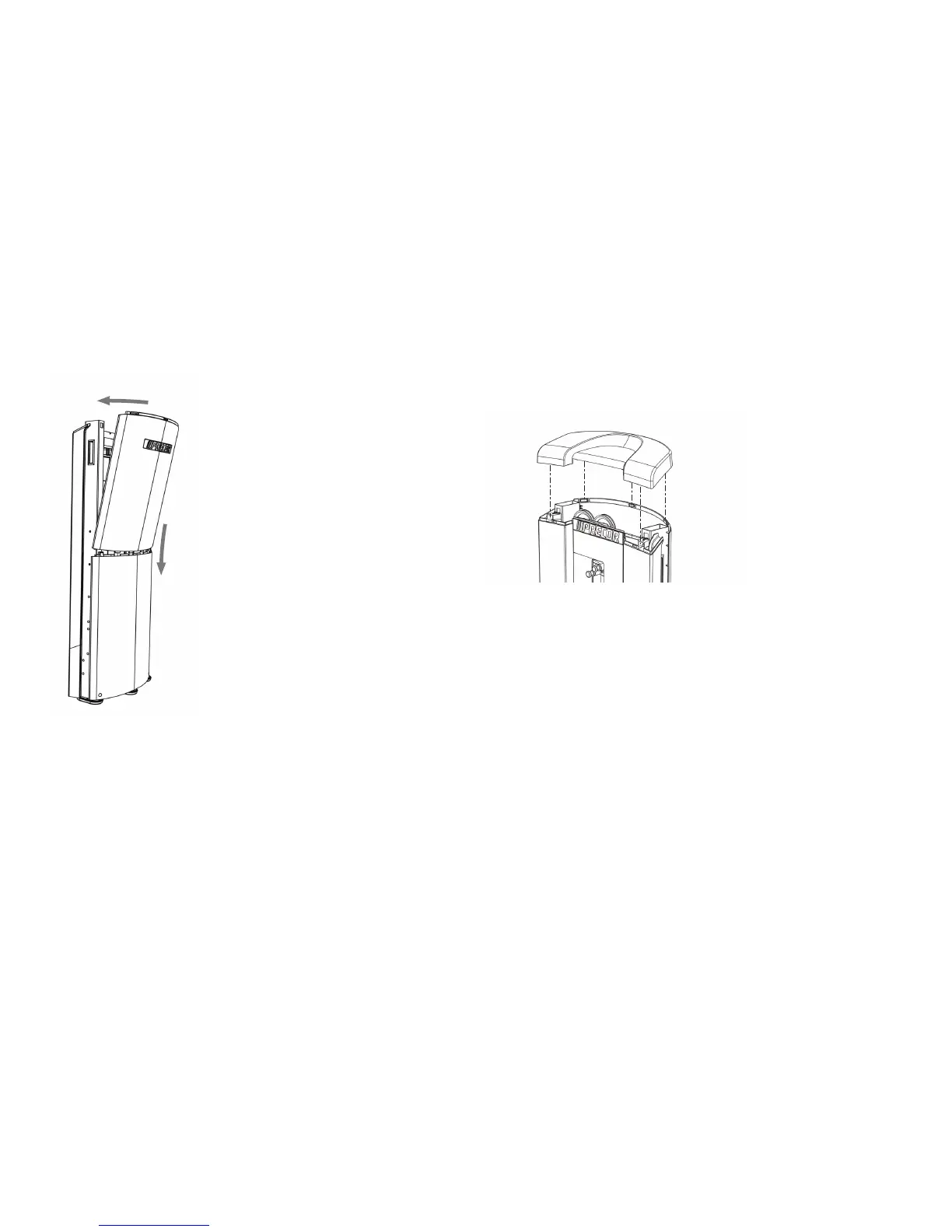

Figure 17: Shroud top cover attachment
To Remove the Nameplate Protective Film:
1. Locate the Precor nameplates on the front and back sides of the
assembled shroud.
2. Peel the protective film off each Precor nameplate.
Figure 16: Upper back shroud attachment
To Next Page
