To Separate the Weight Tower from the Exercise
Station:
Note: The exercise station is attached to the weight tower at a side
location and a bottom location.
1. Locate the side area where the exercise station is bolted to the
weight tower.
2. Remove the upper and lower bolts using a ³₁₆” hex key and a 1”
open-end wrench.

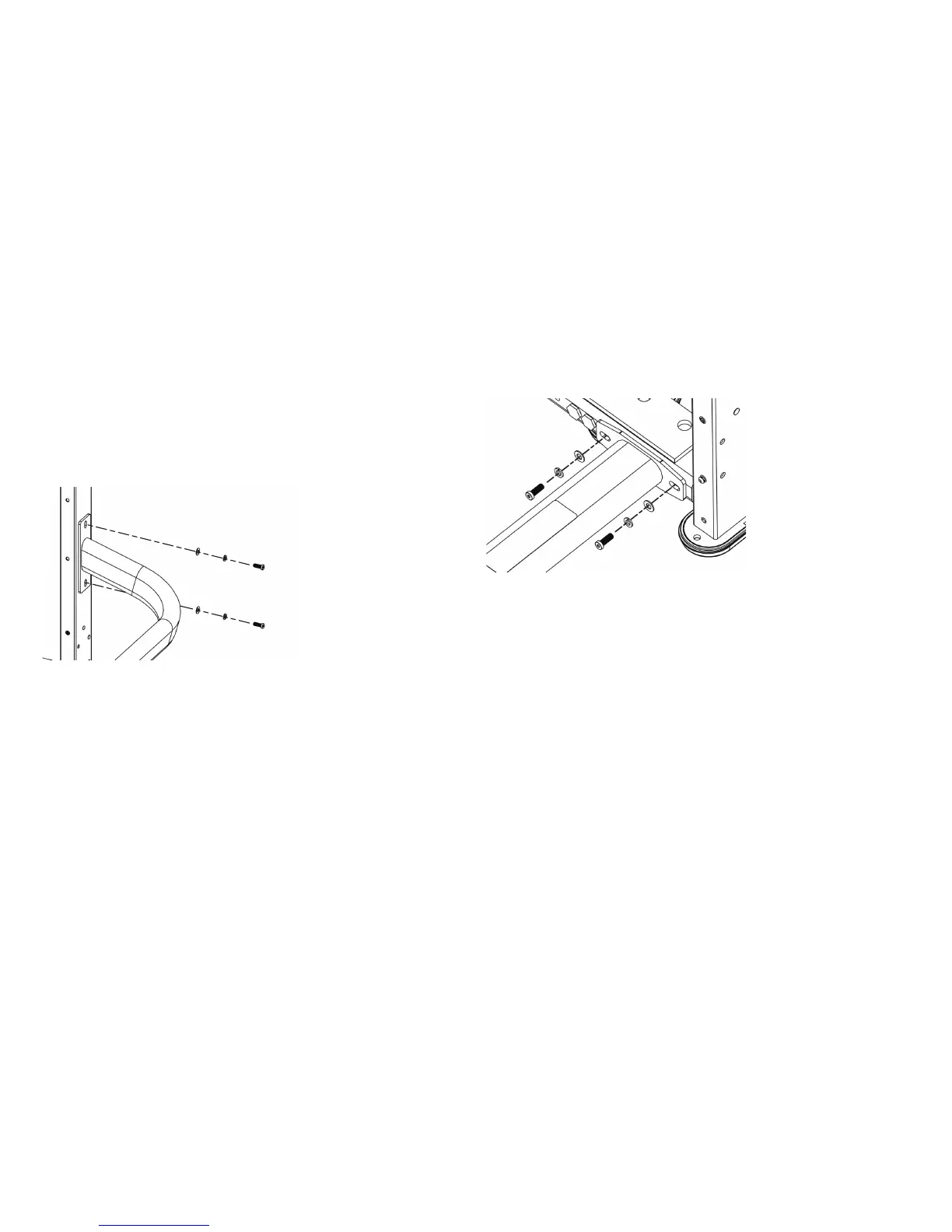

Figure 18: Remove side bolts from the weight tower
3. Locate the bottom area where the exercise station is bolted to the
weight tower.
4. Remove the bolts on the bottom area using a ³₁₆” hex key and a 1”
open-end wrench.
Figure 19: Remove bottom bolts from the weight tower
Chest Press Assembly and Delivery Guide: Disassemble the Equipment
13
