C954, C956 Treadmill
Page 1-40 Page 40
Procedure 6.2 - Replacing the Lift Platform
1. Set the treadmill circuit breaker in the “off” position. Remove the AC line cord from the AC
outlet.
2. Remove the treadmill hood. Carefully, lay the treadmill on its right side.
3. Remove the hitch pin and clevis pin that fastens the lift motor tube to the lift platform. While
the lift tube is not fastened to the lift platform, care must be taken to not allow the lift tube to
rotate. If the lift tube rotates, the lift motor must be re-calibrated per Procedure 4.1.
4. For version 1 & 2 units continue with step 5. Skip to step 8 for version 3 units.
5. Remove the four bolts (2 each side) that fasten the lift platform to the treadmill frame. See
Diagram 6.1. Remove the lift platform from the treadmill.

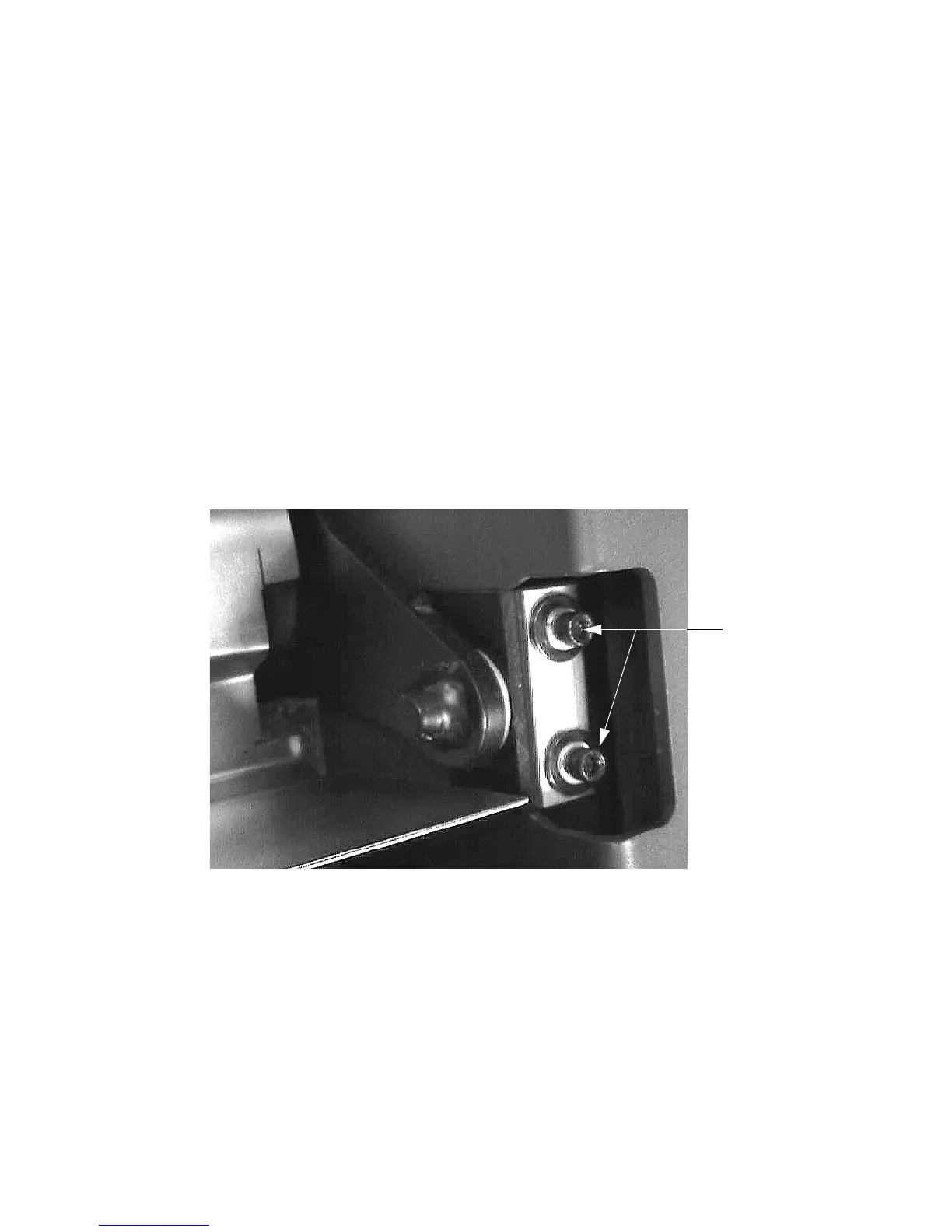

Diagram 6.1 - Lift Platform Mounting (version 1 & 2)
6. Set the replacement lift platform in its mounting position. Start all four lift platform bolts.
Securely tighten all four lift platform bolts.
7. Fasten the lift platform to the lift motor tube with the clevis and hitch pins removed in step 3.
Do not allow the lift tube to rotate. Skip to step 18.
8. Remove the lift platform retaining bolt from both the left and right hand side of the lift
platform. See diagram 6.2.
To Next Page
