C954, C956 Treadmill
20077-107 Page 53
Procedure 6.10 - Replacing the Line Cord
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmills line cord from
the AC outlet.
2. For versions 1 and 2 units, continue with step 3. Skip to step 11 for version 3 units.
3. Remove the four screws that fasten the circuit breaker mounting plate to the treadmill. See
Diagram 6.14.
4. Remove the nut that fastens the line cords ground wire (green wire) to the circuit breaker
mounting plate.
5. Disconnect the line cords brown wire from the circuit breaker. Disconnect the line cords blue
wire from the line filter (120 Vac units) or from the circuit breaker (240 Vac units).
6. Remove the line cords strain relief mounting nut and remove the line cord.
7. Remove the mounting nut from the replacement line cord and feed the line cord through the
circuit breaker mounting plate. Fasten the line cord to the circuit breaker mounting plate with
the nut removed in the previous step.
8. Connect the line cords brown wire to the circuit breaker per Diagram 6.9.
9. Connect the line cords blue wire to the line filter per Diagram 6.10 (120 Vac units) or to the
circuit breaker per Diagram 6.12 (240 Vac units).
10. Connect the line cords ground wire (green wire) to the circuit breaker mounting panel with
the hardware removed in step 3.
11. Version 3 units are equipped with a detachable line cord. Loosen the line cord clamping
screw. See Diagram 6.14.

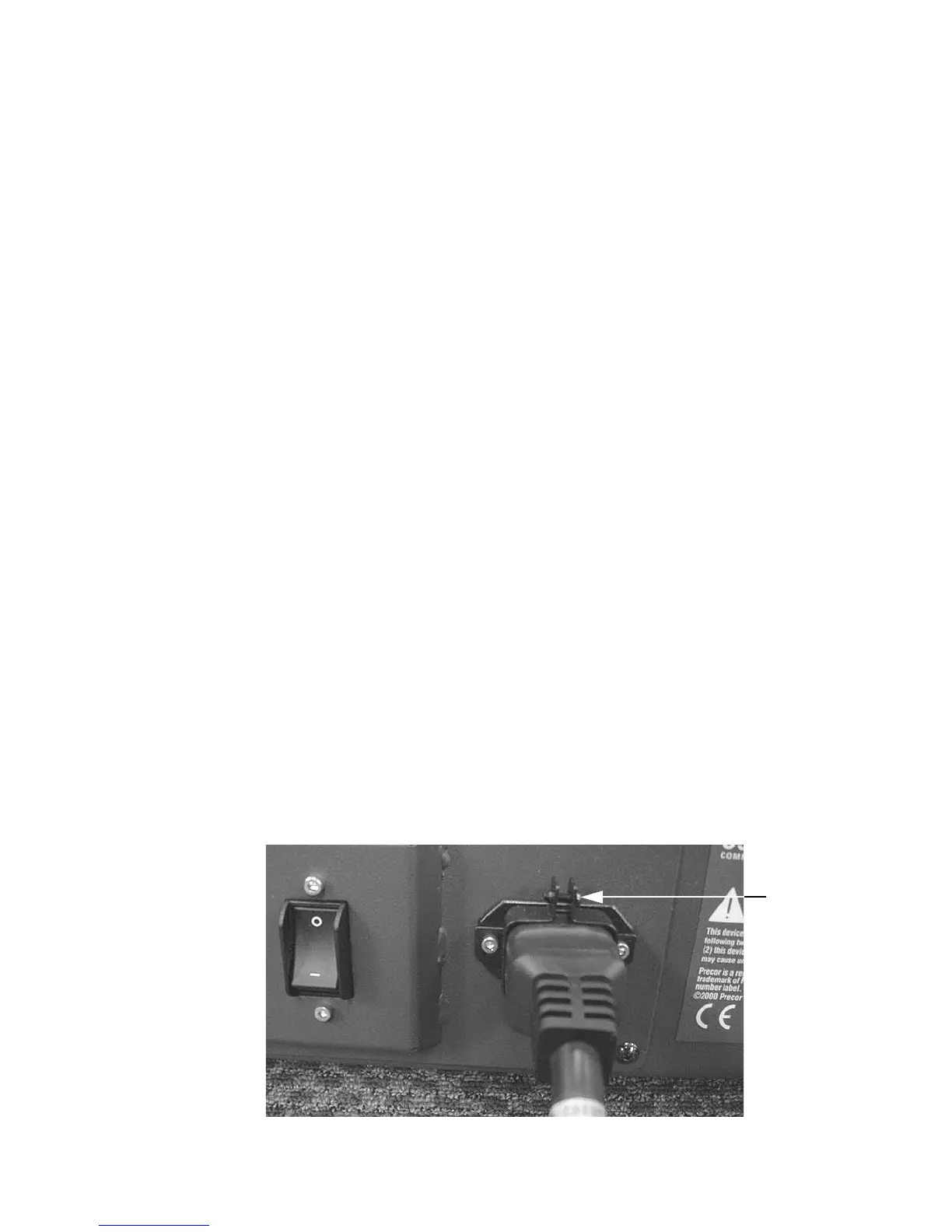

Diagram 6.14 - Detachable Line Cord
