C954, C956 Treadmill
Page 1-50 Page 50
Procedure 6.8 - Replacing the Circuit Breaker
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmills line cord from
the AC outlet.
2. Remove the four screws that fasten the circuit breaker mounting plate to the treadmill. See
Diagram 6.10.

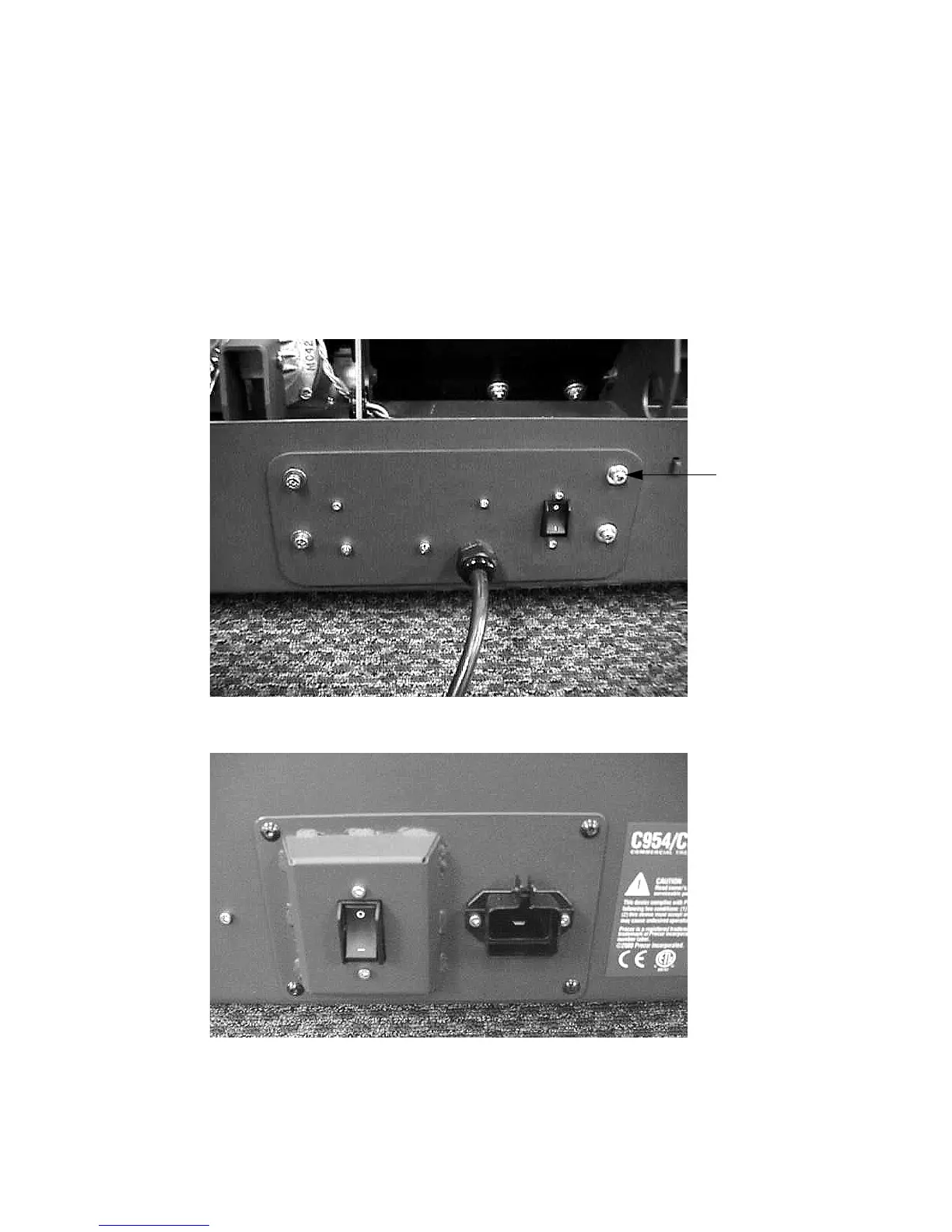

Diagram 6.10 - Circuit Breaker Mounting Panel
(version 1 & 2
)
Diagram 6.11 - Circuit Breaker Mounting Panel
(version 3)
3. Disconnect all of the wiring from the circuit breaker.
To Next Page
