C960 Series Commercial Treadmill
Page 58

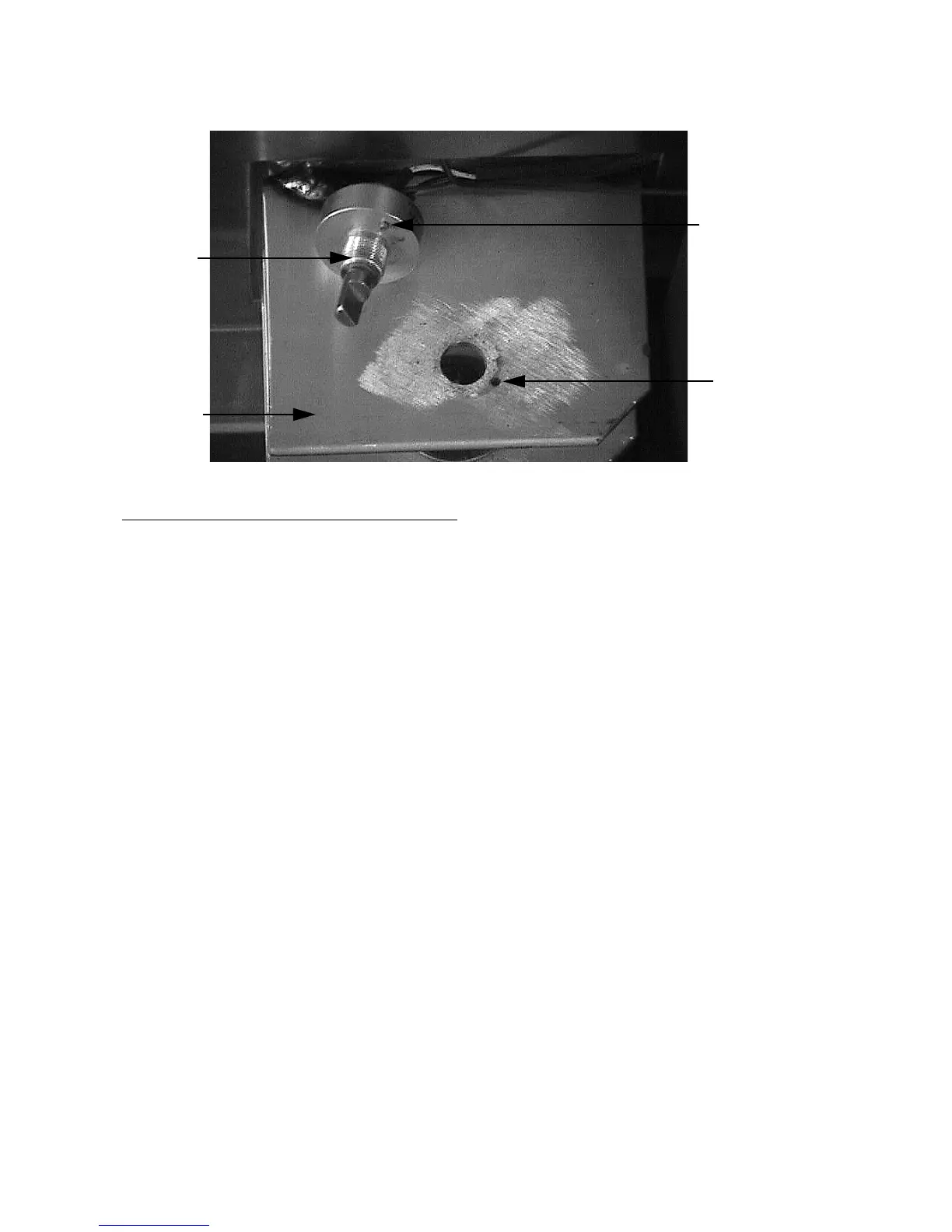

Diagram 6.3C - Lift Potentiometer Mounting
10. Skip this step on C962i and C964i treadmills. Replace the bolt that connects the actuator
block to the lift platform.
11. Replace the lower bolt and nut that secures the lift motor to the lift platform.
12. Check the operation of the treadmill as described in Section Three of this appendix.
Potentiometer
Potentiometer
Bracket
Locator
Tab
Locator
Hole
To Next Page
