C960 Series Commercial Treadmill
Page 60
5. Carefully push the drive motor toward the drive roller.
6. Loosen the bolts threaded through both ends of the drive roller shaft.
7. Remove the socket head screws that secure the top drive roller mounts (see Diagram 6.5).
8. Remove the top roller mounts, then remove the drive belt from the drive roller pulley.
9. Lift the drive roller from the lower roller mounts and slide it from the running belt.
10. Slip the drive belt off the drive motor pulley.
Replacing the Drive Belt
11. Push the drive roller through the running belt. Place the drive belt on the drive roller pulley
and place the drive roller on the lower drive roller mounts.
12. Place the top roller mounts on the lower roller mounts.
Note:
When you place the top roller mounts over the ends of the roller shaft, the bolt heads and
washers must be outside of the clamp formed by the upper and lower roller mounts.
13. Thread the socket head screws through the top roller mounts and into the lower roller
mounts.

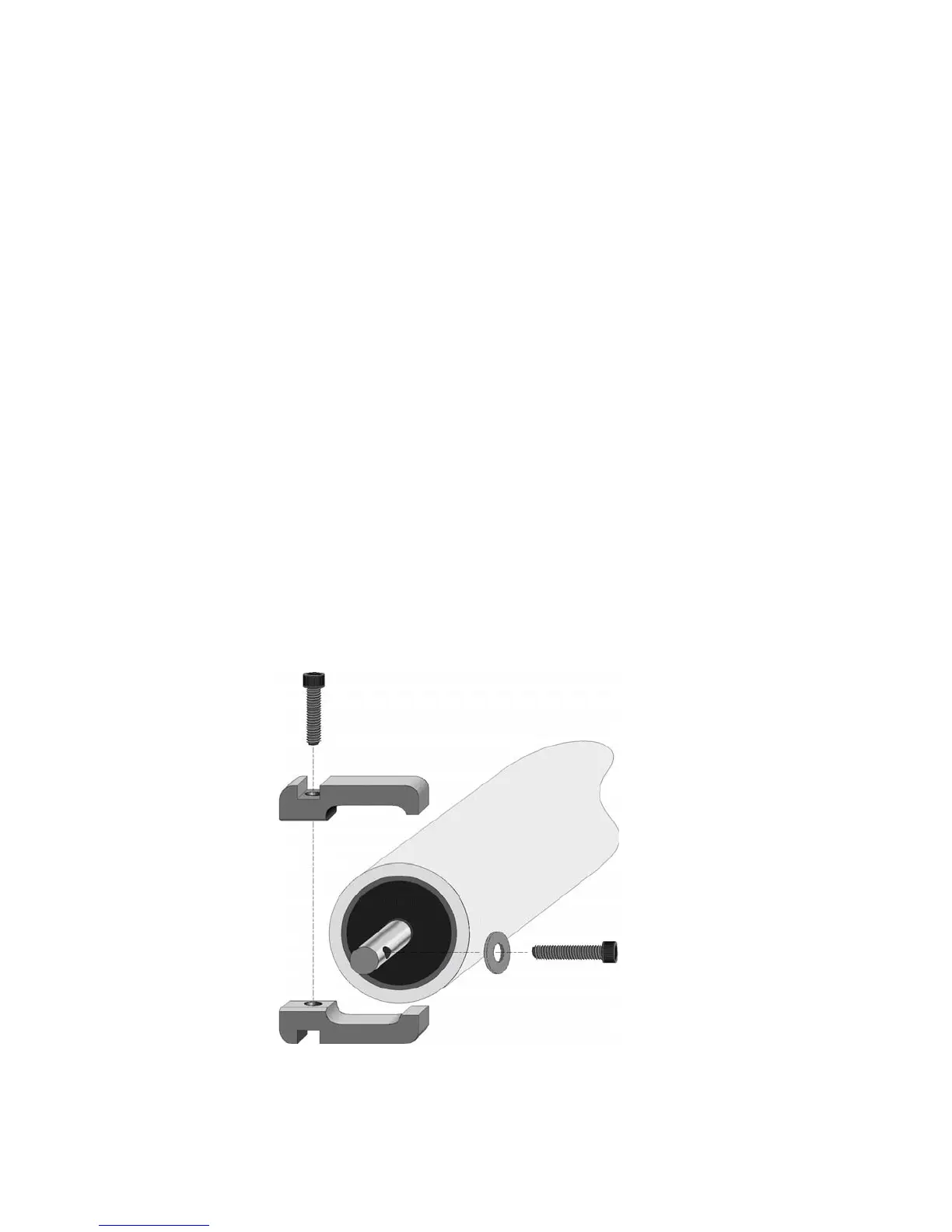

Diagram 6.5 - Roller Mount Assembly
