C960 Series Commercial Treadmill
Page 70
Procedure 6.8 - Replacing the Safety Switch Assembly
The exploded view of the safety switch assembly is shown in Diagram 6.9.
Removing the Safety Switch Cam
1. Remove the three screws that secure the upper display housing to the display housing
mounting plate.
2. Place your right hand on the two right upper display housing mounting tabs. Place your left
hand on the left tabs. Push the right tabs towards the right targa upright and the left tabs
towards the left targa upright as you lift the display housing from the mounting plate.
Support the display housing on the front handrails.
3. If you are removing the safety switch cam as well as the safety limit switch...
THEN... OTHERWISE...
Continue with the next step. Skip to Step 6.

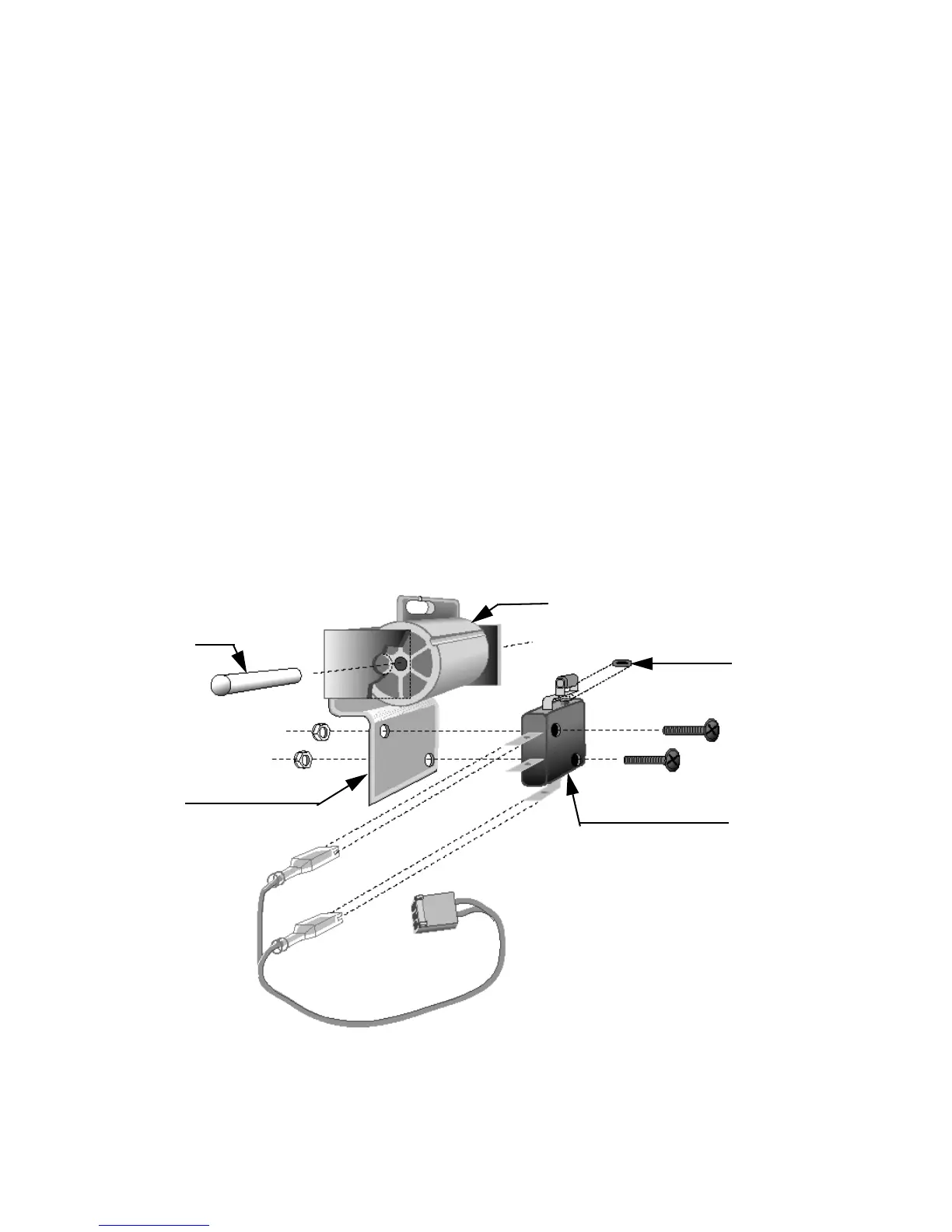

Diagram 6.9 - Safety Switch Assembly
Switch Cam
O-ring
Safety
Switch
Dowel
Switch
Bracket
To Next Page
