C960 Series Commercial Treadmill
Page 71
4. Disconnect the safety cord from the switch cam (see Diagram 6.10).
5. Remove the dowel that secures the switch cam to the switch mounting bracket (see
Diagram 6.10). Set aside the safety switch cam.
Removing the Safety Limit Switch
6. Disconnect the safety switch wiring.
7. Remove the screws and nuts that secure the safety switch to the switch mounting bracket.
8. Remove the small rubber ring positioned between the safety switch actuator and the switch
cam.
Replacing the Safety Switch
9. Position the small rubber ring removed in the previous step between the safety switch
actuator and the switch cam.
10. Position the safety limit switch at its mounting location.

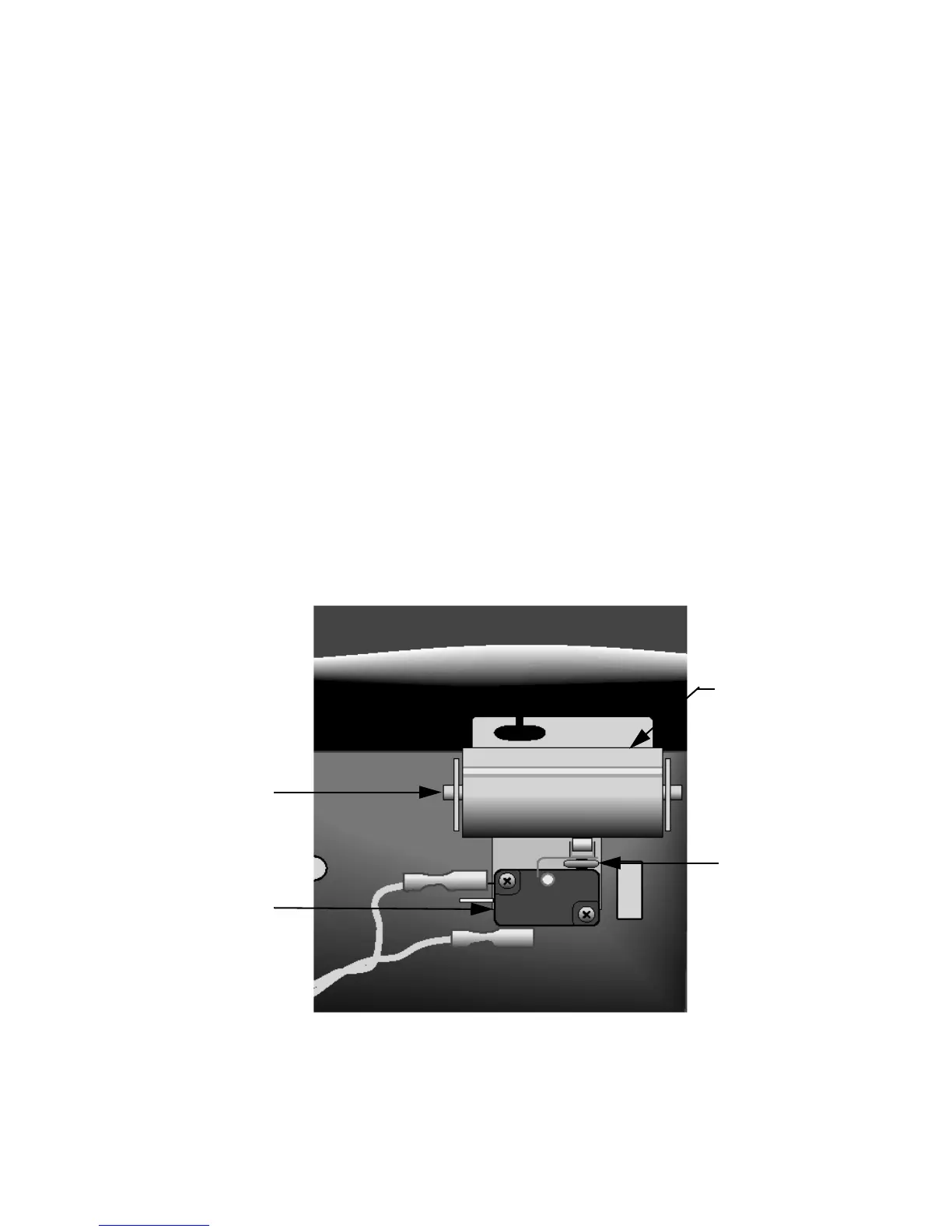

Diagram 6.10 - Safety Switch Cam and Safety Cord Bracket
Switch Cam
O-ring
Dowel
Safety
Switch
To Next Page
