Precor C966i Owner's Manual

page 12
COMMERCIAL PRODUCTS DIVISION
5. Attach the left side upright support. Diagram 5. Take the following steps.
a. Remove the shipping fasteners from the front panel. With the supplied hex
key and a 1/2-inch box end wrench, loosen and remove the two bolts and
nuts on the left side of the front panel. These fasteners hold the front panel in
place during shipping. (The front panel will drop slightly when you remove the
fasteners.) Discard the nuts, but keep the bolts.

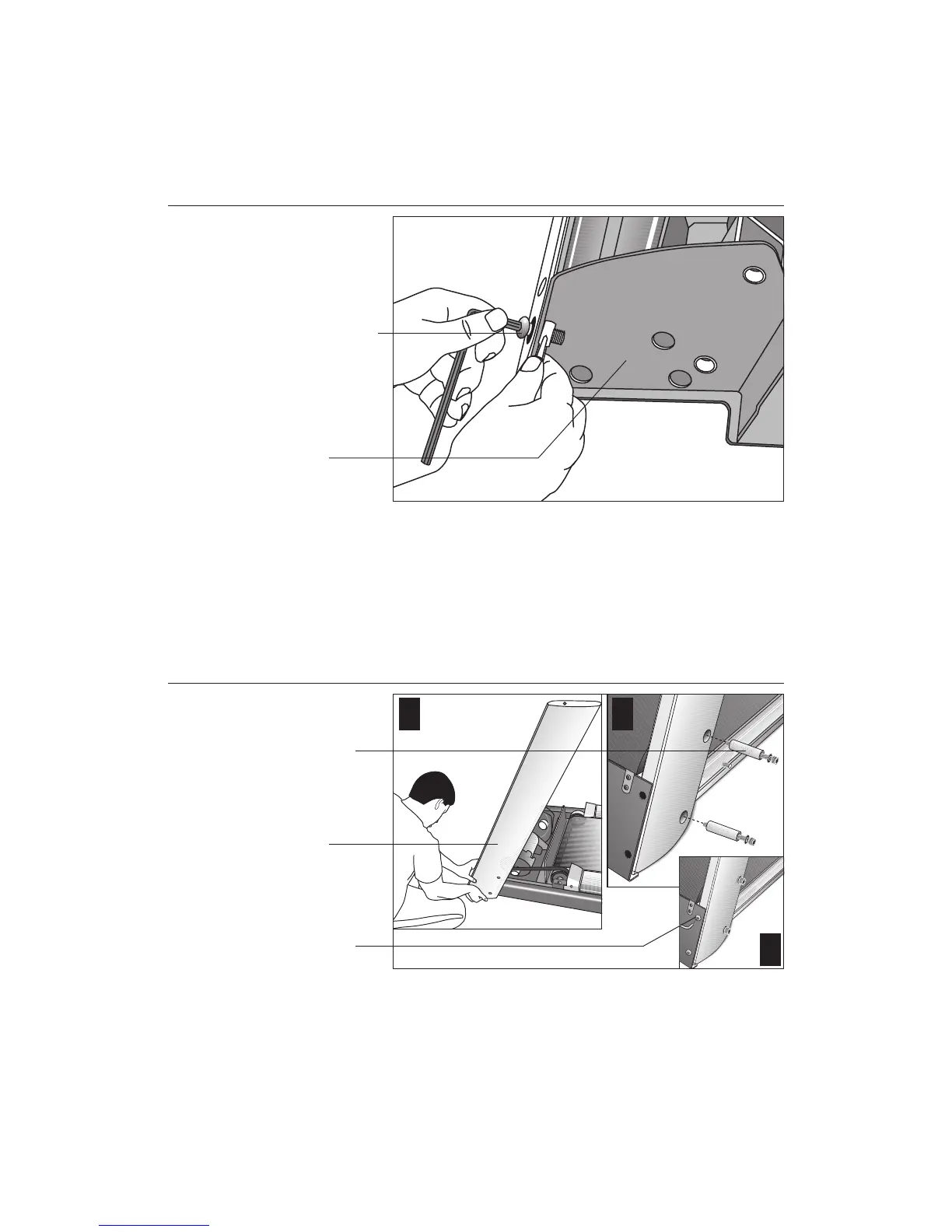

Diagram 5
Remove the
shipping
fasteners from
the left side front
panel.
Shipping
fasteners found
on left and right
sides of the front
panel.
Diagram 6
Secure the left
upright support.
Screws (D),
washers (E),
and barrel
spacers (F)
b. Attach the left upright support by placing it inside the base mount and align-
ing the mounting holes. Obtain two long sockethead screws (D), washers (E)
and barrel spacers (F) from the Hardware kit. Place a washer and barrel
sleeve on each screw and insert the fasteners through the side of the upright
support and into the base mounts. Use the 1/4-inch hex key to secure the
screws, but leave room for adjustments. See Diagram 6, #1 and #2.
c. Remove two stainless steel washers (B) from the Hardware kit and place
a washer on each of the two shipping fasteners. Reinsert the two shipping
fasteners removed in step 5a, and finger tighten. See Diagram 6, #3.
1 2
Left upright
support
Left side
mounting
bracket
3
Shipping
fasteners with
washers (B)

Precor C966i Specifications

Power and Motor

motor power	4.0 hp continuous duty
power requirements 120v	120 v @ 50/60Hz 20 Amps
power requirements 240v	240v @ 50/60Hz 20 Amps

Performance

speed range	0.5 to 16 mph (1 to 26 kph)
incline range	-3% to 15% grade

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
