To Install the Upper and Lower Back Shroud:
1. Position the lower back so that its tabbed end is at the top.
Note: Do not tighten any of the screws until all four screws are
attached.
2. Line up the two screw holes near the upper corners of the lower
back with the corresponding holes in the weight stack frame.
3. Attach the upper corners of the lower back to the weight stack
frame using:
Two ¹⁄₄”- 20 buttonhead screws
4. Attach the lower corners of the lower back using:
Two ¹⁄₄”- 20 buttonhead screws
5. Tighten all four screws using a ⁵₃₂” hex key until snug.
6. Position the upper back so that its tabbed end is at the bottom and
insert its tabs between the tabs at the upper edge of the lower back.

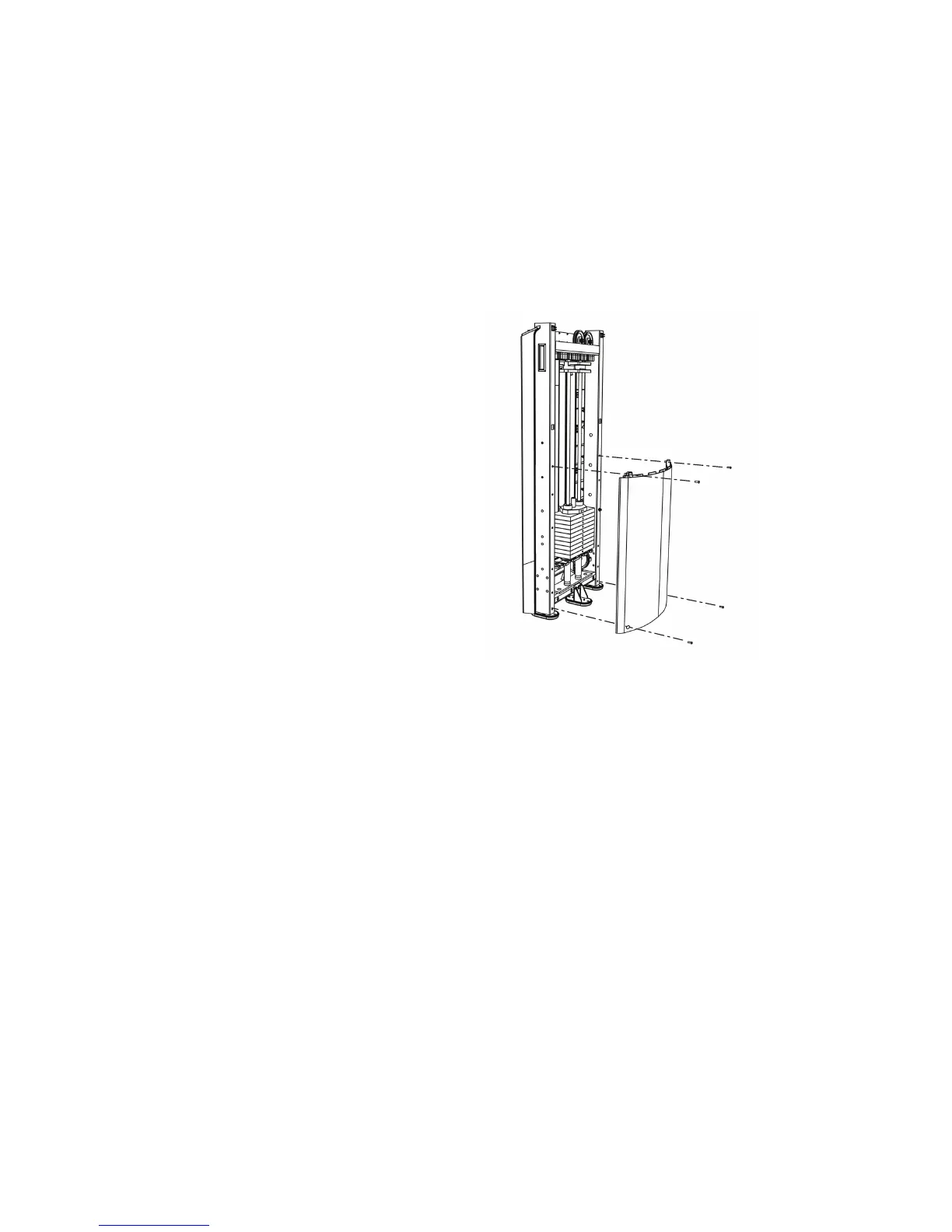

Figure 15: Lower back shroud attachment
Shoulder Press Assembly and Delivery Guide: Assemble the Shroud
10
