COMMERCIAL PRODUCTS DIVISION
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the Hardware kit
and make sure that you have the following items as shown in Diagram 3:
❑ (A) four socket hex screws—upper column assembly
❑ (B) four washers—upper column assembly
❑ (C) four buttonhead hex screws—covers for upright assembly
❑ (D) eight buttonhead hex screws—handlebars
❑ (E) 5/32-inch hex key—screws on bracket covers
❑ (F) 7/32-inch hex key—screws on the handlebars (Note: A hex torque wrench
is also required, although it isn’t supplied.)
❑ (G) 1/4-inch hex key— upper column assembly (Note: A hex torque wrench
is also required, although it isn’t supplied.)
❑ (H) Split rubber grommet and two bracket covers (not shown in Diagram 3)

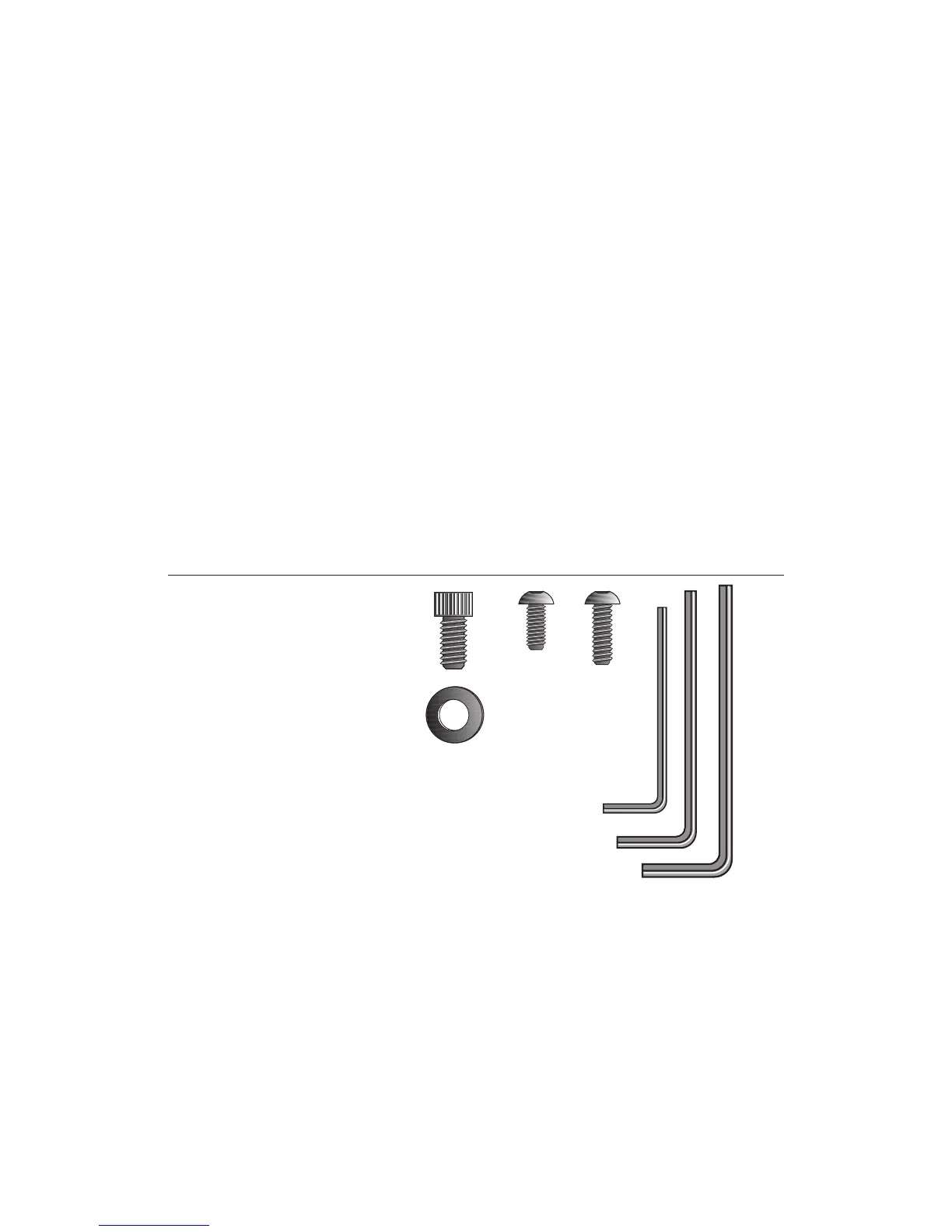

Diagram 3
EFX556
Hardware kit
C
E
If any items are missing, contact your dealer. Refer to
Obtaining Service
on page 7.
Note: After assembling the EFX, be sure to store the hex keys in a secure place.
The tools are used for maintenance procedures that are described in this manual.
ACQUIRE THE APPROPRIATE TOOLS
Obtain the following tools
before
assembling the EFX.
❑ Wire cutter
❑ SAE Standard socket set with a ratchet or 8-inch adjustable wrench
❑ Hex torque wrench
F
A
B
G
D
