12. Place two external star washers (E) onto two of the upper handrail console screws (B) and
align the upper handrail clamp with the mounting holes on the lift column. See Diagram 4.
13. Insert the screws (B) through the handrail clamp and into the lift column. Tighten the screws
securely with the hex key (F) provided.
14. Carefully route the ribbon cable through the slot on the left-hand side of the handrail clamp.
Note: Right and left are determined while standing to the rear of the treadmill facing toward
the hood.
15. If your hands are dirty, wash your hands before continuing to the next step. This will help
keep the electronic console display clean.
Plug
connector
into lower
board
Diagram 3
Ribbon cable receptacle
Flanged nuts (A)
Base plate
Motor chassis
Cross beam
Install upper
handrail
clamp
Diagram 4
Handrail clamp
Ribbon cable
Lift column

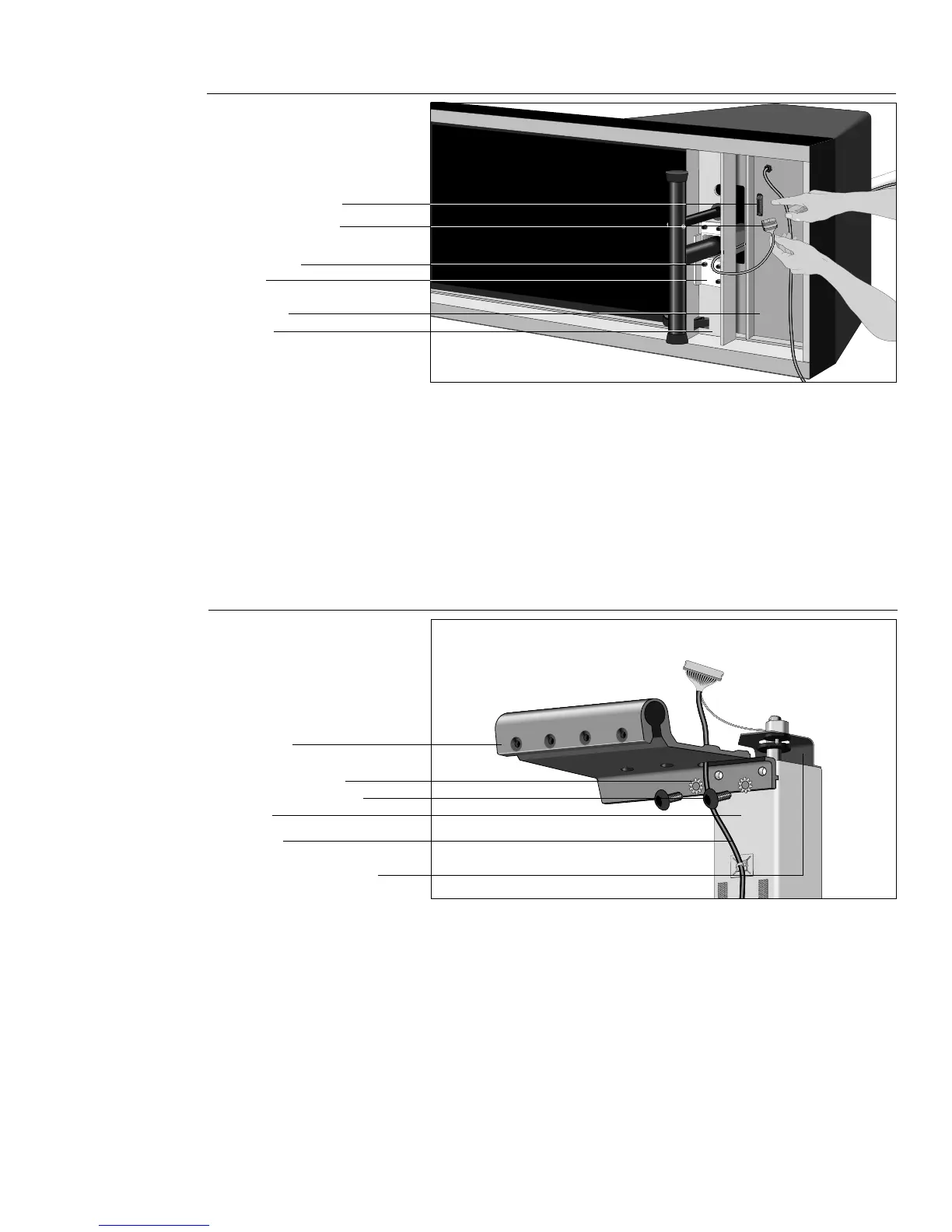

9. Route the ribbon cable as shown in Diagram 3, so that you have easy access to the receptacle
on the motor chassis.
10. Align the tab on the ribbon cable connector with its counterpart located on the receptacle in
the motor chassis. Plug the connector into the receptacle. See Diagram 3. The plastic flanges
on the receptacle should clip onto the connector when you plug it in. Since the connector is
designed to engage in one direction only, do not force the connector into the receptacle.
11. Have your assistants help you return the treadmill to an upright position, so that the base is
flat on the floor.
Incline crank shaft (M9.1 only)
Ribbon cable connector
External star washers (E)
Handrail console screws (B)
