16. Hold the electronic console over the handrail clamp to attach the ribbon cable connector into
its receptacle. On the M9.1, make sure that you hold the potentiometer cable away from the
receptacle as you push the connector into place. See Diagram 5. Align the tab on the ribbon
cable connector with its counterpart located on the receptacle and plug the connector into the
receptacle using your fingers as shown in Diagram 5. The plastic flanges on the receptacle
should clip onto the connector when you plug it in. The connector is designed to engage in
one direction only. Do not force the connection.
If, at a later date, you need to disengage the connector, push the flanges off of the connector
and use your fingers to pull the connector away from its receptacle.
INCLINE
CAUTION
Keep hands and clothing aw
bed, belt and rear roller when tread
is in operation. As with any power
drivern equipment, DO NOT allow
children and persons unfamiliar with
operation on or near this treadmill.
Always straddle belt when starting
the treadmill. Step onto belt only at
speeds 1mph and slower.

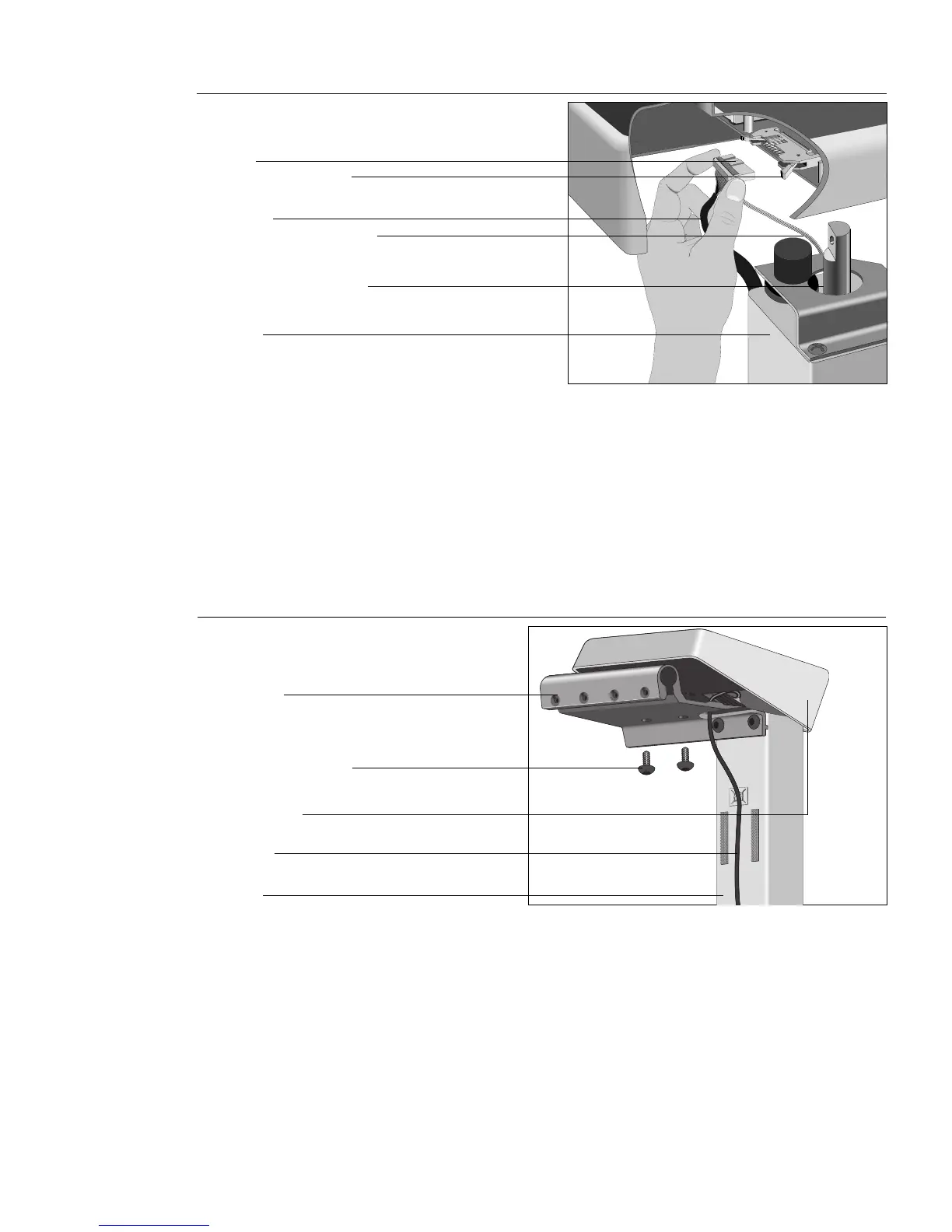

Diagram 5 Attach cable to display
Connector
Plastic flange on receptacle
Ribbon cable
Potentiometer cable (M9.1 only)
Diagram 6
Handrail clamp
Electronic console
Ribbon cable
Lift column
17. Align the electronic console mounting holes with the handrail clamp. Mount the electronic
console onto the handrail clamp by inserting the two remaining handrail console screws (B).
See Diagram 6. Insert the screws through the base of the handrail clamp and into the
electronic console. Tighten the screws securely with the hex key (F) provided.
18. Carefully push the excess cable up inside the handrail console compartment. Check to be sure
the cable forms a smooth loop. If the cable is pinched or damaged by improper installation, it
will not be covered by the limited warranty.
Note: M9.2s owners skip to step 20.
Incline crank shaft (M9.1 only)
Lift column
Handrail clamp not shown
Handrail console screws (B)
Attach electronic console to
handrail clamp

Precor M9.1 Specifications

Power

motor power	1.5 hp continuous duty 90V DC
power requirements	50/60Hz, 120v AC single phase

Performance

speed range	0.5 to 9 mph (0.8 to 14.48 kph)
incline range	0 to 10% grade

Weight and Dimensions

length	67.75 inches (172 cm)
width	26.75 inches (68 cm)
height	43.5 inches (110.5 cm)
weight	192 lbs (87 kg)
